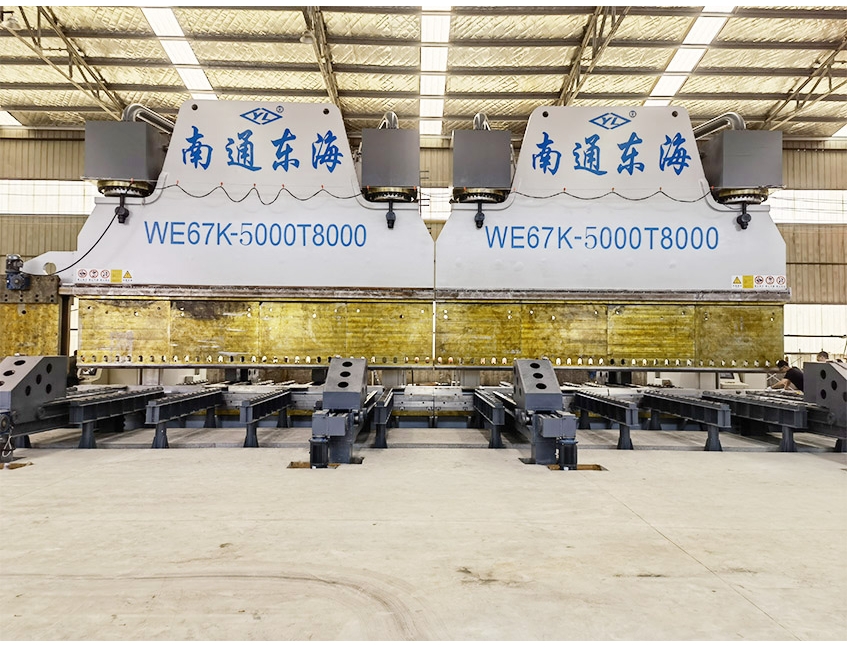

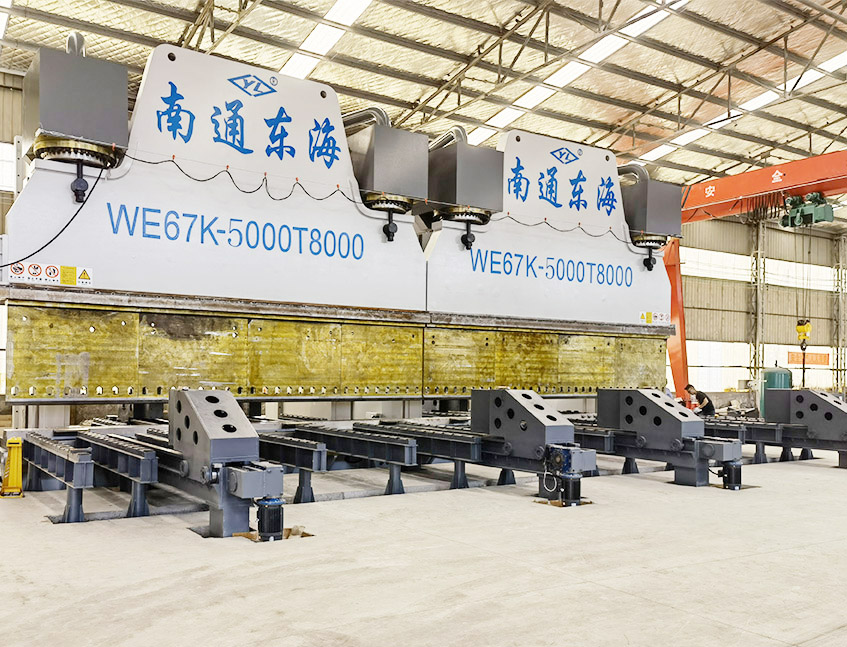

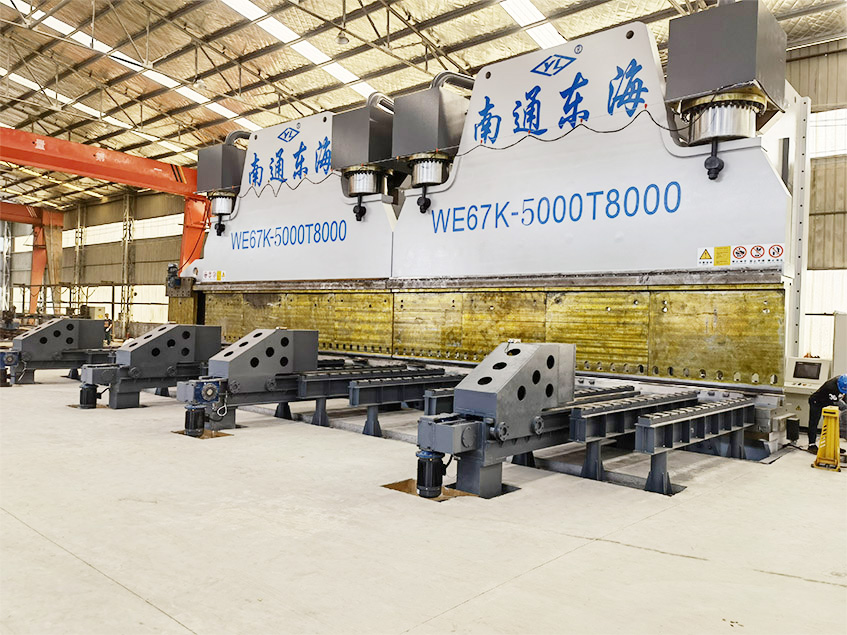

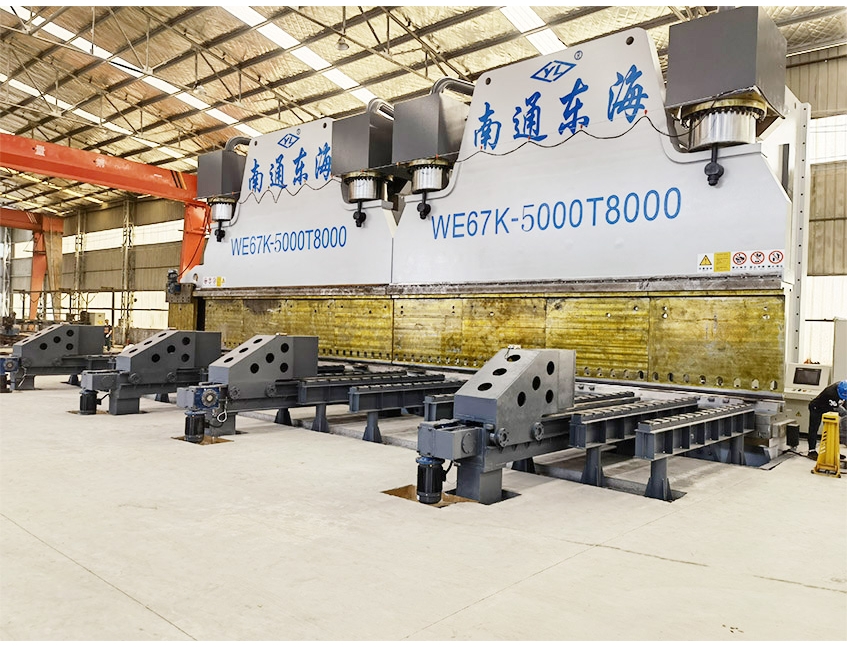

2xWE67K-5000/8000 CNC Press Brake in Tandem
CNC Press Brake in Tandem adopts two or three Electric-hydraulic synchronous press brakes to work together. CNC press brakes in tandem has all of the advantages of the WE67K CNC electric-hydraulic synchronous press brake, which are designed to bend the super length work piece, such as the conical lighting pole, pyramid lighting pole, auto beam, big length constructive parts, etc
Parameters:
Nominal force |
KN |
2x50000 |
|
Length of working table |
mm |
2x8000 |
|
Accuracy:
Y1.Y2.Y3.Y4 axis re-position: ≤+0.05mm
Y1.Y2.Y3.Y4axis position: ≤+0.03mm
X axis re-position: ≤+0.02mm
X axis position: ≤+ 0.05mm
Test bending angle: + 1°/3000 mm
Test straightness: ±0.75/1000 mm
Features
--World class dedicated controller from Delem
--Two press brake CNC controlled to work synchronous
--Y1-Y2-Y3-Y4 axis CNC control
--Close loop proportional hydraulics for beam synchronization.

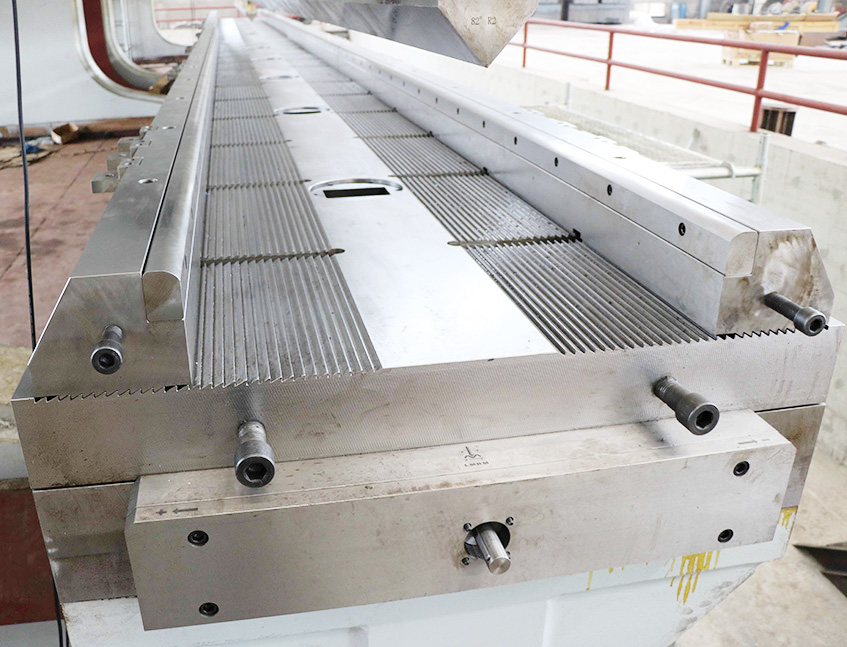

-- Opening width adjustable lower die,
--Fixed punching handle + variable punching head
--Highly Precise proportional valve to control accurate beam movement.
--The power pack is supplied by Bosch –Germany.
--Back gauge consist of hardened & ground ball screw,
--liner motion bearings and AC servo drive for accurate position up to 0.05 mm

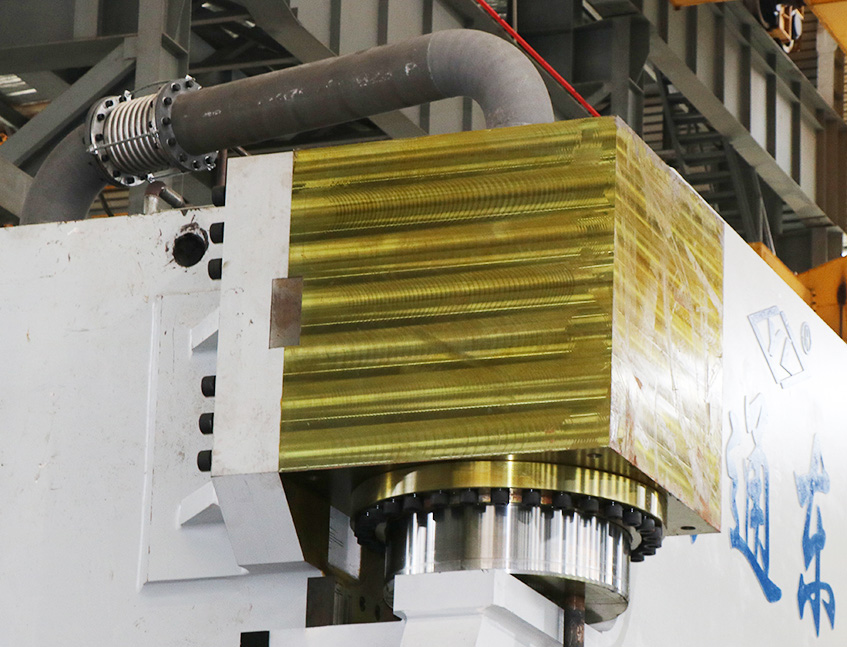

--Cylinder
--Throat depth

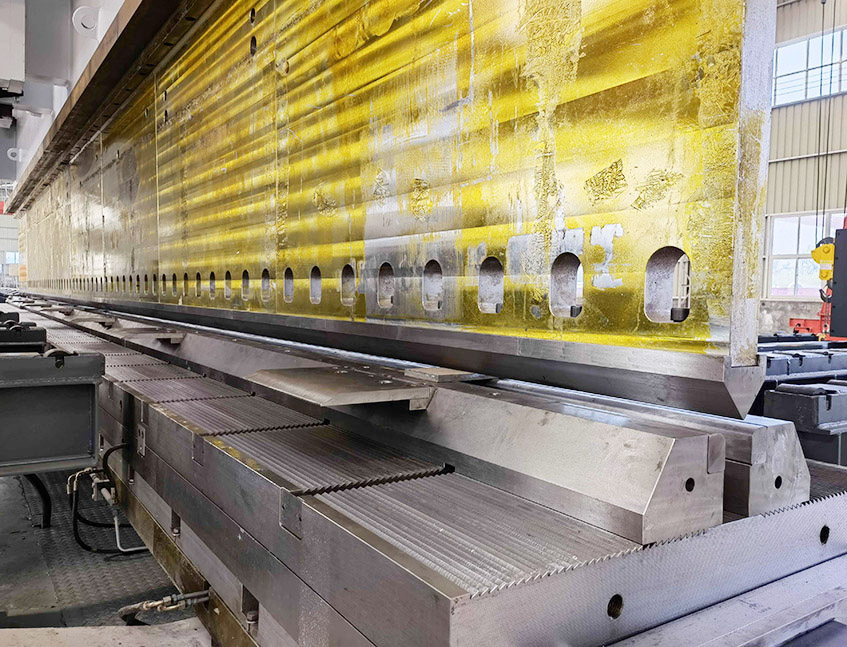

--Punch & die

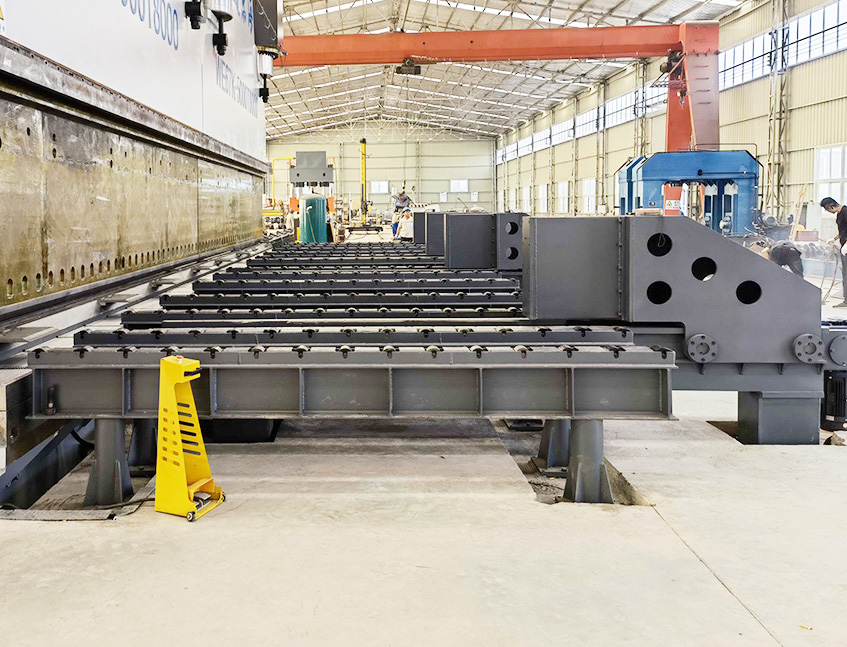

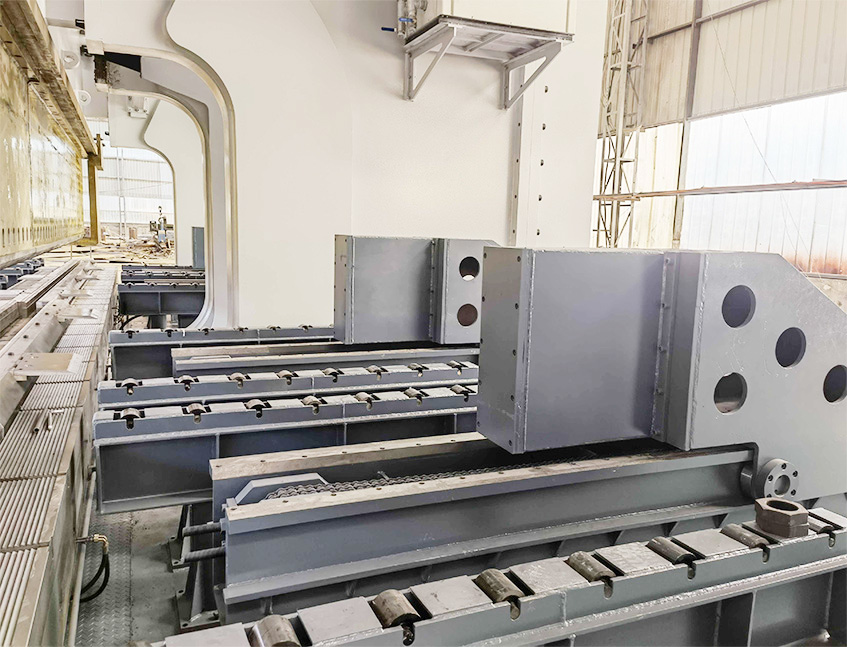

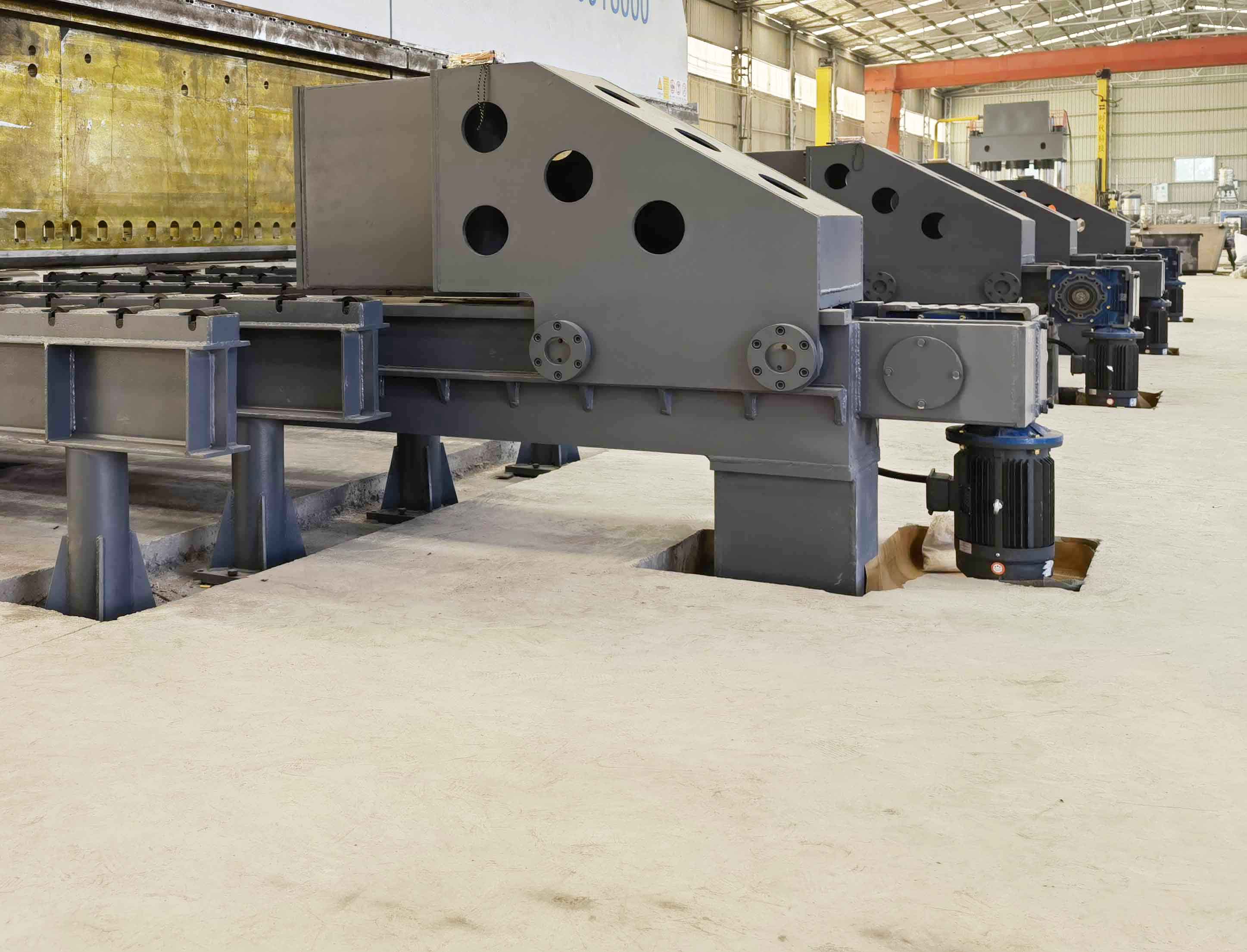

--Feeding table & back pushed
Components
1 |
Main electric components |
SIEMENS & Schneider or OMRON |
2 |
Main motor |
SIEMENS BEIDE |
3 |
Oil pump |
SUNNY(under license of SUNNY Hydraulic .INC (U.S.A) |
4 |
Valve |
BOSCH-REXROTh |
5 |
Seal |
NOK |
6 |
CNC controller |
DELEM DA-66T |
7 |
Touch screen |
DELEM |
8 |
Synchronous control |
DELEM |
9 |
Light encoder |
FAGOR |
10 |
Linder guider |
ABBA |
11 |
Ball screw |
ABBA |
12 |
Servo driver |
ESTUN |
