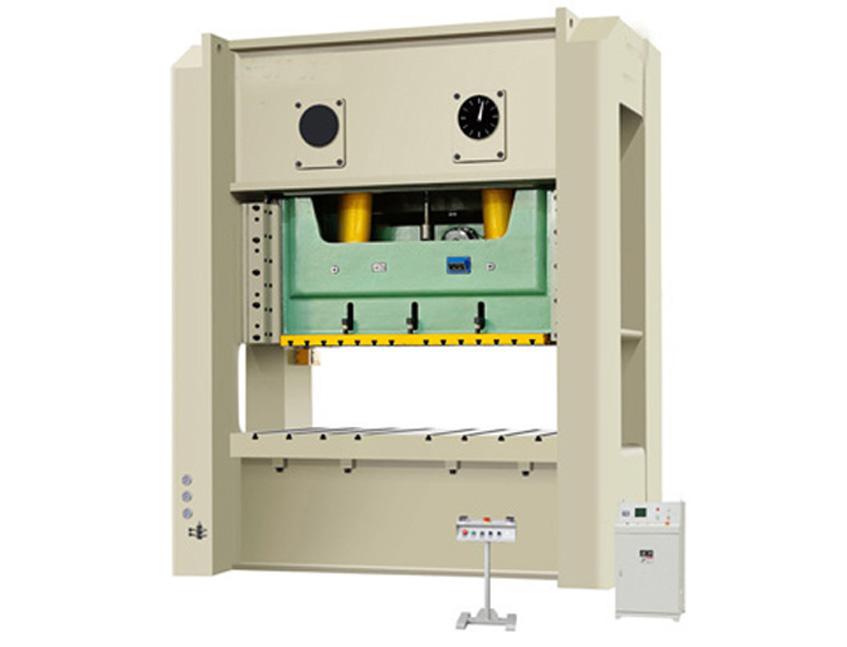

JB36 Series H-frame Double–Crank Press

Character
H-type whole steel-welded frame
Suitable for single and multi-station stamping
This frame presses spare has a steel welded body with the features of good rigidity, transmission gear gumming lubrication, low noise and stable transmission；The functions of Hydraulic overload protection device and automatic emergency stop guarante the safety of press machine and mould; The number of frame double crank presses is adjustable and applicable to different parts of the job requirements.

Main Structure Features

Alloyed steel double crank with reverse running, countersct the side force

High off-set load capability in L-R direction

High accuracy, reaches JIS-Grade1

Straight side structure and high rigidity, steel welded frame

High precision, 8-side long guide rail

Pneumatic clutch-brake unite

Imported safety dual-solenoid valve for clutch

High sensitive HOLP

500T (below 500) Automatic grease lubrication system, 500T (above) Automatic oil cycle lubrication system

FDI (frequency drive inveter)

PLC, encoder, cam controller

Optional

Components: Output shaft, air cushion, slide knockout device, automatic feeder, etc

JB36 Series H-frame Double–Crank Press

Model			JB36-110		JB36-160		JB36-200		JB36-250		JB36-315		JB36-400		JB36-500			JB36-630	JB36-800
			L	S	L	S	L	S	L	S	L	S	L	S	L		S
Nominal pressure		KN	1100		1600		2000		2500		3150		4000		5000			6300	8000
Nominal pressure stroke		mm	5	3	6	3	7	4	7	4	8	5	8	5	10	6		10	12
Slide stroke		mm	180	110	200	130	230	150	250	180	250	180	250	180	280	180		300	300
Strokes		S.P.M	35-65	45-80	30-50	35-65	25-45	30-55	20-40	30-50	20-35	25-45	20-30	25-45	18-25	20-30		15-25	14-18
Max. die set height		mm	400	435	450	485	500	540	550	585	550	585	550	585	580	630		600	700
Die height adjustment		mm	90		100		110		120		120		120		120			120	150
Distance between uprights		mm	1750		1970		2340		2600		2860		2860		2900			3100	3300
Table size	L-R	mm	1730		1930		2320		2550		2800		2800		2850			3000	2700
	F-B	mm	680		760		840		920		950		1000		1200			1400	1200
Bottom size of slide	L-R	mm	1360		1500		1850		2100		2300		2300		2400			2600	3200
	F-B	mm	520		580		650		700		750		800		850			1100	1500
L-side openings	Height、	mm	710		700		700		700		830		830		780			700	700
	F-B	mm	600		750		800		900		1000		1000		1000			1100	1100
L-dimensions	L-R	mm	2330		2770		3160		3600		3810		3950		4700			4960	4200
	F-B	mm	2060		2315		2700		2820		2950		3040		3300			3600	3900
	Height	mm	3530		4200		4260		4800		5030		5100		5870			6100	6200
Main Motor power		KW	15		22		22		30		37		37		45			55	75
Weight		Kg	17000		22000		31000		42500		52000		55000		70000			85000	100000
