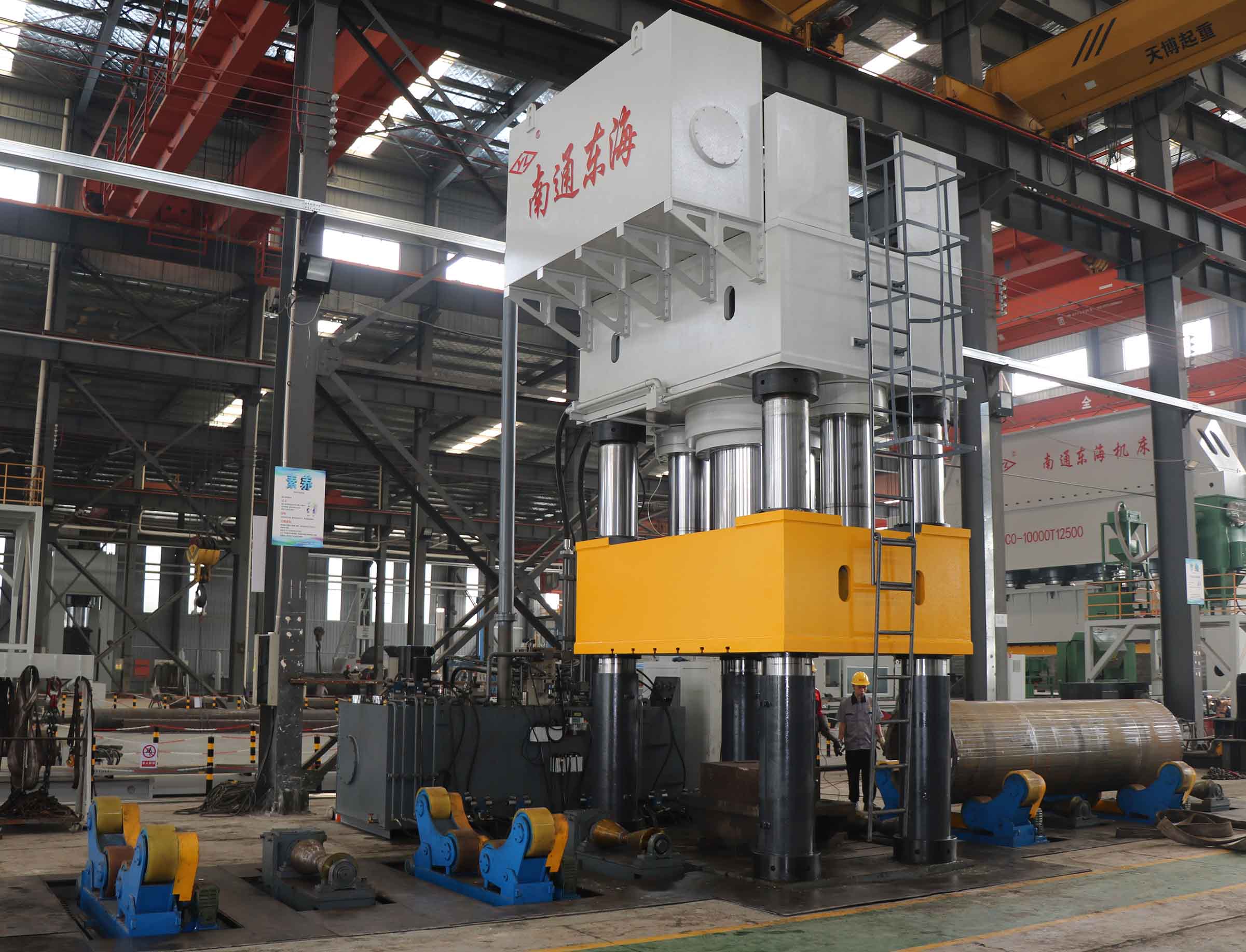

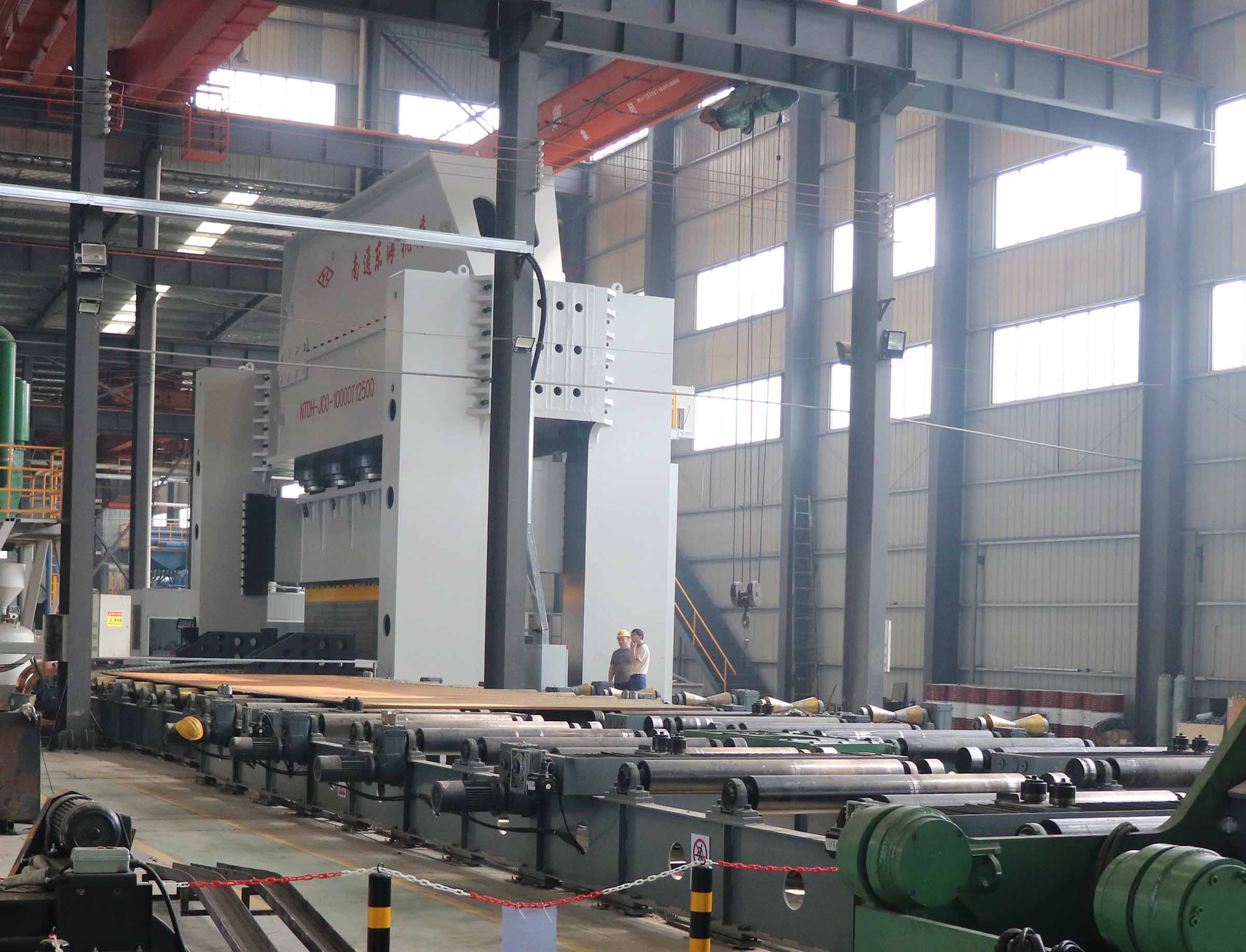

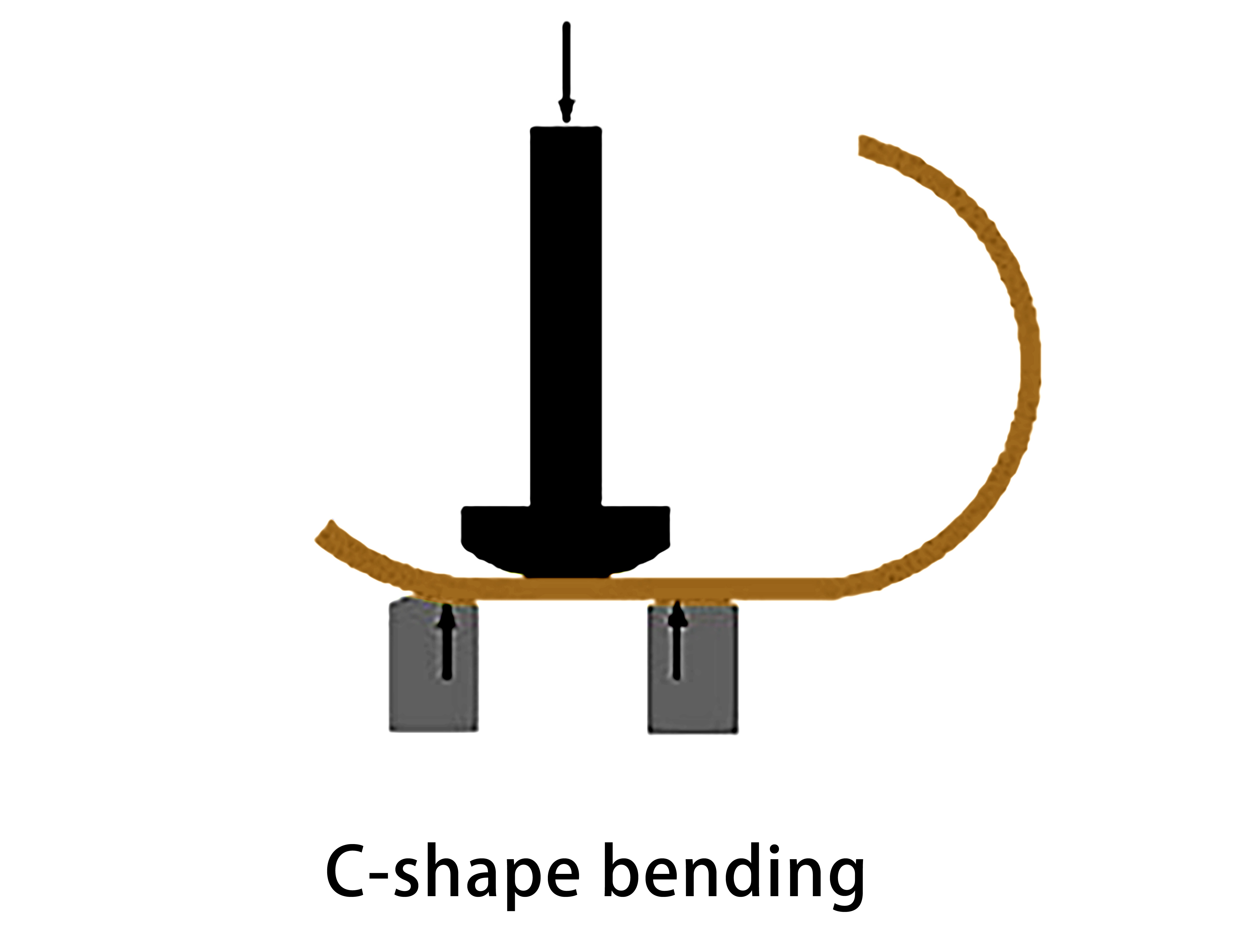

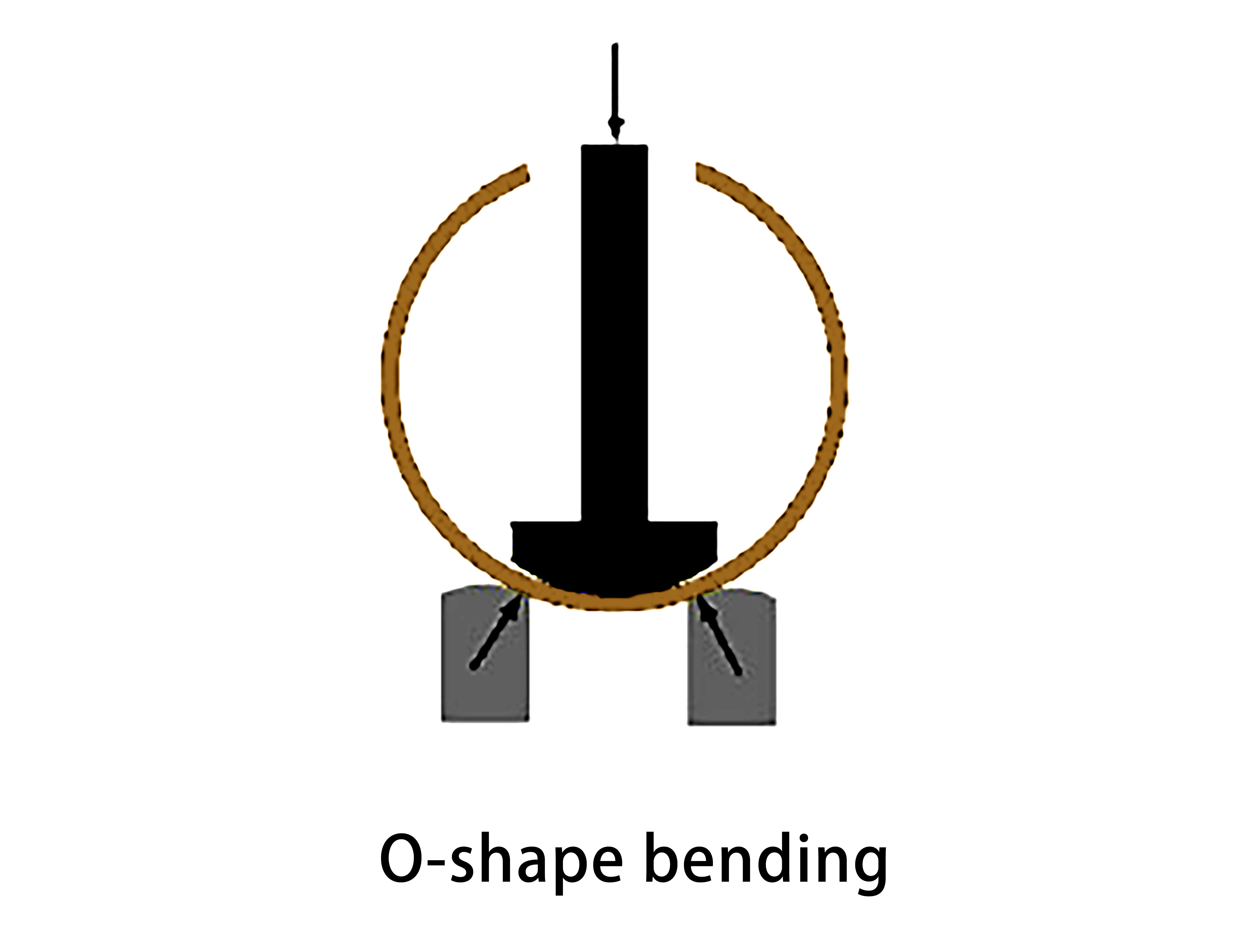

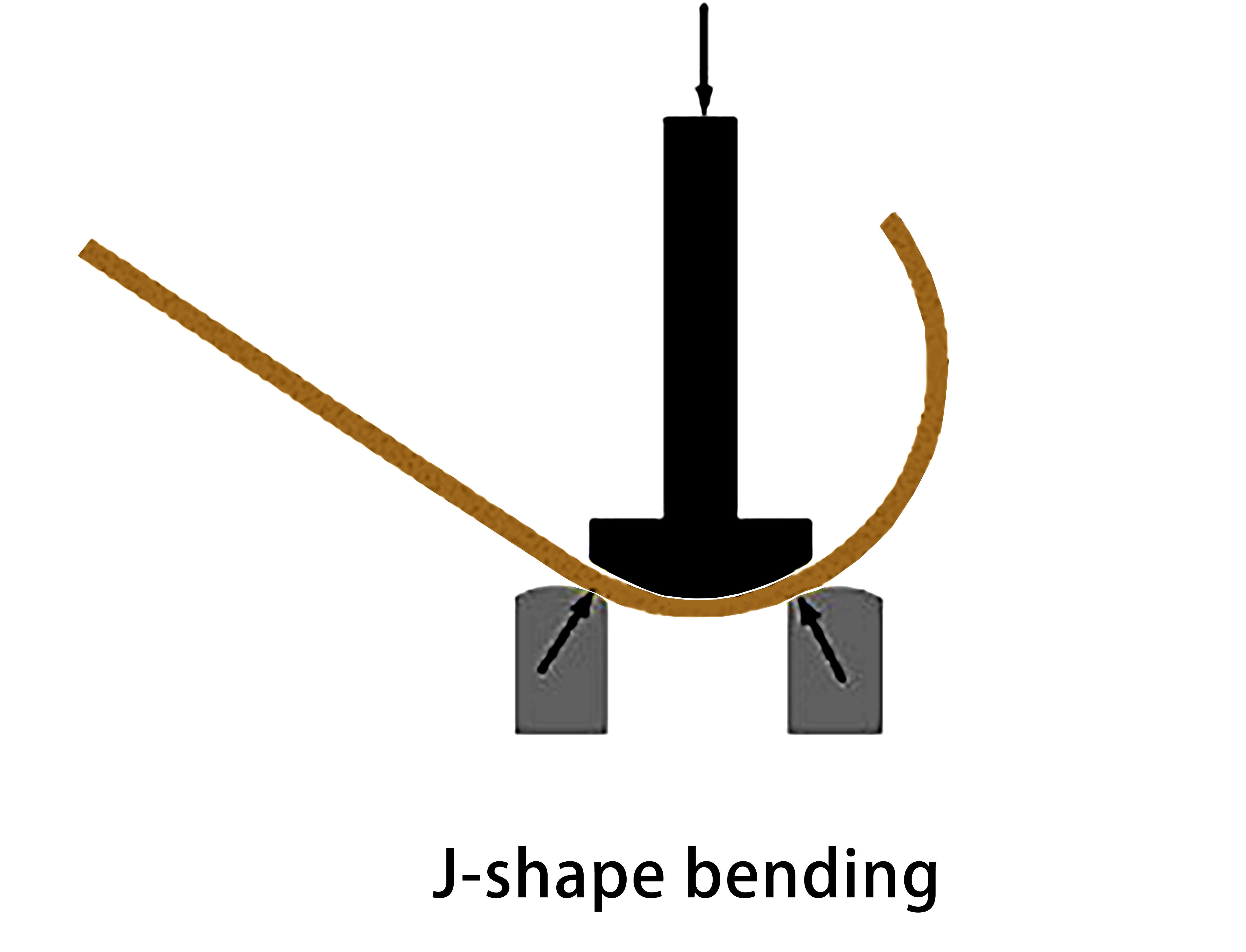

JCO-10000T12500 Pipe Making Machine

pipe making machine

Parameters



Specification

Parameter



Remark

1

Rated force

100000

KN



2

Length of table

12500

mm



3

Distance between columns

12800

mm



4

Bending length

8000-12200

mm



5

Max.daylight

2580

mm

Max.Φ1800

6

Side throat depth

2000

mm



7

Beam stroke length

500

mm



8

Max. V of die

800

mm



9

Number of cylinders

6

piece



11

Power of servo motor

6×90

KW

INNVOICE

12

Capacity of pump

6×160

L/min



13

Max. pressure of hydraulic

25.5

MP



14

Beam

speed

Approaching

60

mm/s



Bending

6

mm/s



Returning

60

mm/s



15

Overall

dimension

Length

16200

mm



Width

5800

mm

Without feeder

Height

10260

mm

Overground

5800



Underground


Features

▲ highly productive, accurate to make the small diameter but thick wall pipe

▲close loop proportional hydraulics for beam synchronization

▲REXROTH highly precise proportional valve to control accurate beam movement

▲ accurate & fine beam position control by micro limit switch.

▲CNC controlled front feeder/back gauge

▲motorized side discharger

▲moviable lower die to bend the end of the plate

▲variable-V die to suit to different thickness plate

▲FAGOR lineal scale

▲servo motor

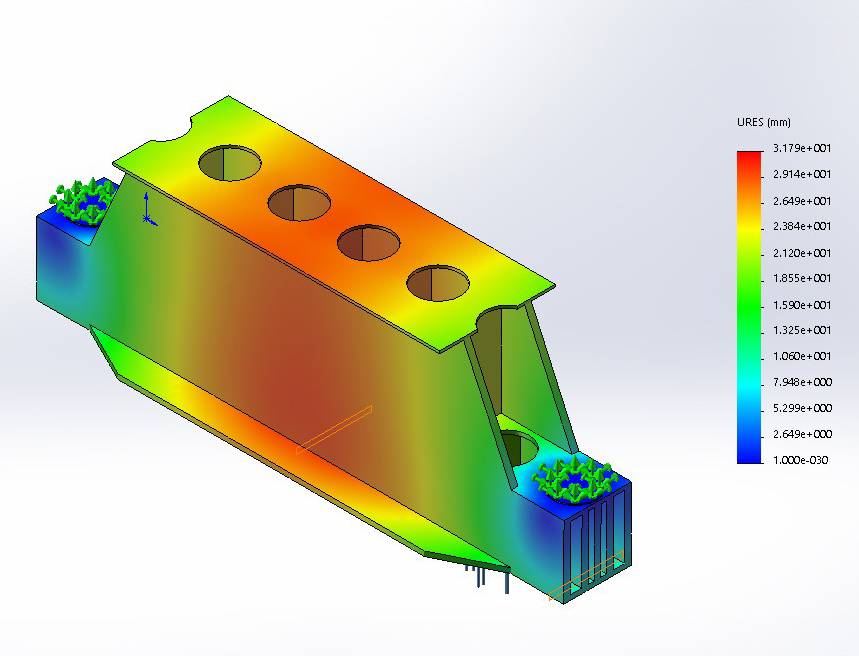

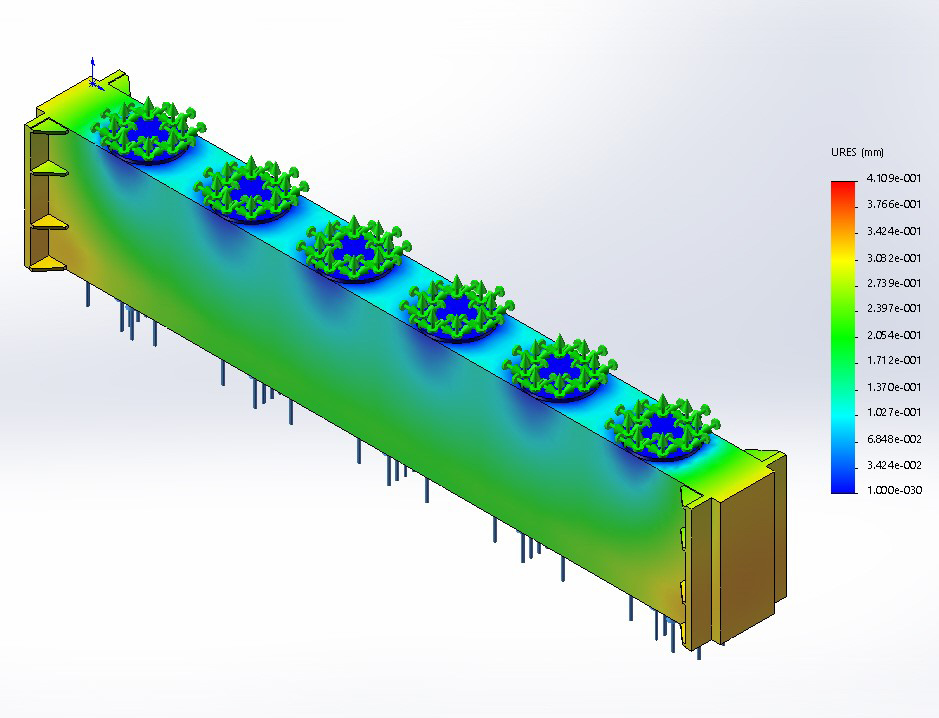

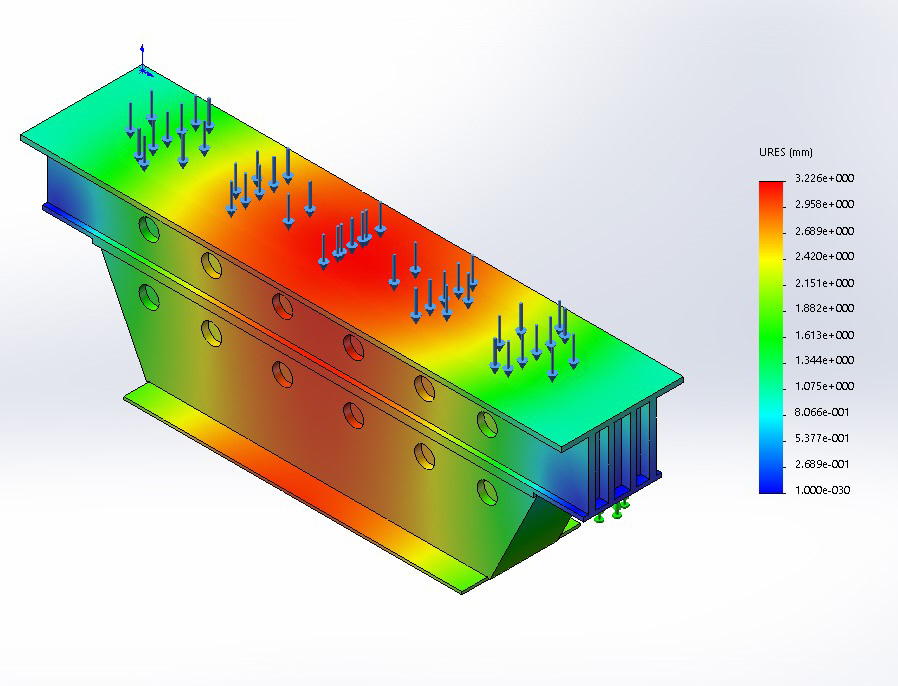

Main frame

colum cross beam

work table beam

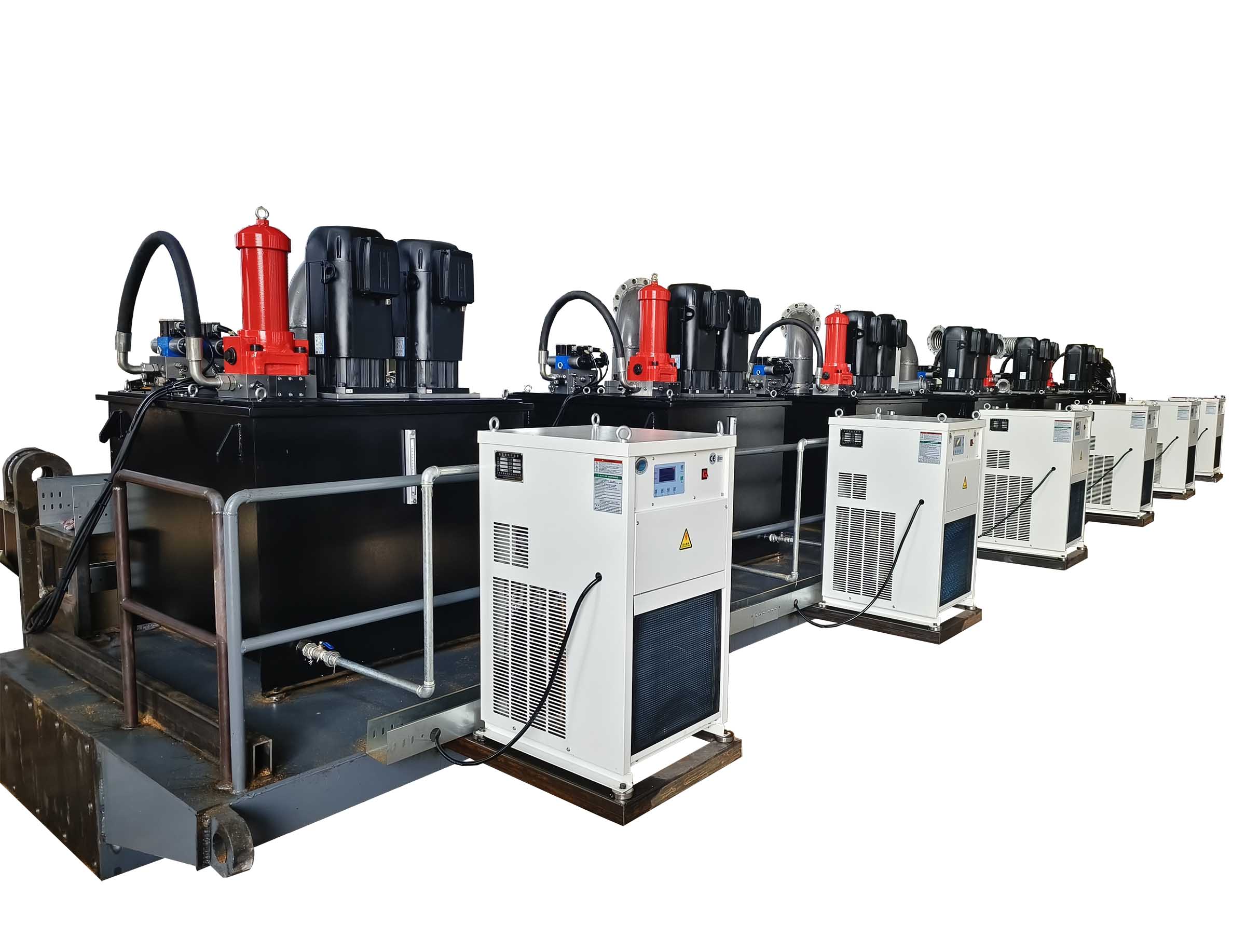

--Hydraulic system

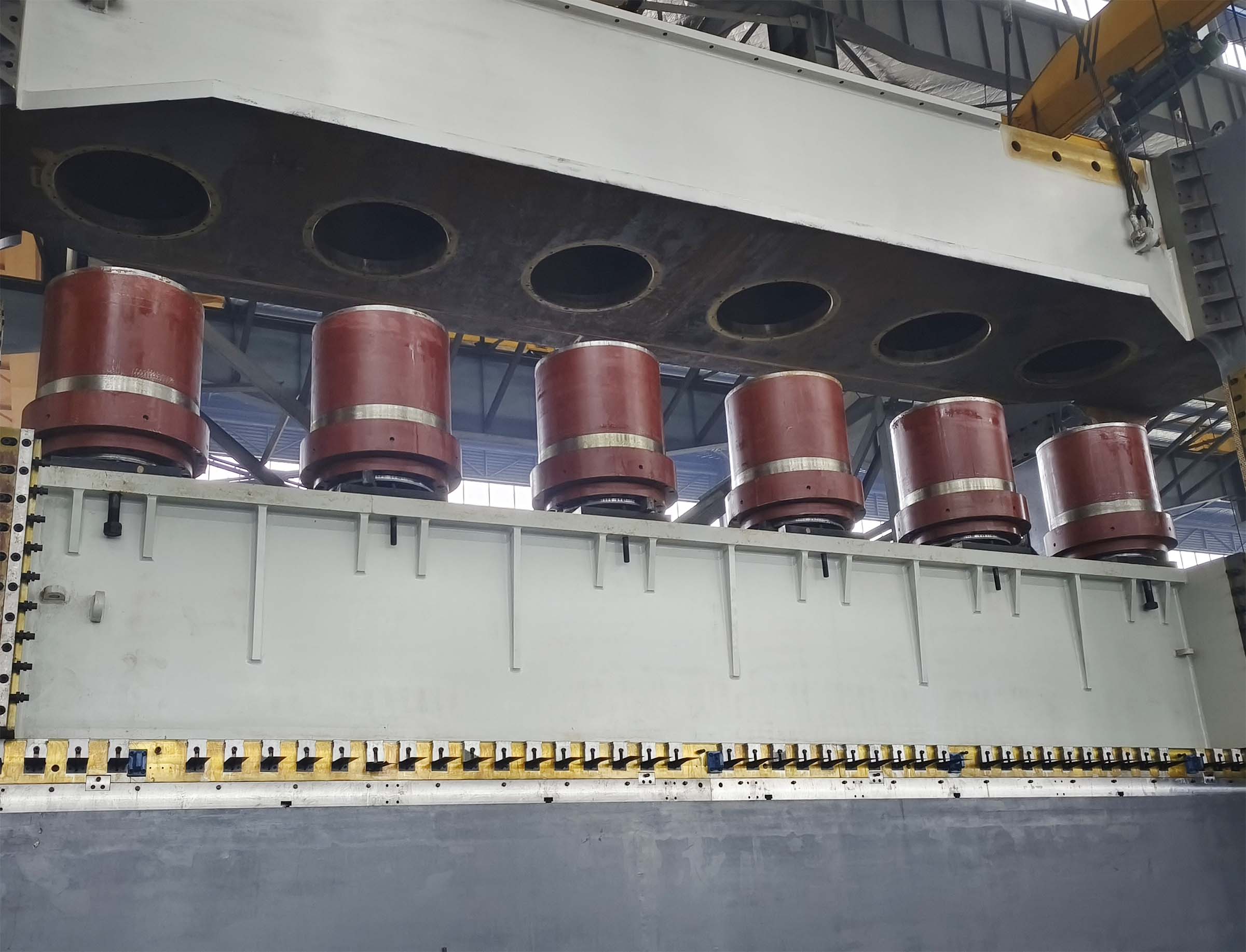

hydraulic system                                                 Cylinder

cylinder

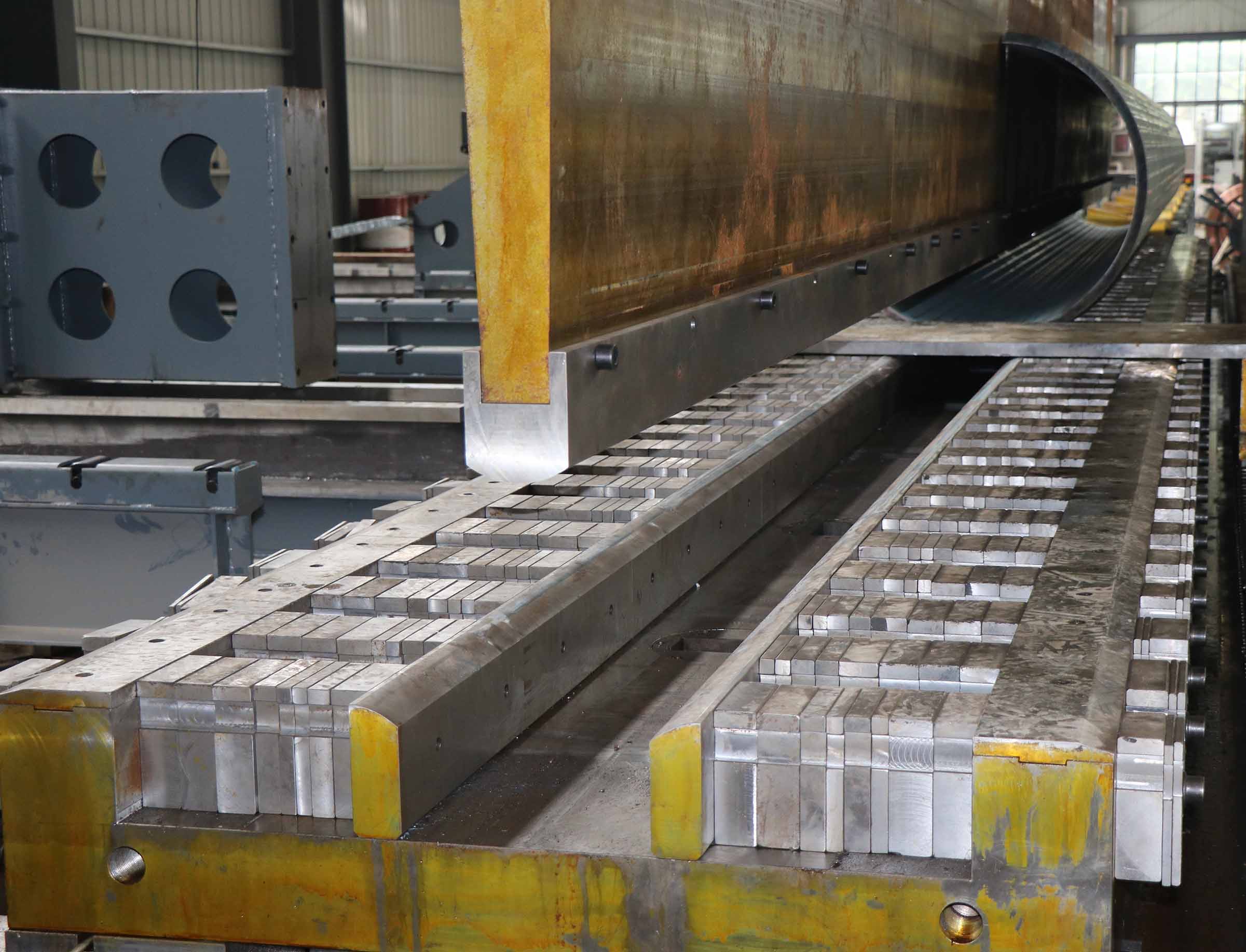

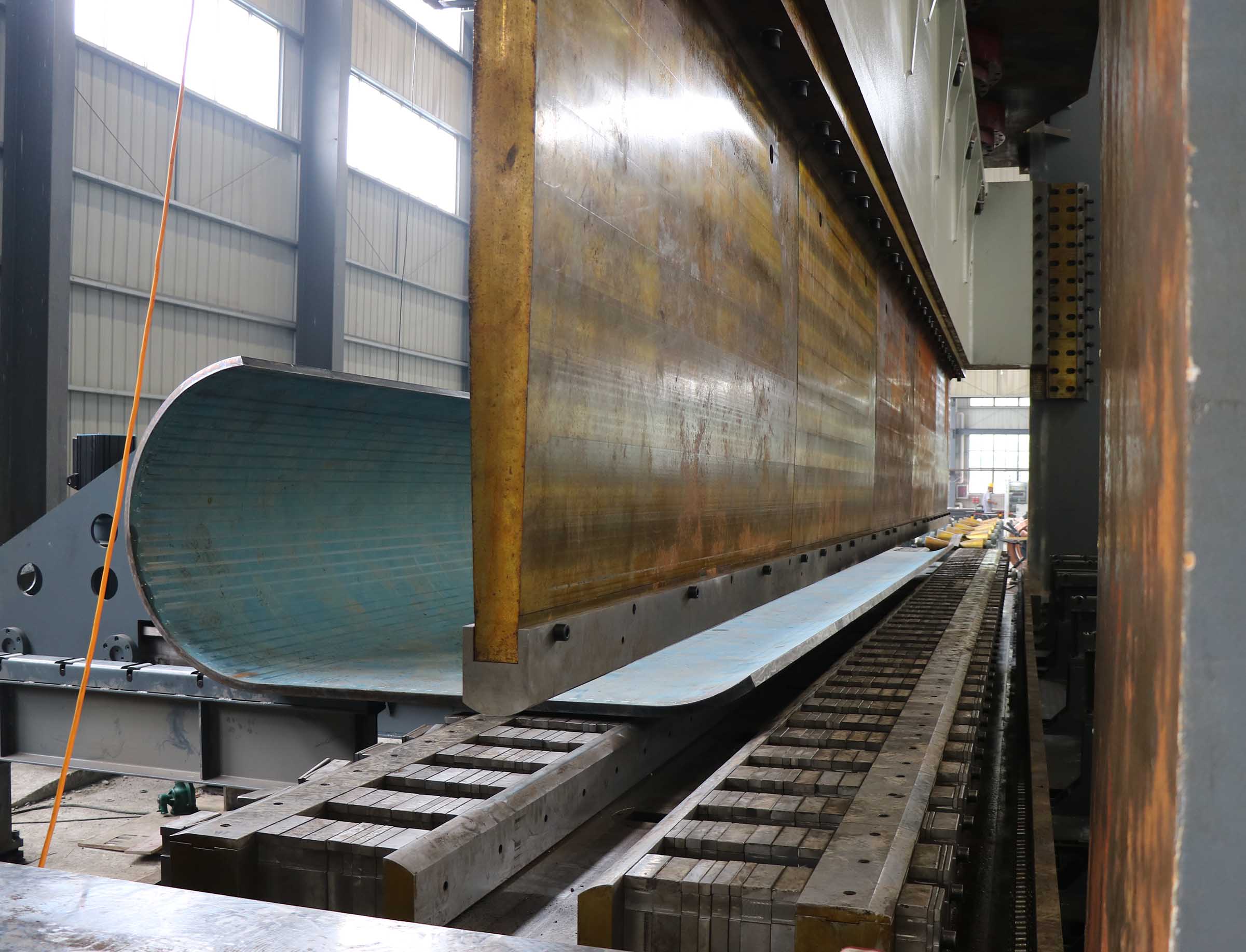

Variable lower die

variable die

Variable lower die, Max.V=800mm

Movement die

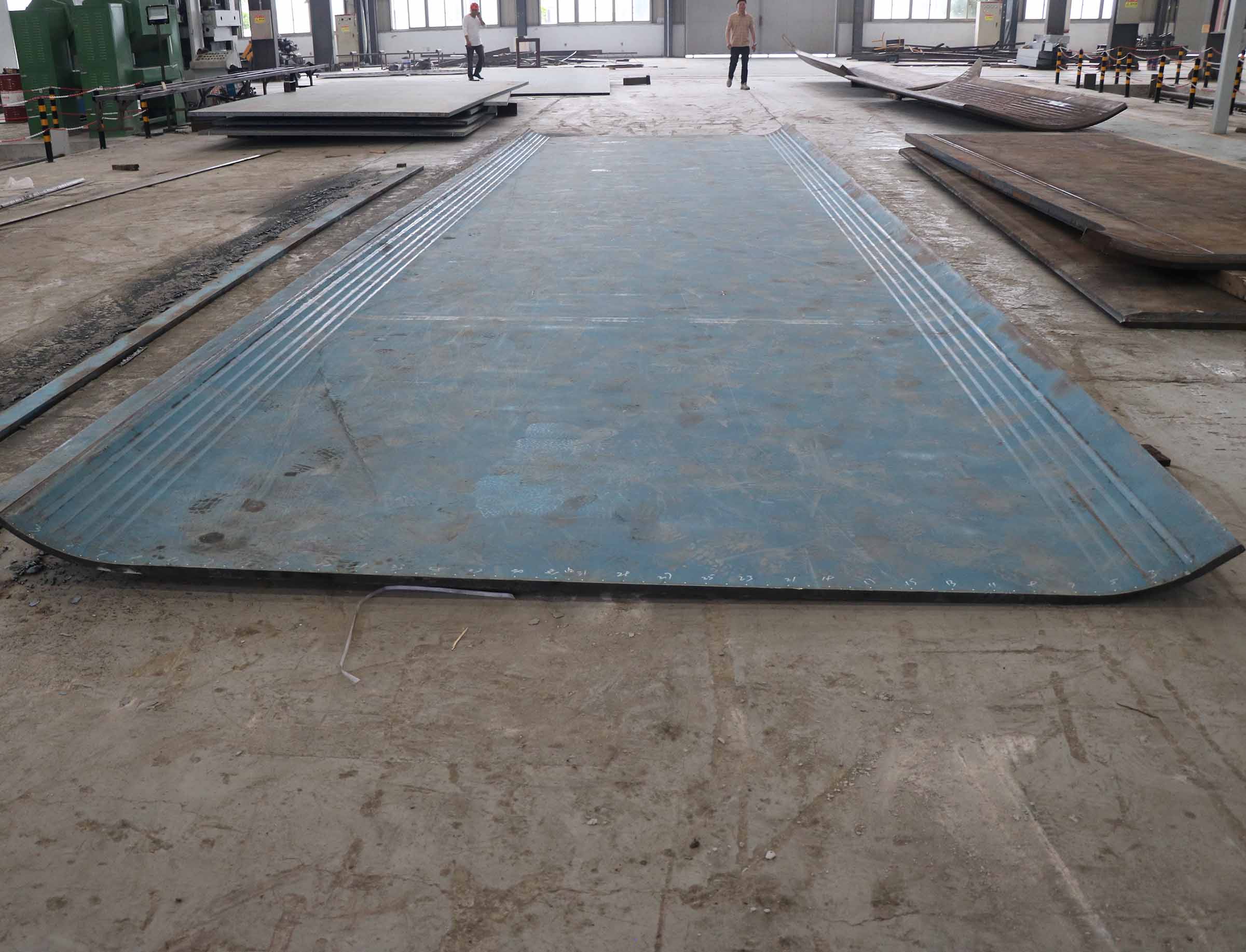

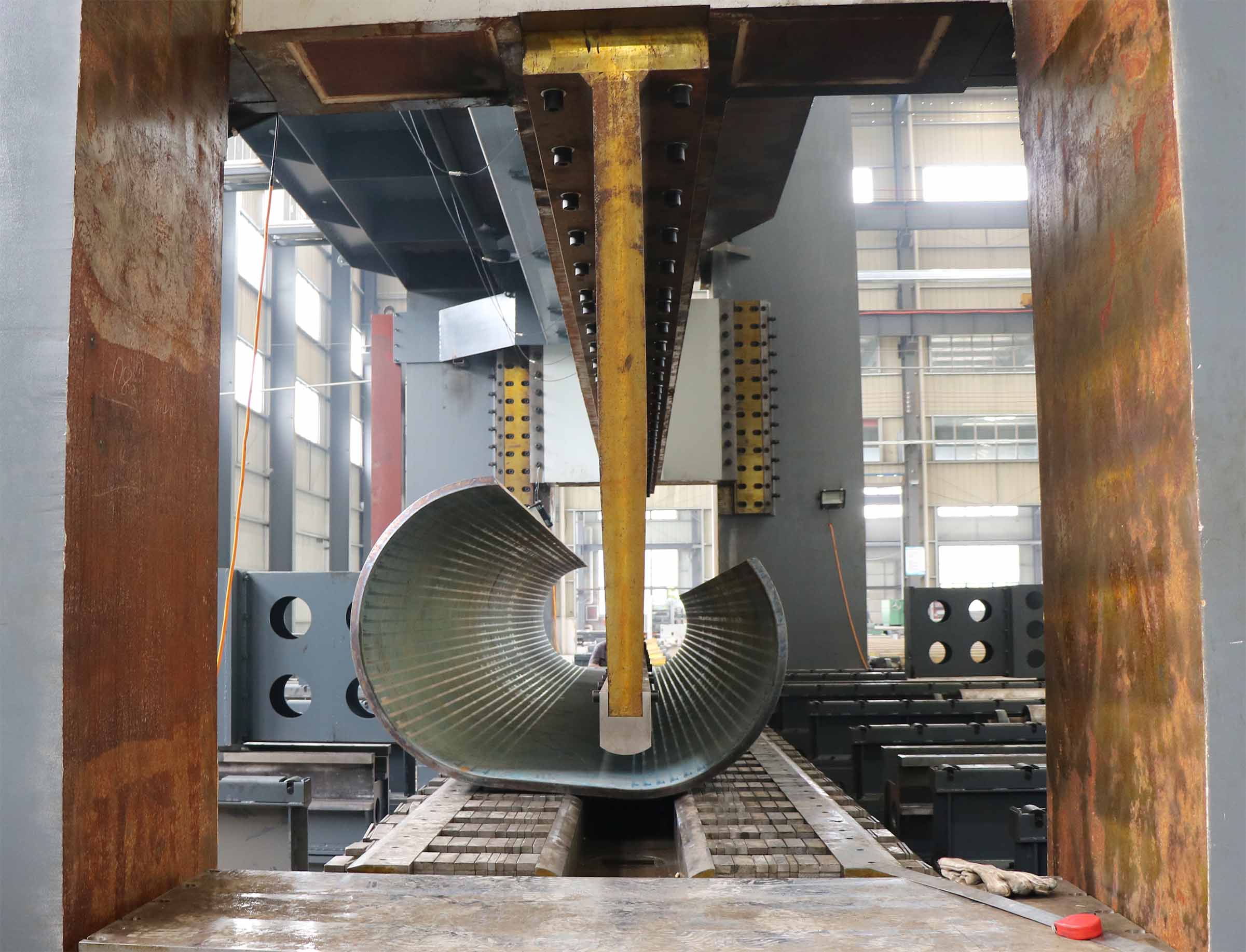

end prepare bending

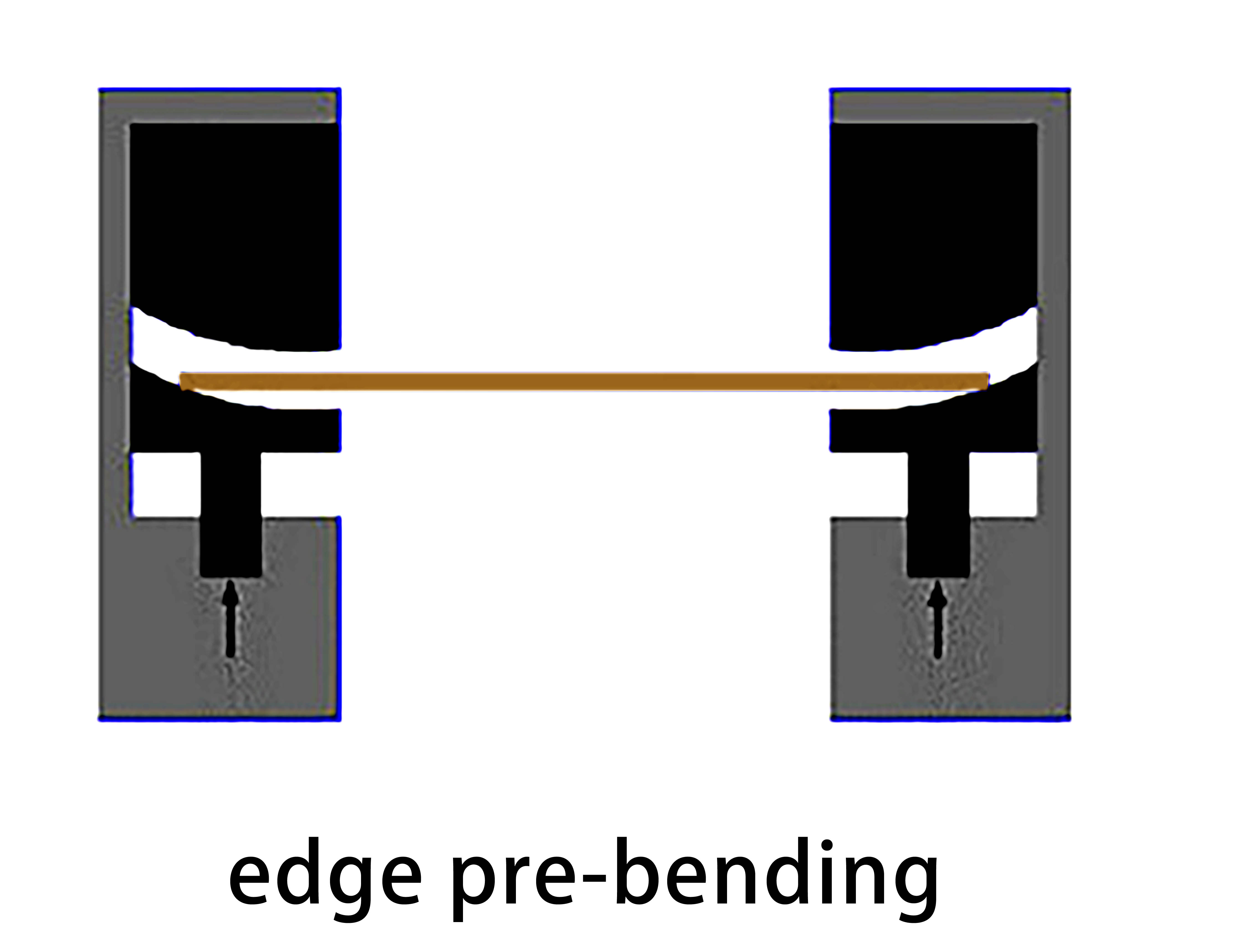

The die can move in horizontal, to pre-bend the end of the plate.

pipe bending machine

pipe bending

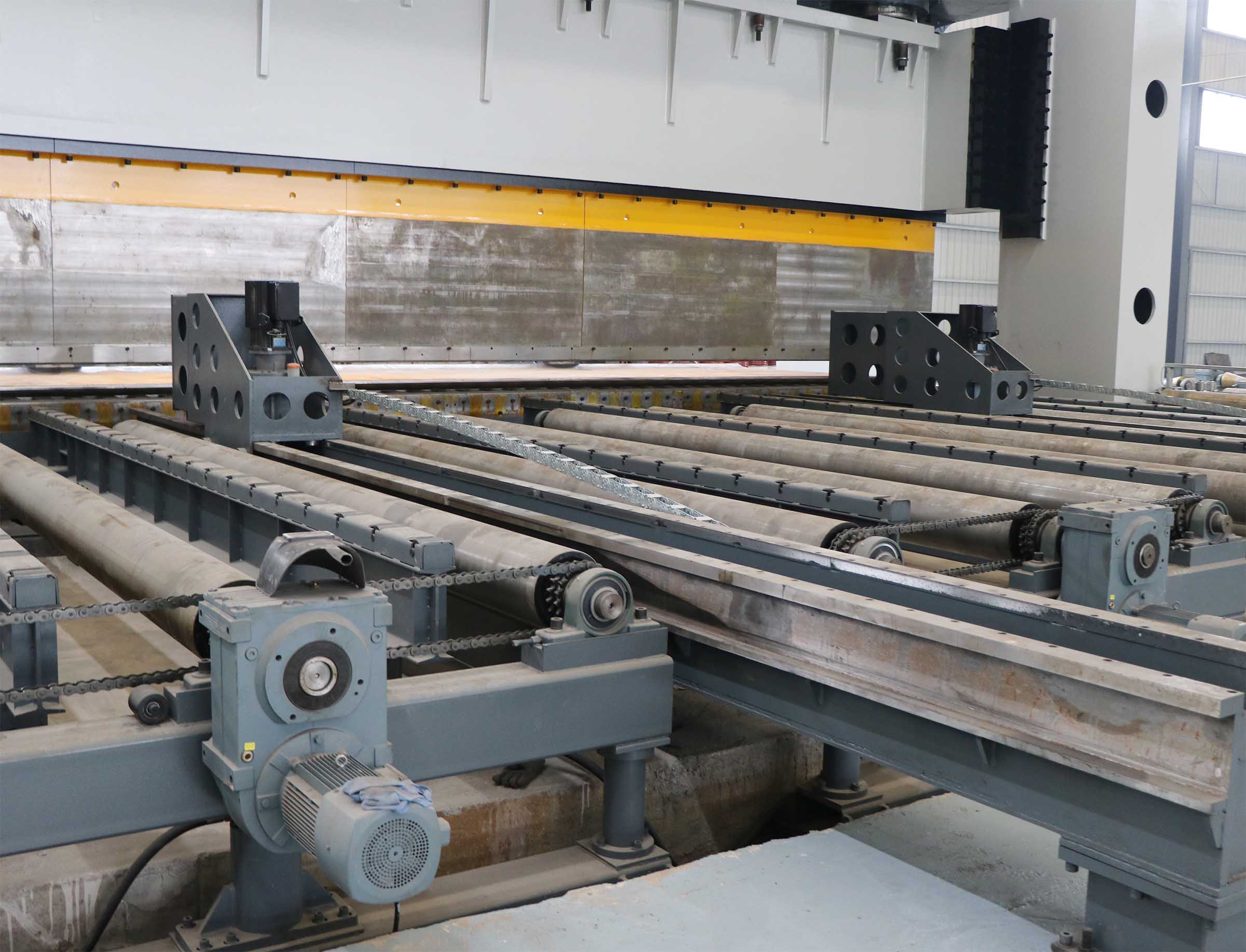

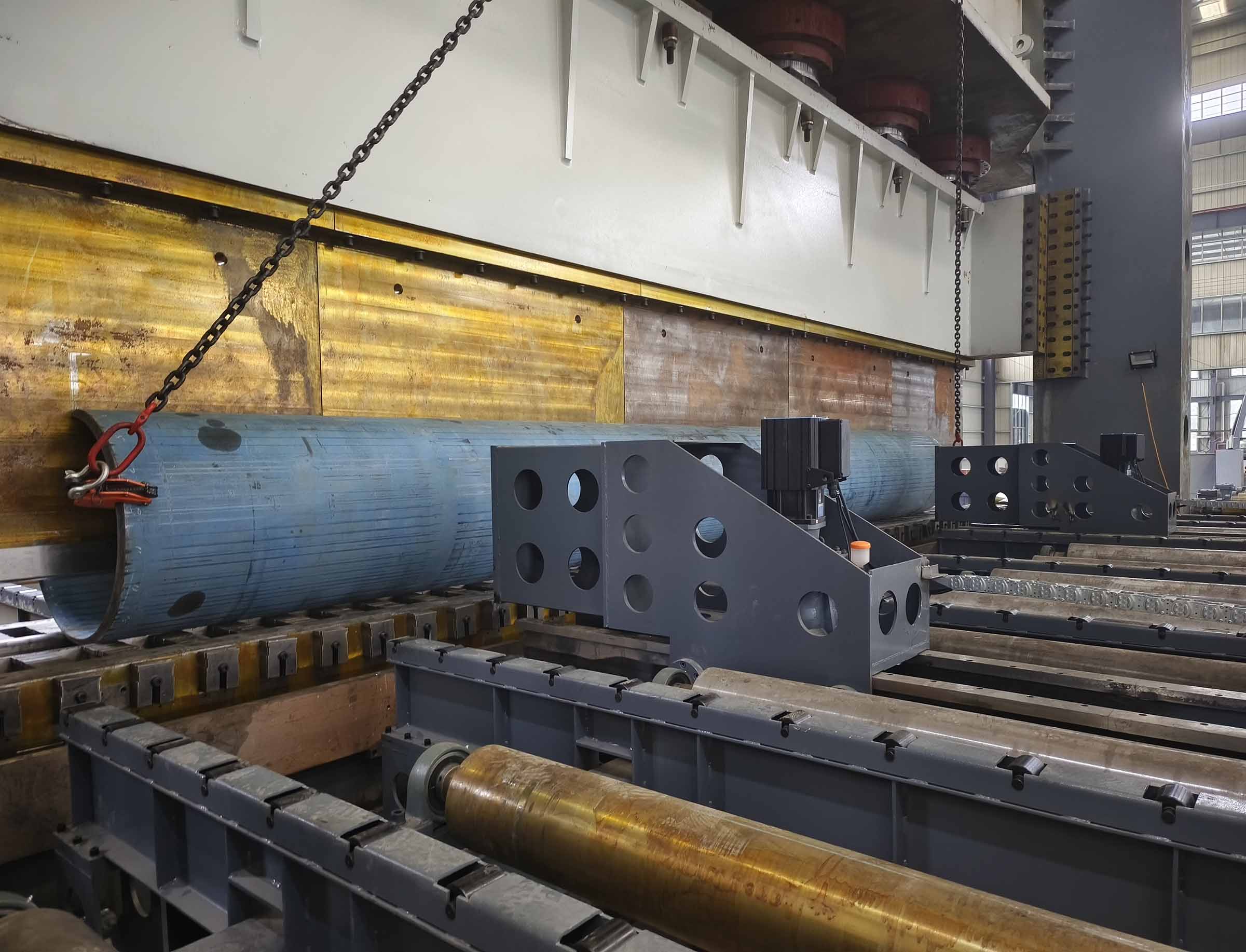

CNC controlled front feeding system

front feeding device

feeding device

Max.feeding range:6000mm

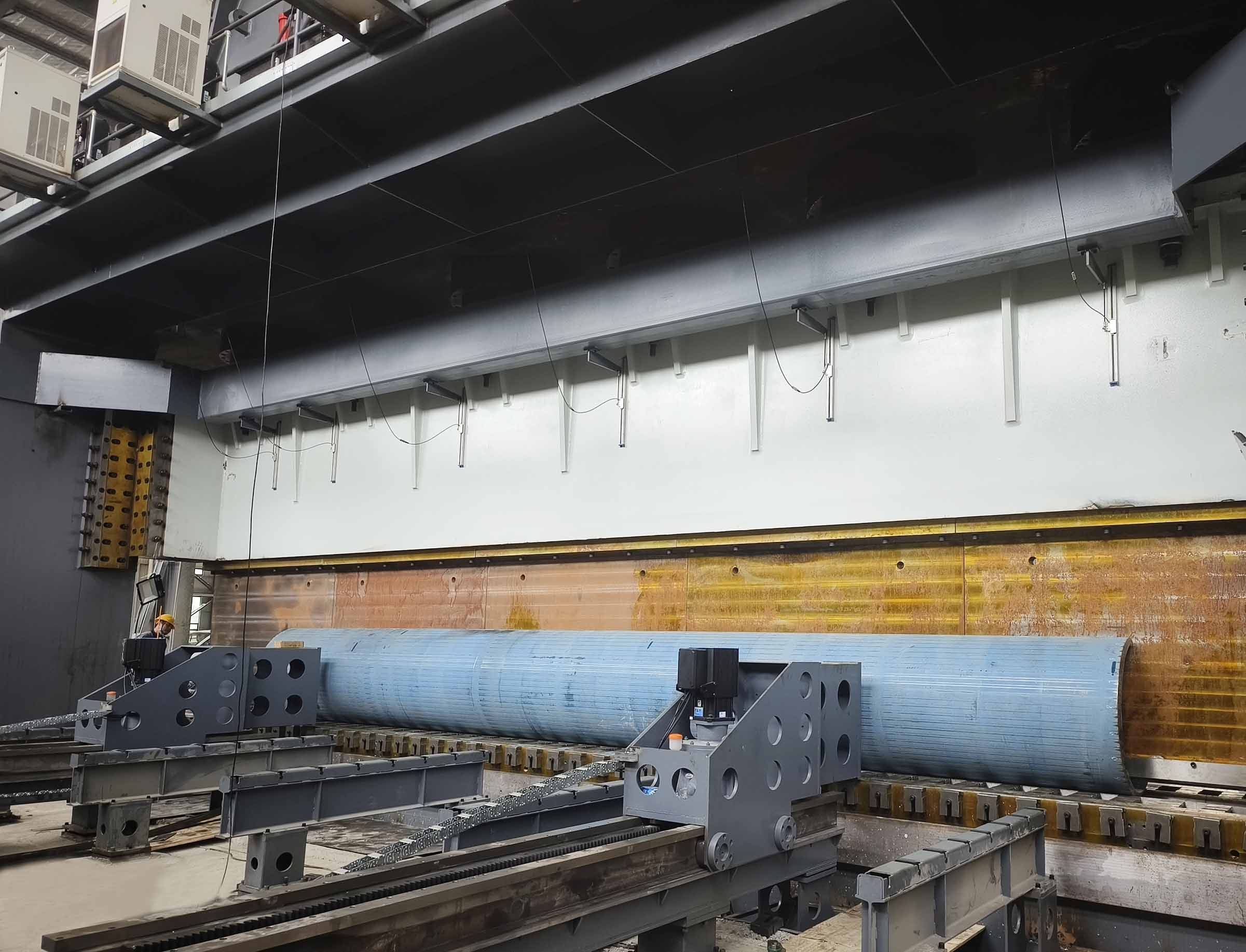

CNC controlled back gauge

back gauge

Max.feeding range:6000mm

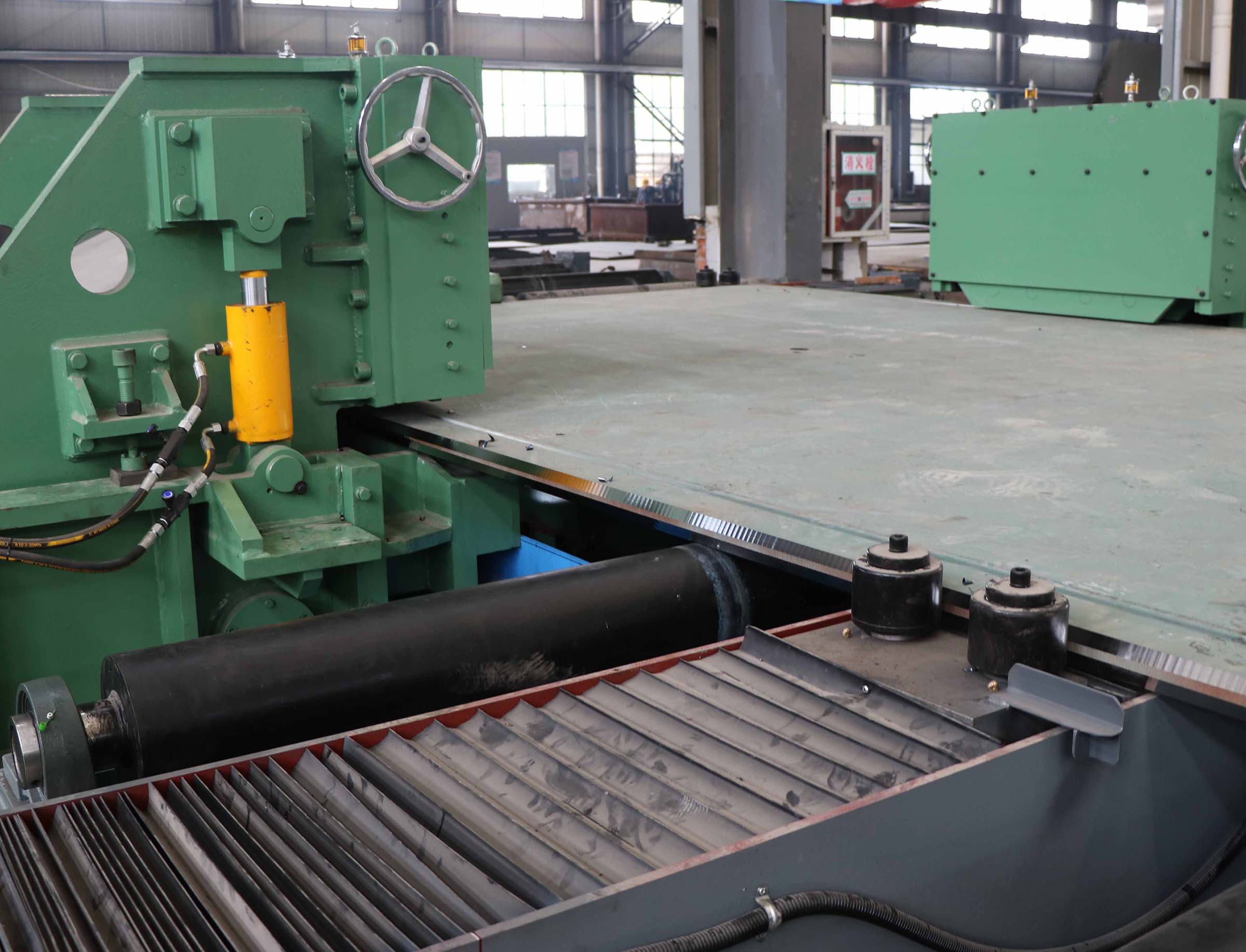

Motorized feeding pathway

feeding pathway

Side discharger

side discharger

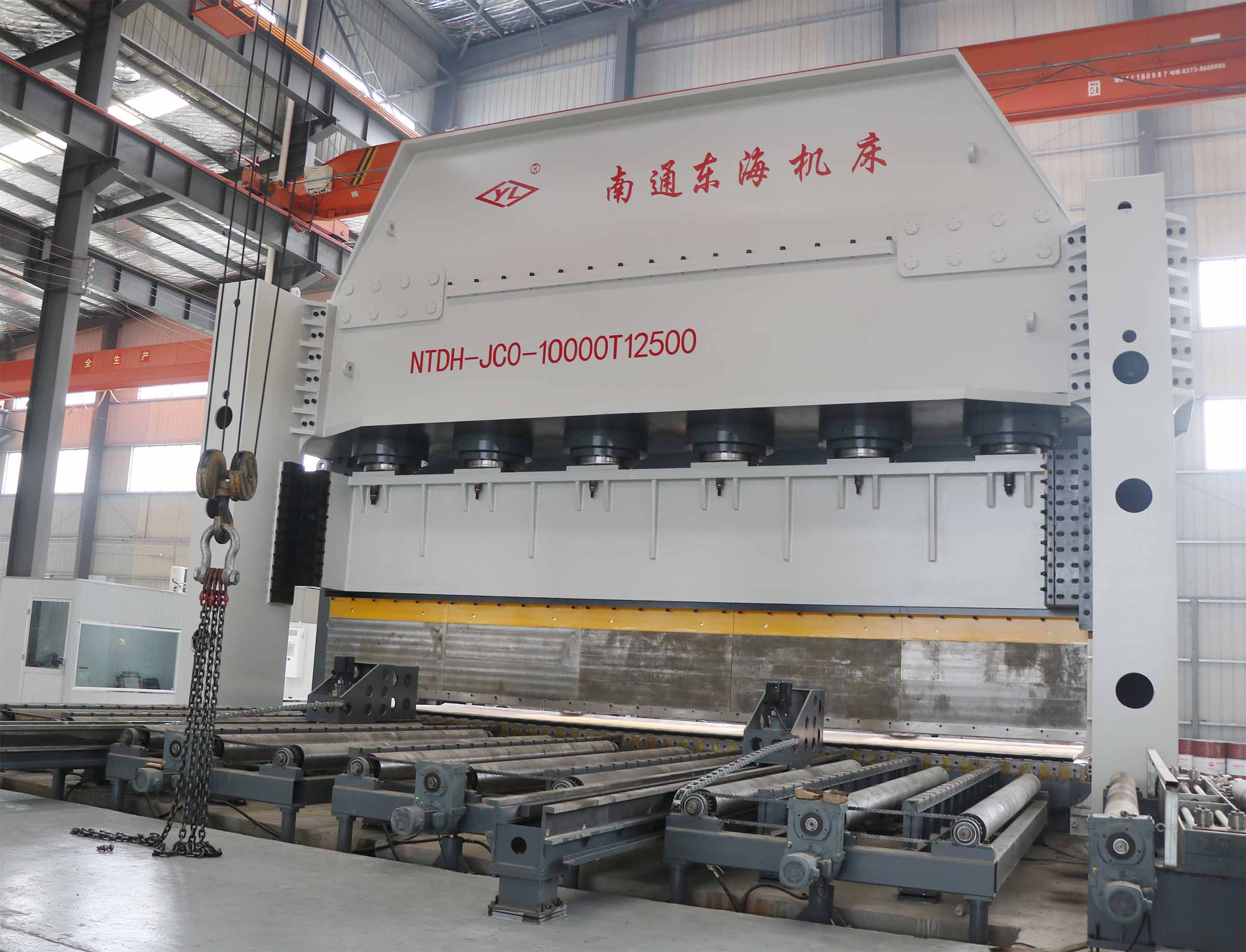

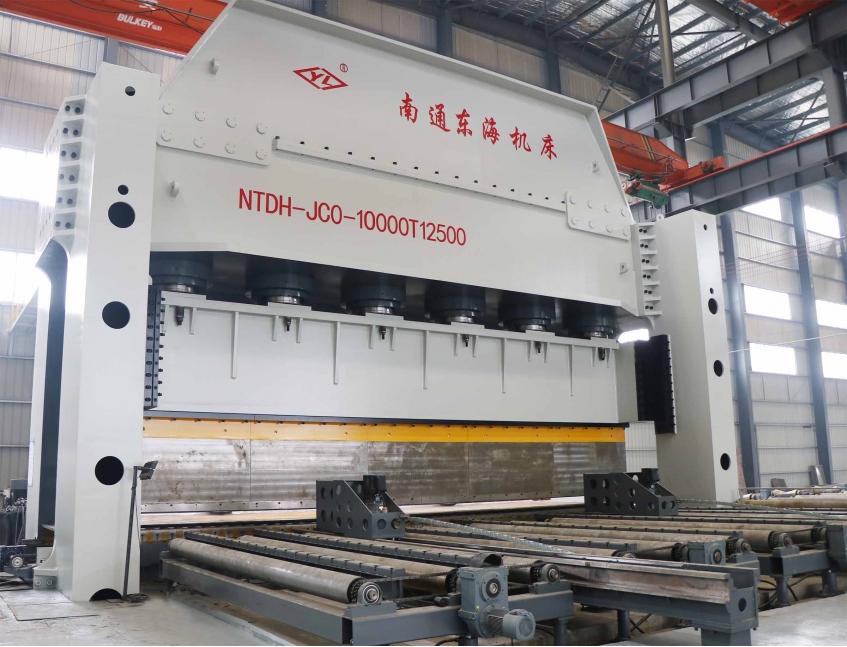

10000T press brake

Optional

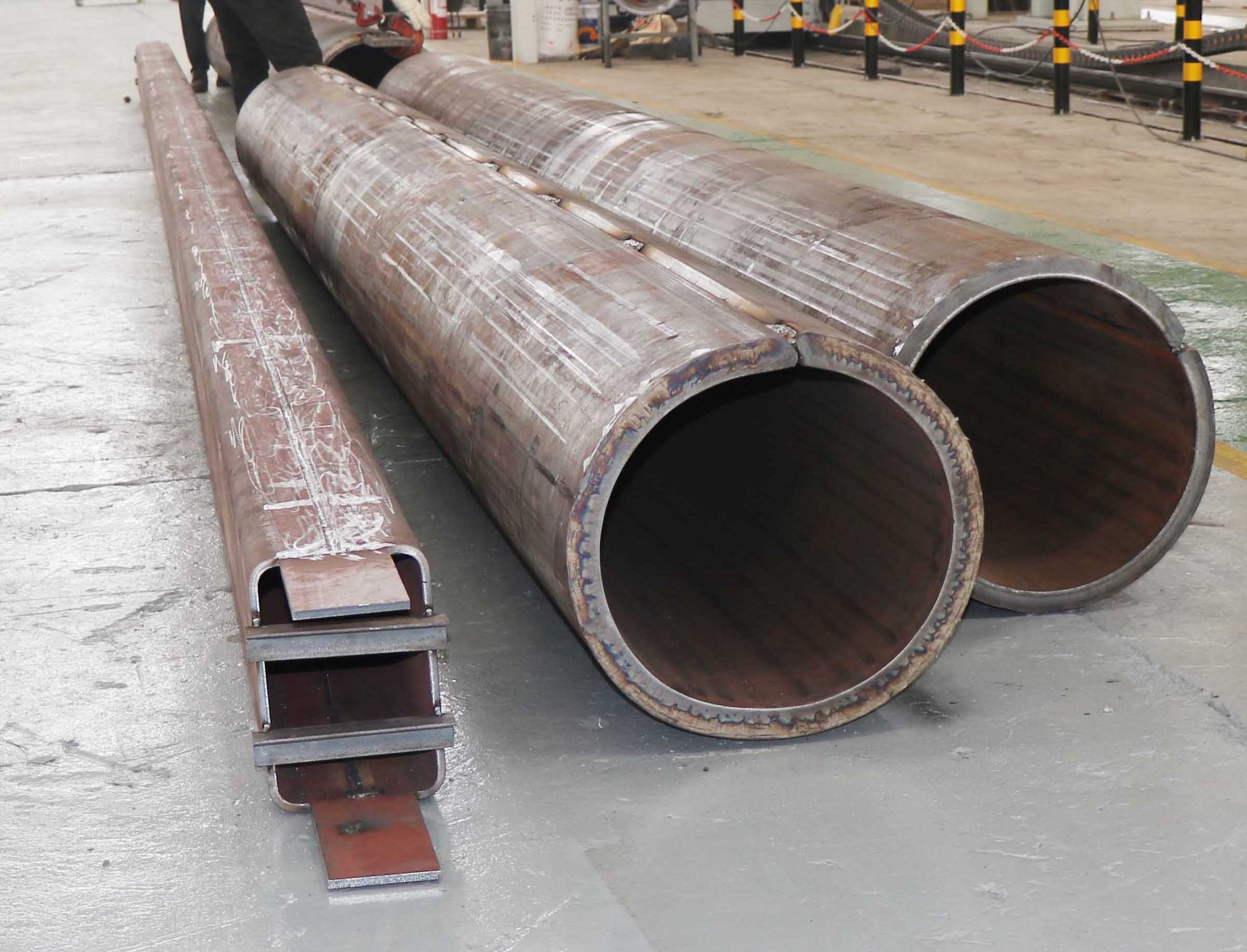

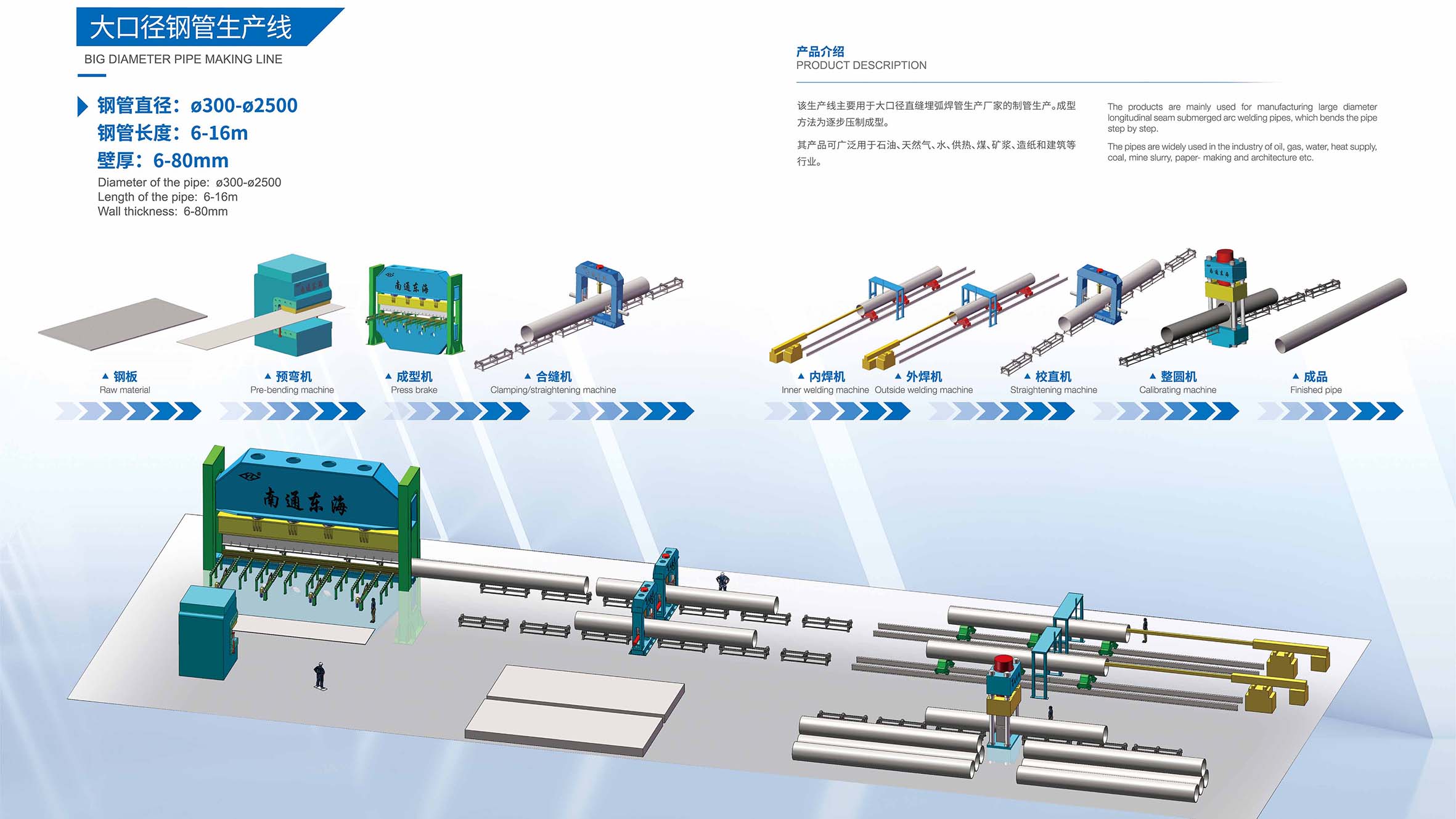

pipe making line

--Edge chamfering

edge chamfering machine

--Clamping/straightening

clamping machine

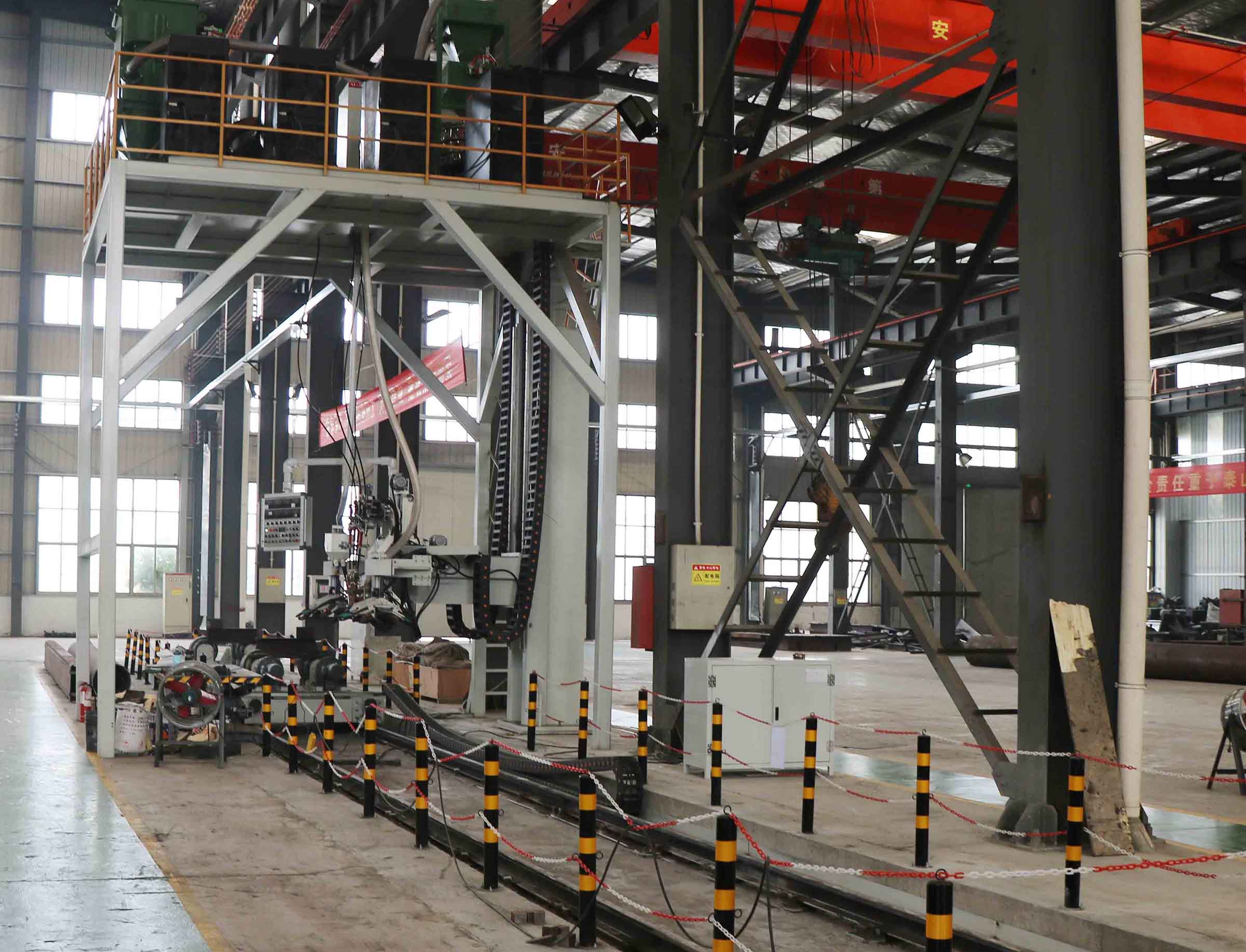

--Inner welding machine

inner welding machine

--Out welding machine

out welding machine

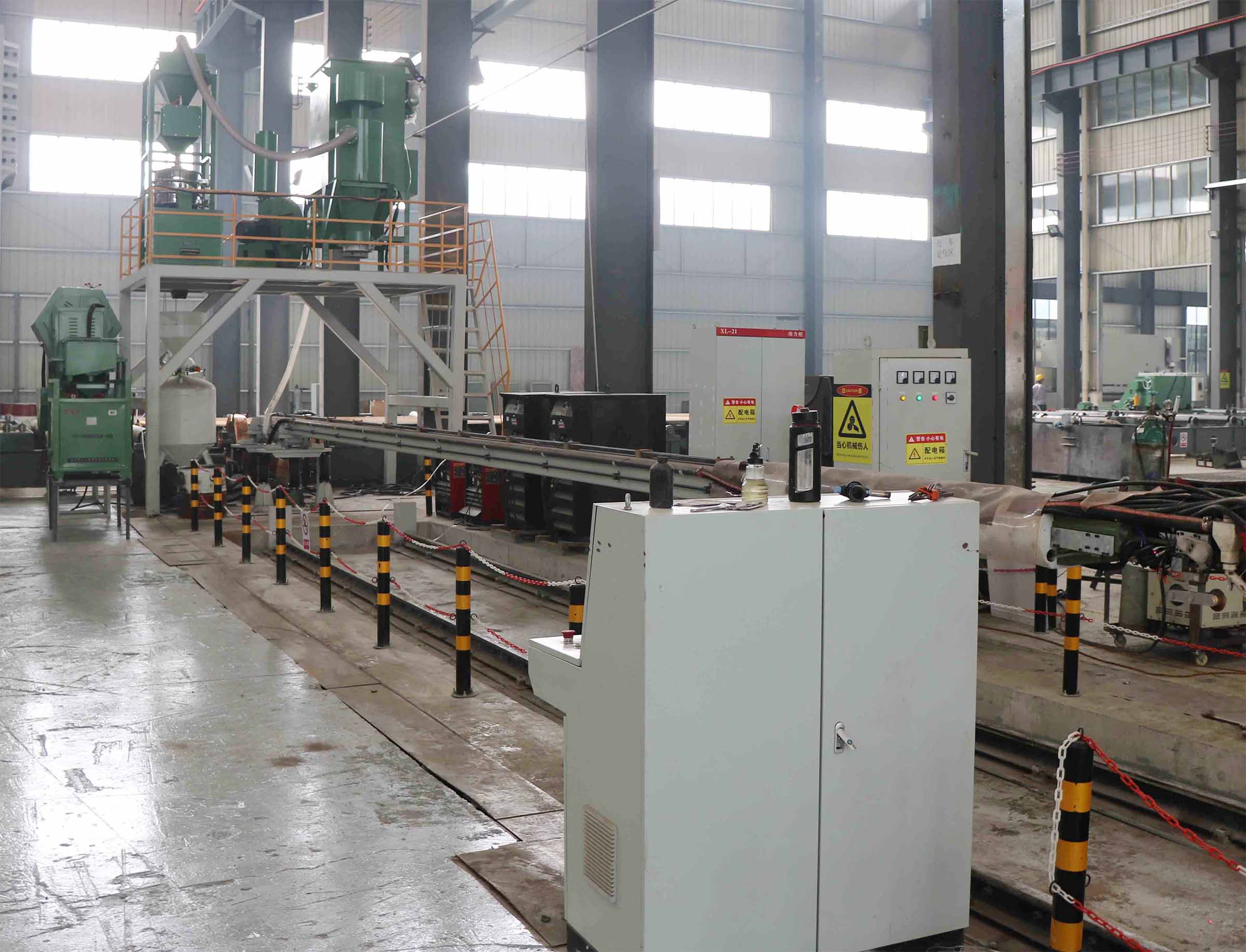

pipe macking line

Pipe making machine, press brake, clamping, straightening, innwer welding, out welding
