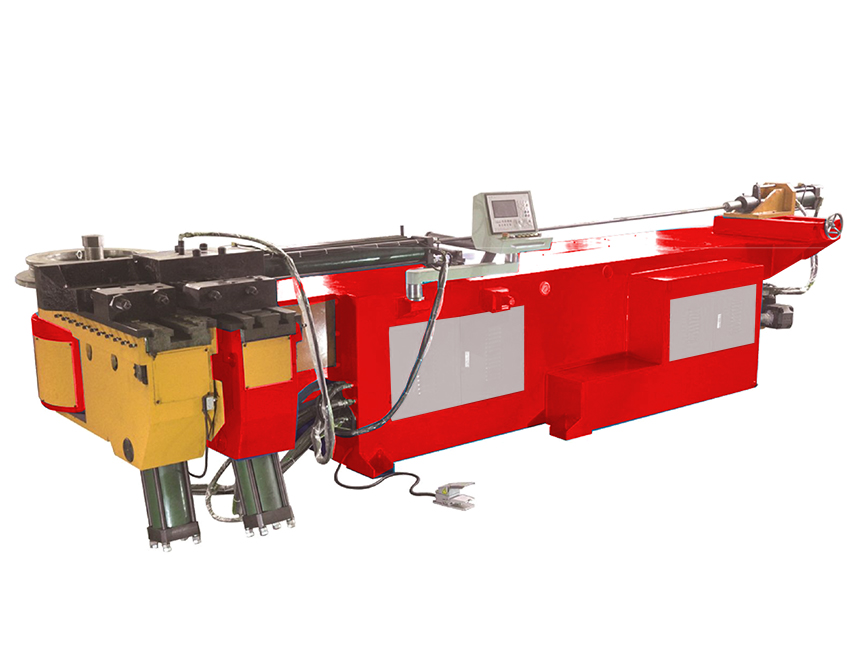

DW130 NC Tube Bending Machine

DW130 NC Tube Bending Machine

Features:

--NC controlled, hydraulic drive

--Various bending degrees

--Two kinds of operation way: manual and semi-automatic

--Portable foot pedal with emergency stop

--YUKEN cartridge valve integrated hydraulic system

Technical parameter

Item

    Name

Unit

Data

Remark

1

Max bending capacity

Round pipe

Φ130 X 8mm/114 X 15

Can according to your requirements

Rectangle

120 X 60mm

Square pipe

100 X 100 X 8mm

2

Bending Torque

N.M

10000



4

Max bending radius

mm

520mm



5

Min bending radius

mm

Depend on the tube diameter



5

Max feeding length

mm

6400mm

Can according to customer’s requirement

7

Max bending degree

Degree

190



8

Bending Speed



10°/s



9

Control system

       NC control

9

Max bending unit on the same pipe

unit

16



10

Max storage sections

unit

16 x 16



11

Main Motor Power

Kw

22



12

Oil tank

L

400



13

System hydraulic pressure

Mpa

14



14.

Machine Size

mm

6100 x 1600 x 1300



15

Machine Weight

KGS

8000

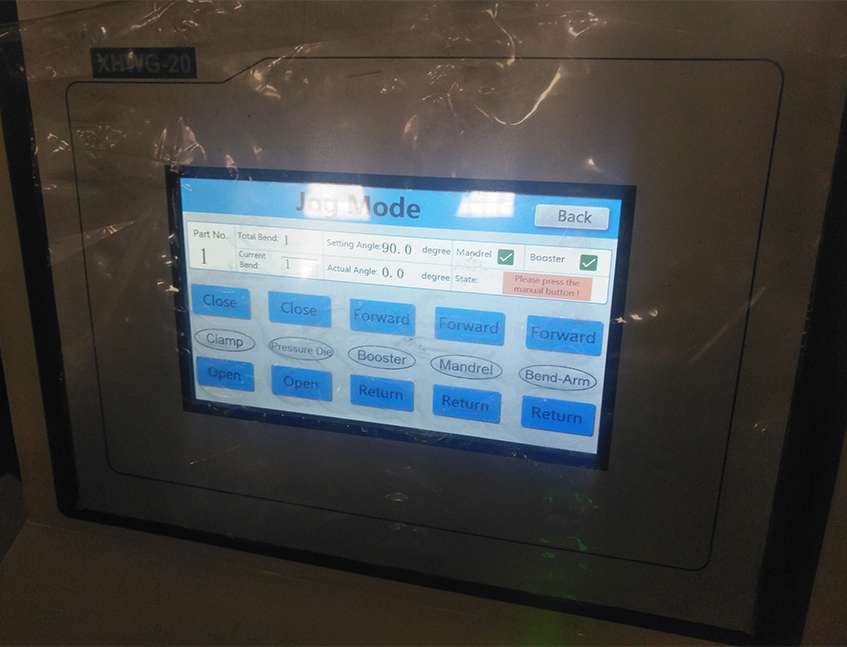

--NC control panel

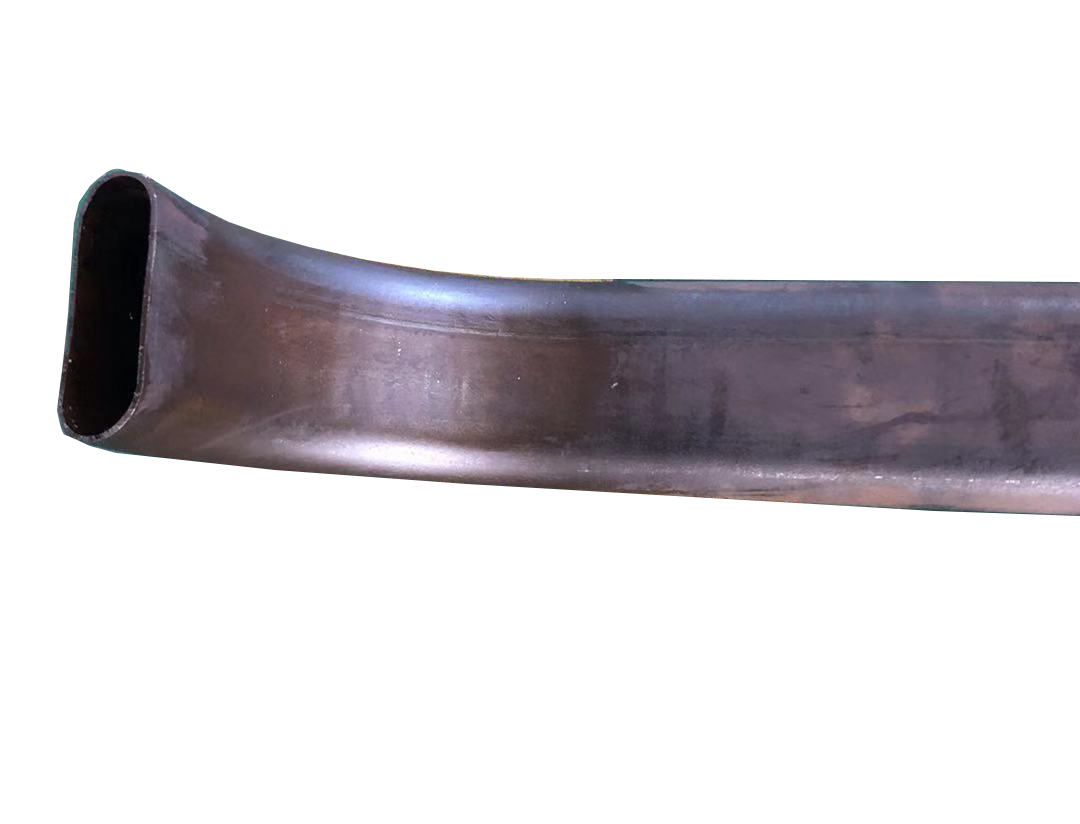

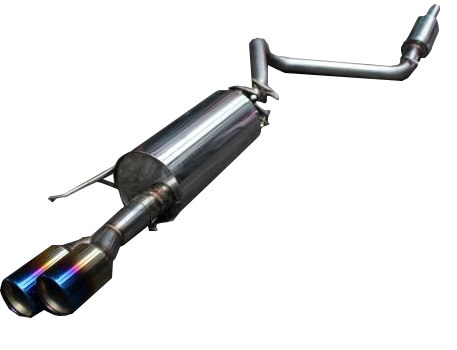

Application

tube bending



-----
