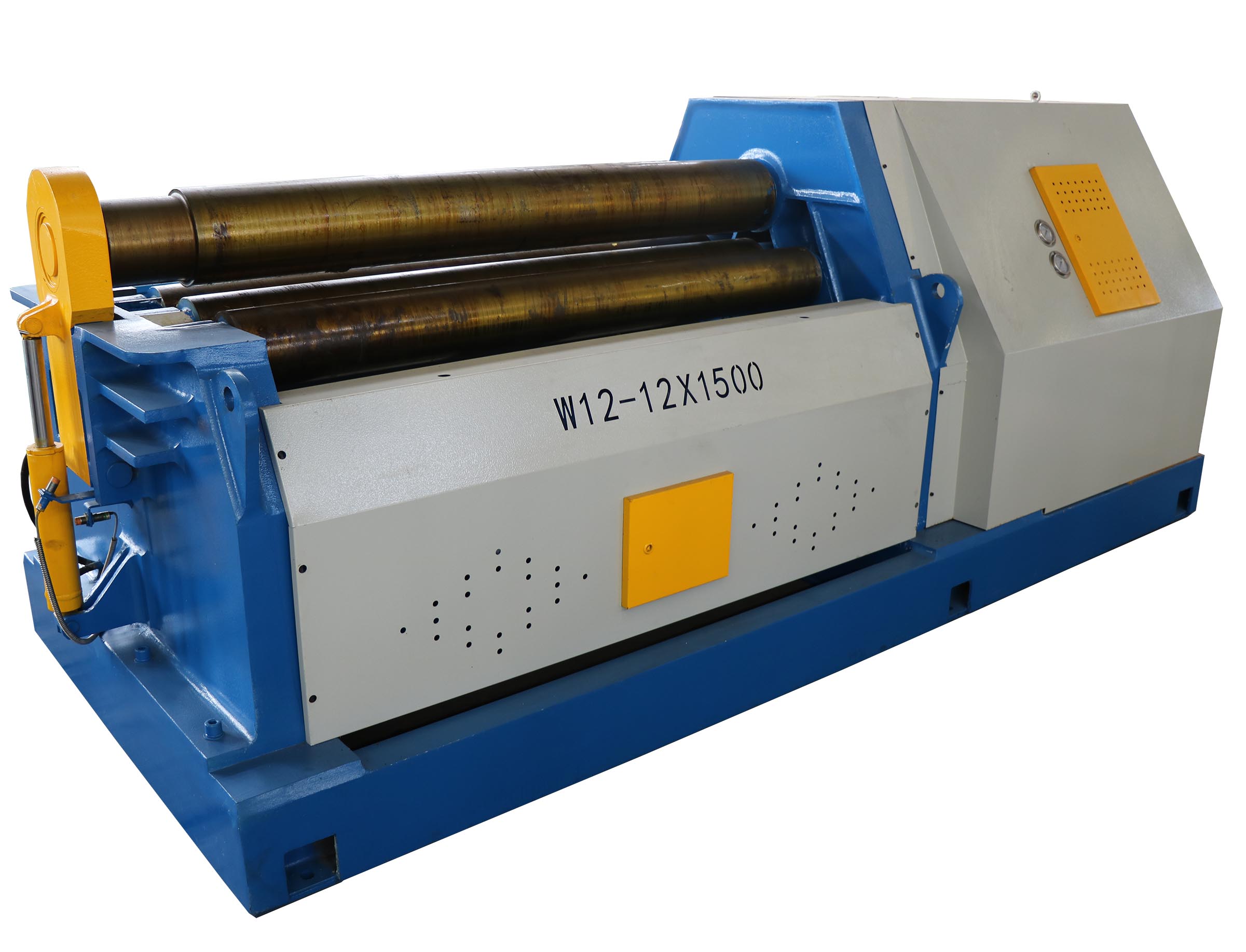

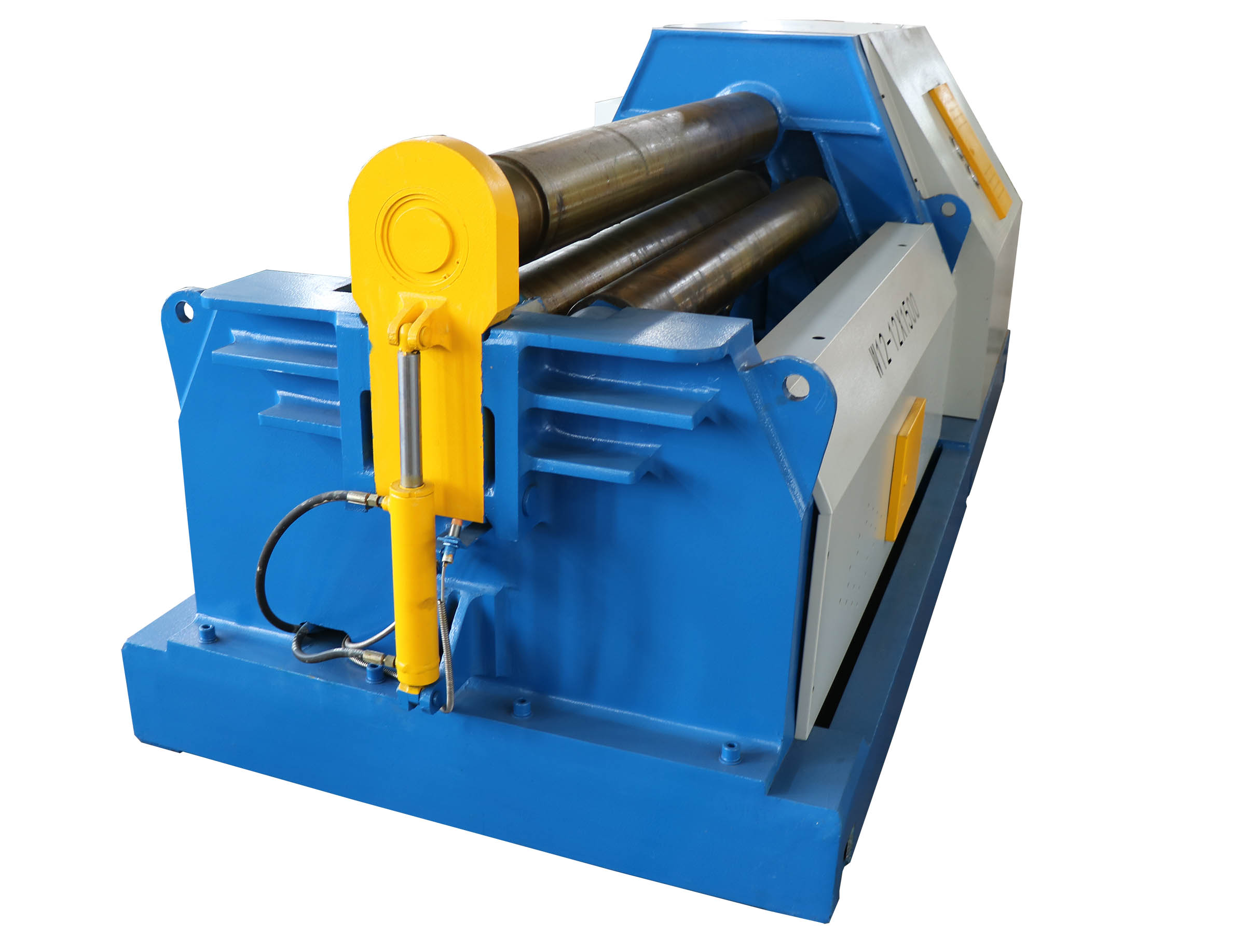

W12NC-12x1500 Four Rollers Plate Bending Machine

W12NC-12x1500 4-roller Plate Bending Machine is a type of double pinch plate bending machine. Each of the rollers is separate driven. Rollers rectilinear slide ways coated with antifriction material, no maintenance, suit to heavy duty loading, smooth and stable positioning. Spherical roller bearings are equipped on the rollers. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.

Parameters

Features:

--heady duty linear sliding guides mounted on the uprights of the machine for lower roller and side rollers translation

--electronic parallelism control system

--rollers synchronization and balancing control fully electronically controlled

--side rollers and bottom rollers variable tilting controlled, positive or negative

--conical facility

--rollers driving by independent hydraulic motors

--anti-friction material in sliding area

--instantaneous brake for rollers rotation for high safety

--reversal side hydraulic driving

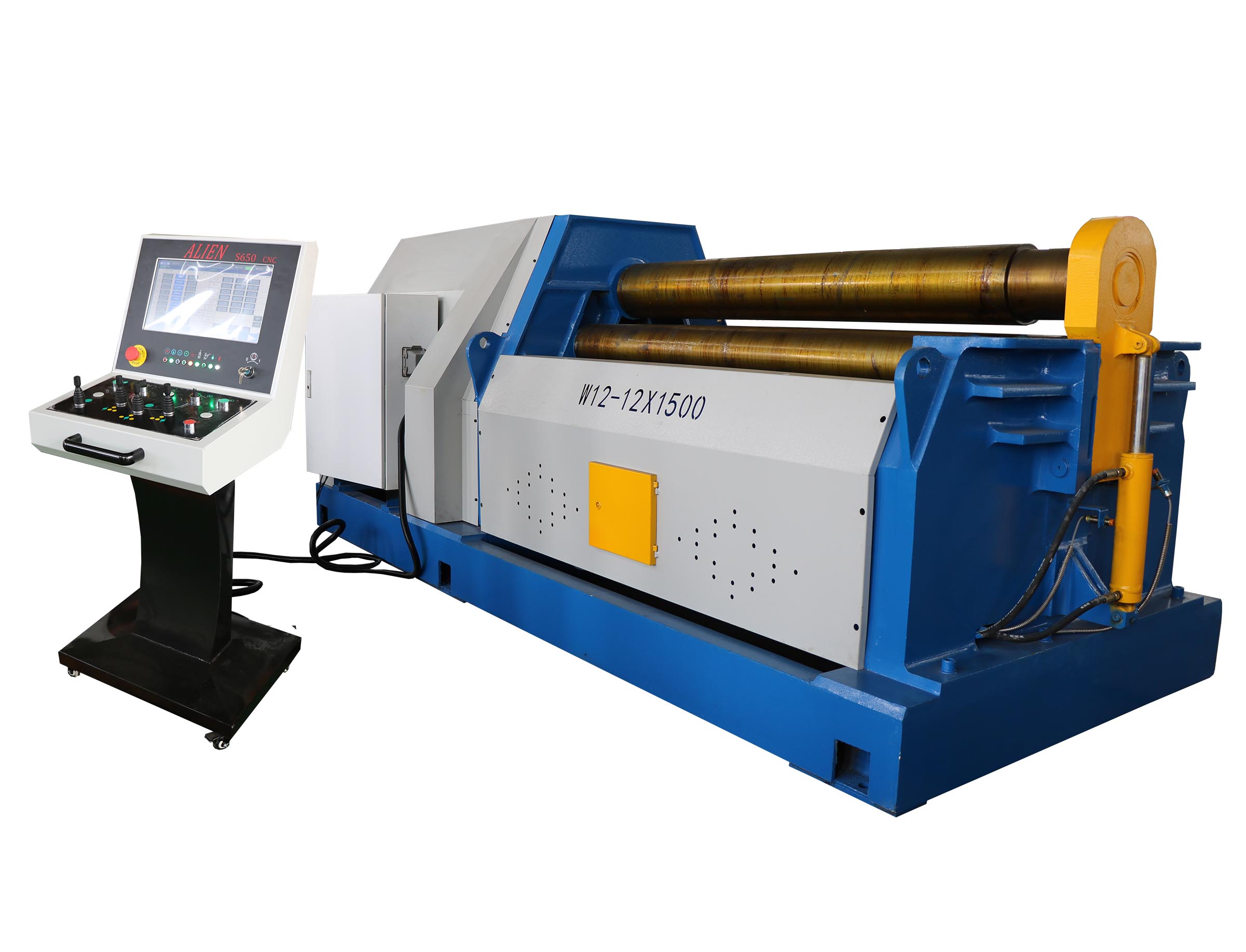

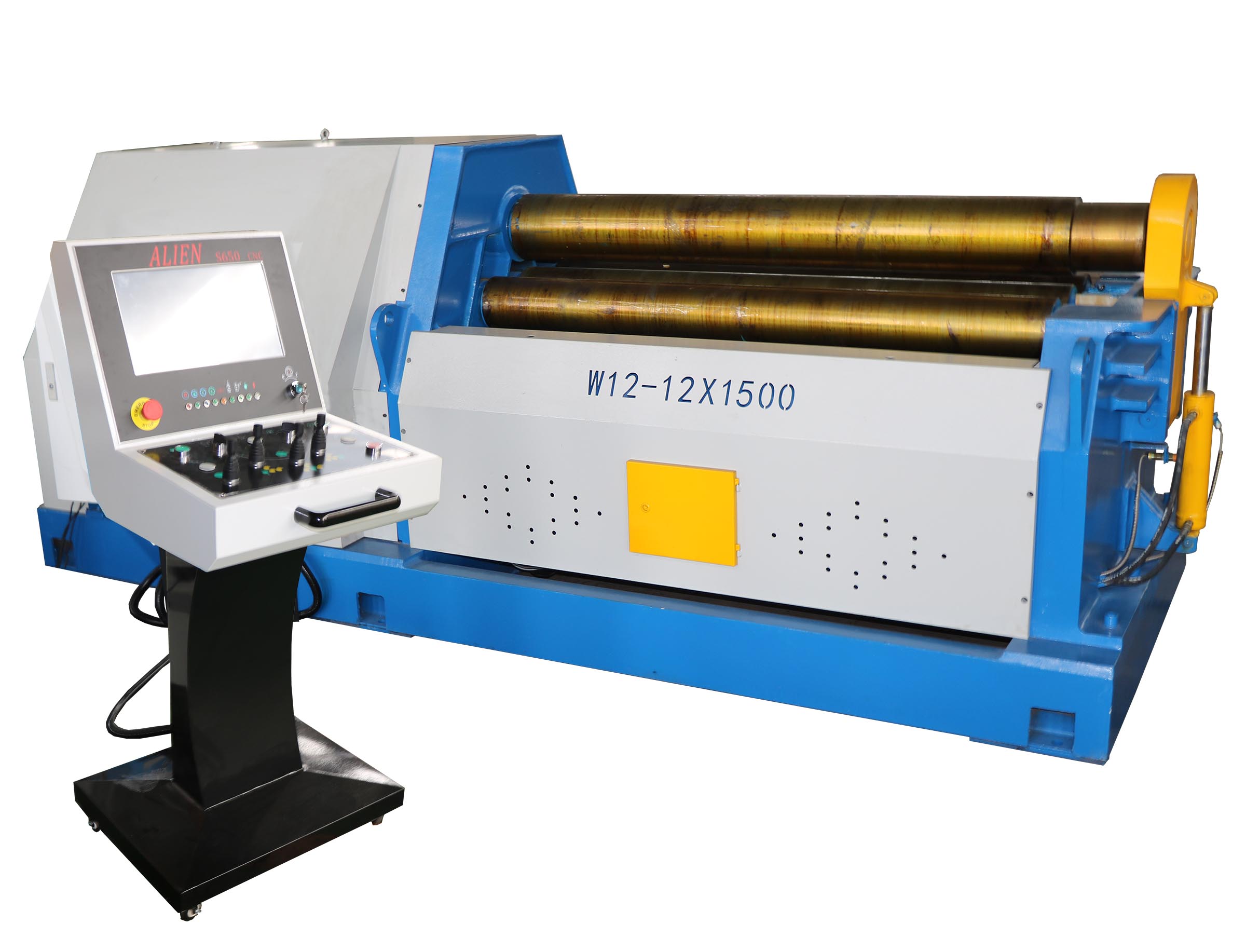

--Mobile control panel station, with low voltage control

--Mobile control push-buttons, convenience for operator

--Rollers

--Hydraulic motor

--Control system

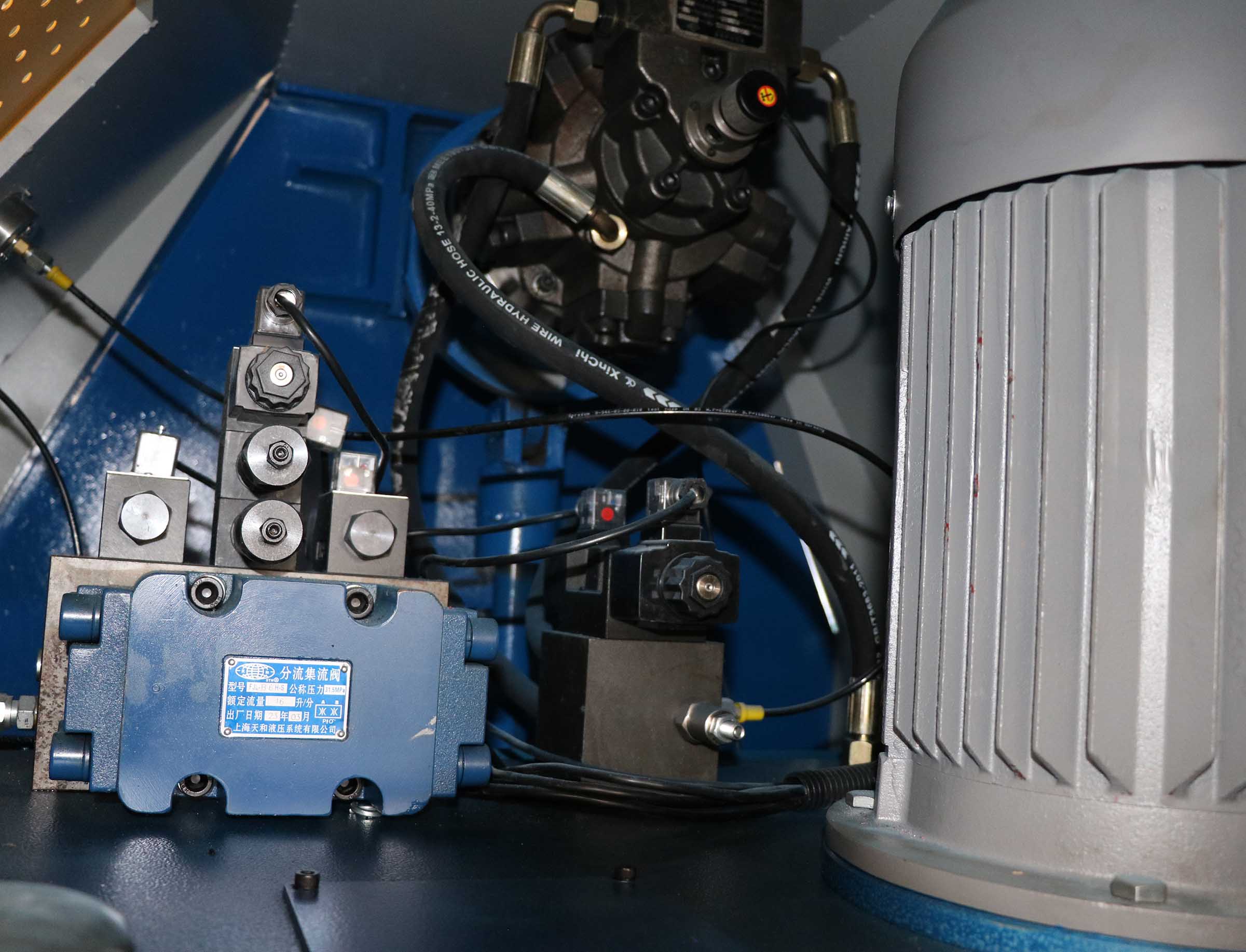

-- Hydraulic system

--Cylinders

--Cone bending

Optional:

--vertical plate supporting device

--side plate supporting device

--Application

Optional:

--vertical plate supporting device

--side plate supporting device
