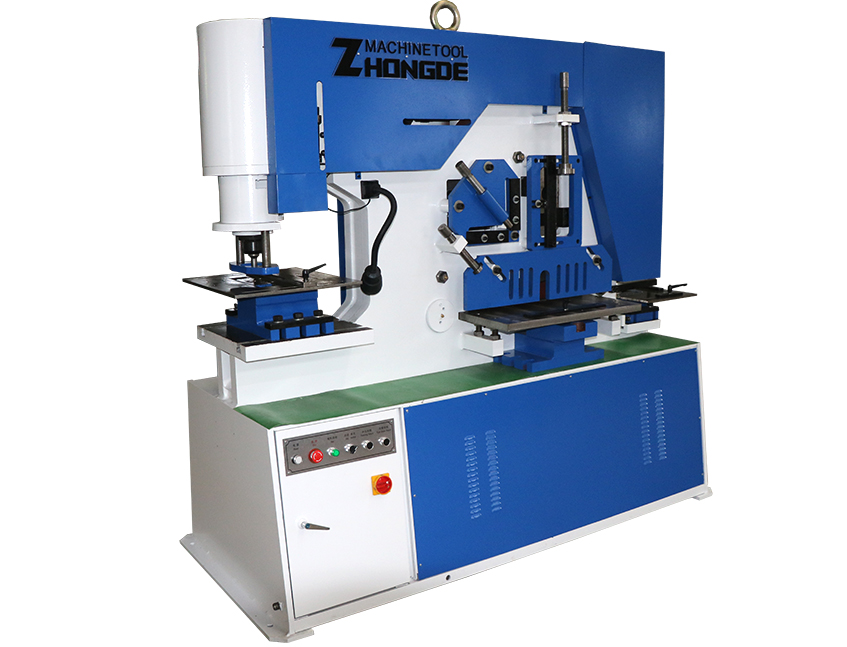

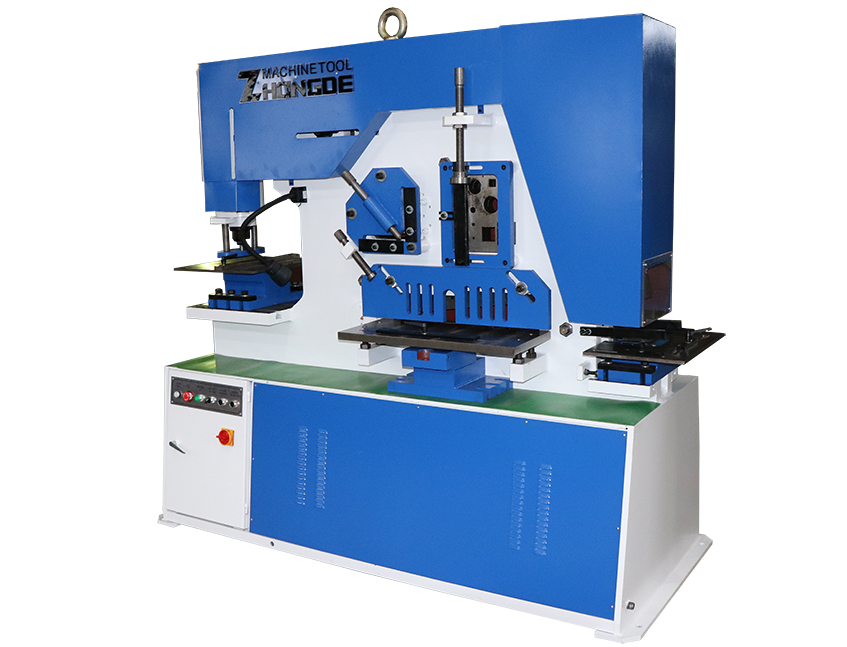

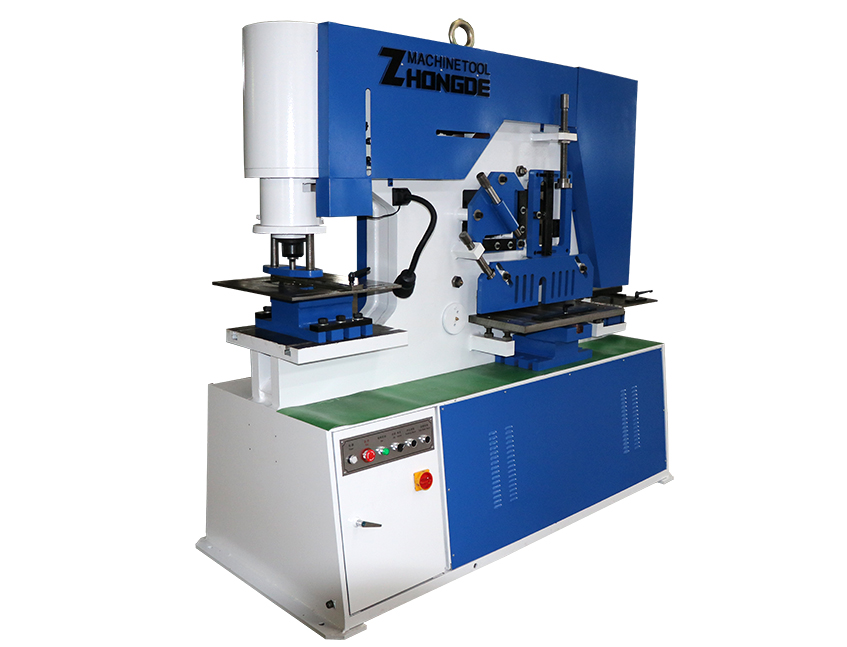

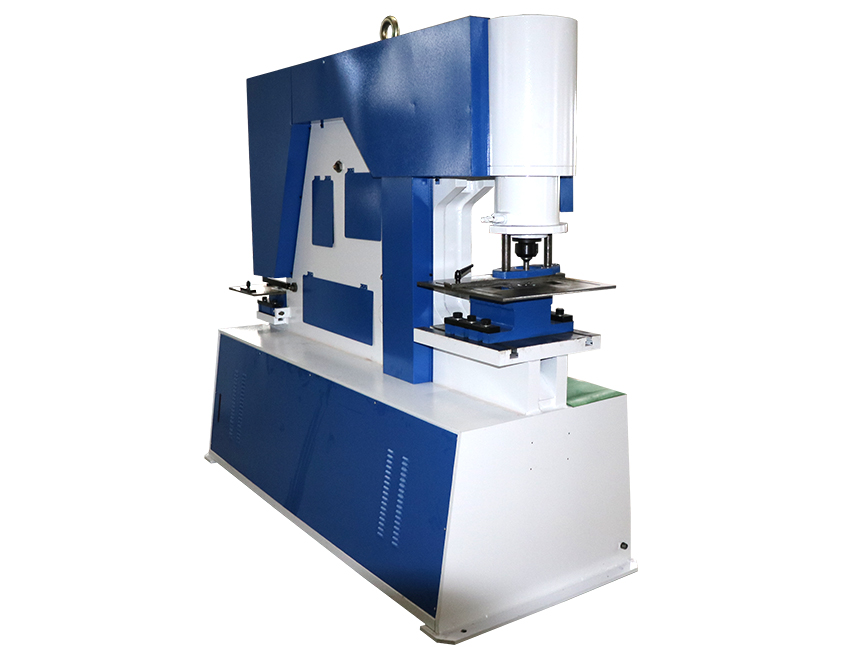

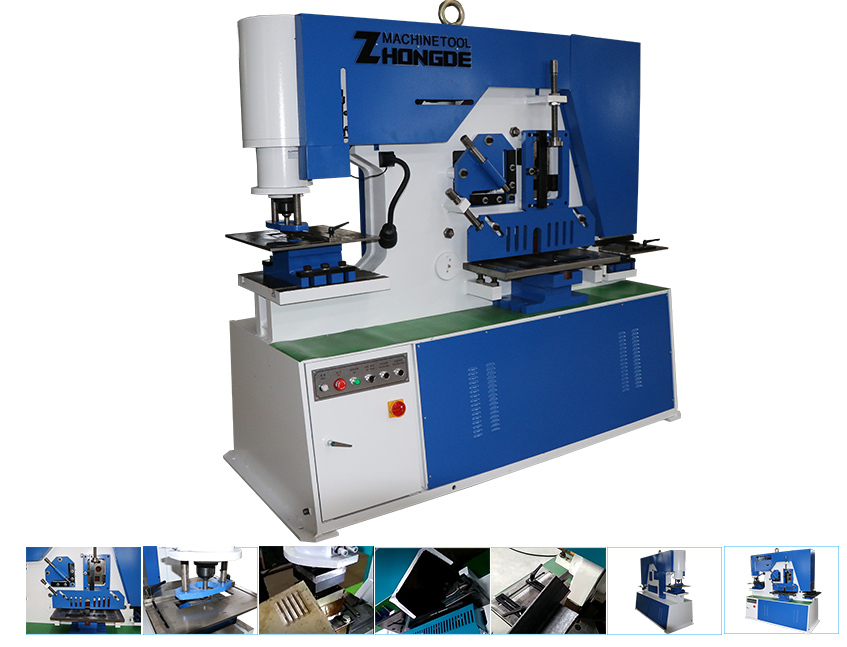

Q35Y-40 Hydraulic Ironworker

Q35Y-40 Ironworker

The Q35Y series hydraulic ironworker is kind of machine that used to cutting, bending, punching, pressing, shearing, notching the steel plate.

This kind of ironworker is hydraulic drive, with two operation stations, with professional tool, this type of ironworker can processing the following material.

Angle steel, I-beam(IPN) ,U-beam(UPN),H-beam, steel plate, solid bar, pipe, tube

--Parameter

Model			Q35Y-40
Pressure(Ton)			200
Plate strength (N/mm²)			≤450
Sheet shearing	Max. thickness		35x450
	Max. length		27x700
Round bar cutting (mm)			Ø70
Square bar cutting (mm)			60x60
Angle steel cutting (mm)			200x16
IPN cutting (mm)			320
UPN cutting (mm)			320
Notching (mm)		thickness	20
		width	80
		depth	100
Hole Punching (mm)		thickness	35
		diameter	40
		throat	700
		stroke range	80
		strokes	8-22
Power of main motor( Kw)			15
Dimensions (mm)		length	2900
		width	1150
		height	2300
Weight kg)			9500
Oiling volume（46#）			120L

--Structure

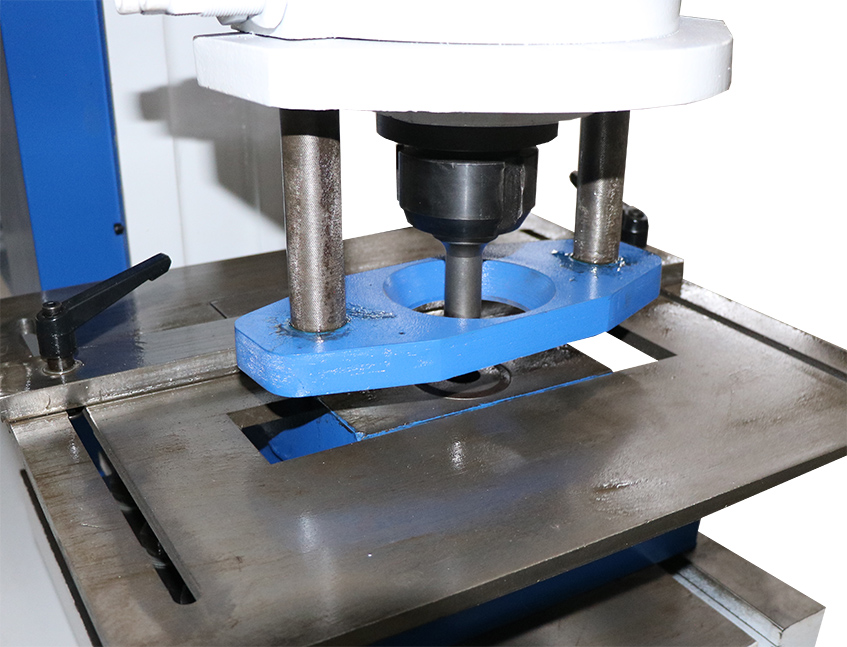

--Hole punching station

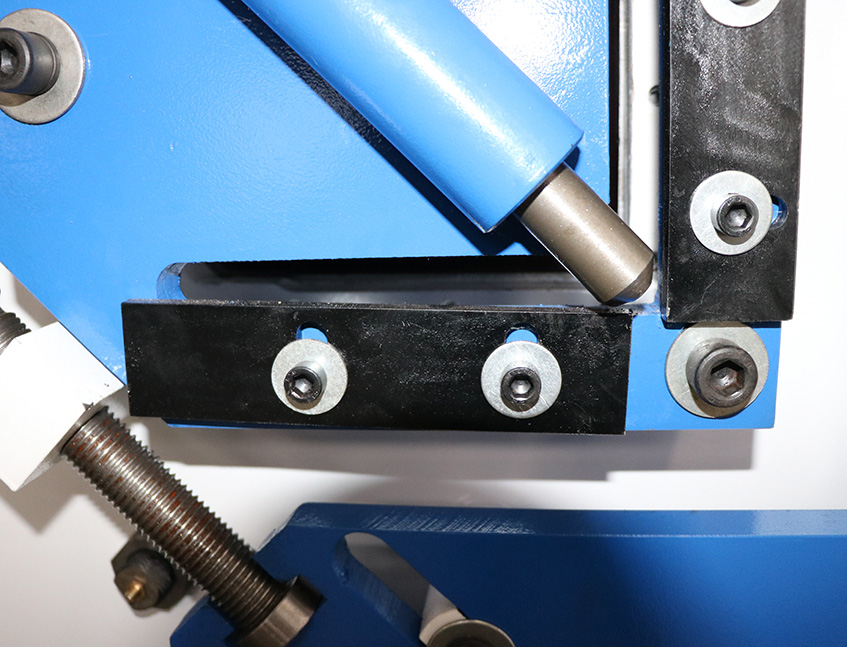

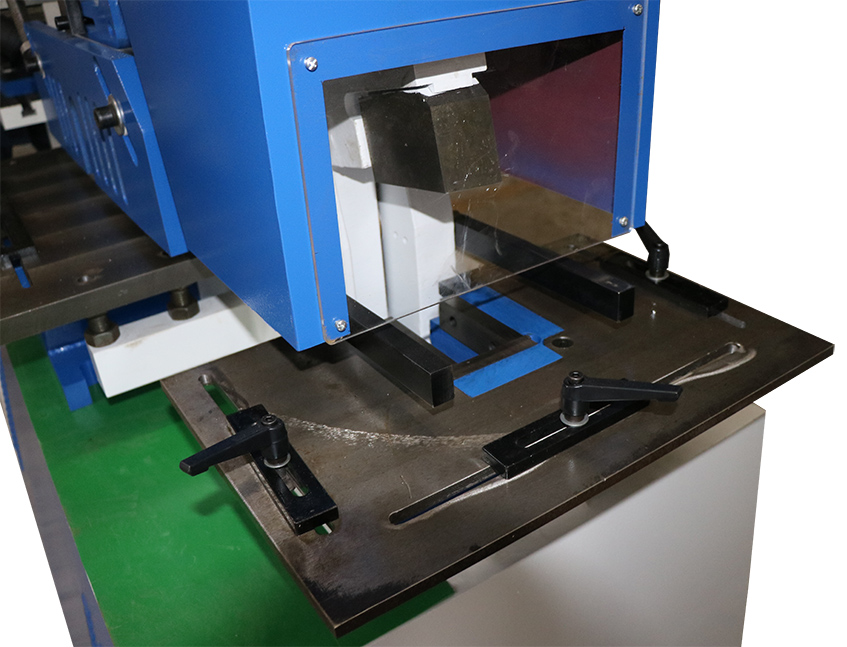

--Notching station

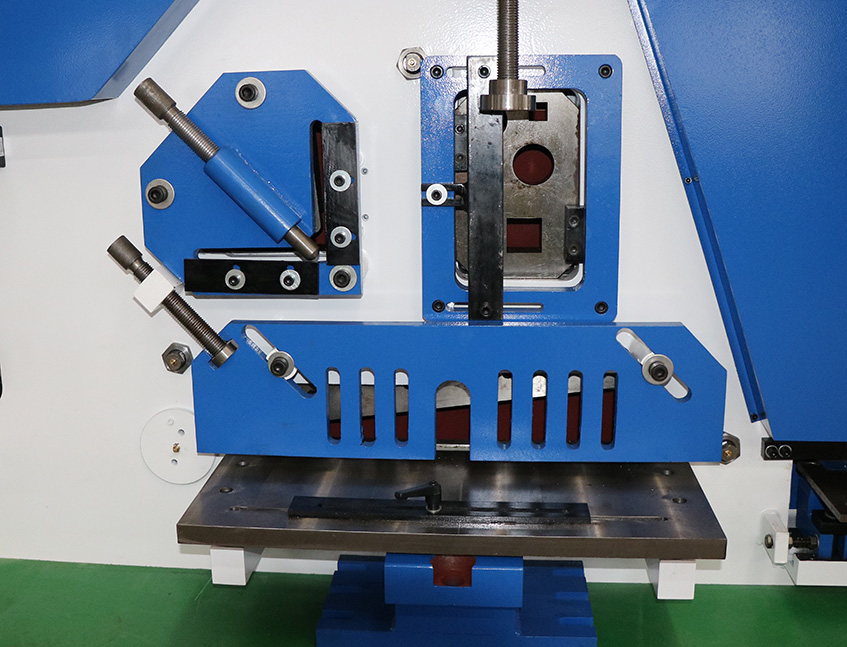

--Cutting station

--Sample

-------
