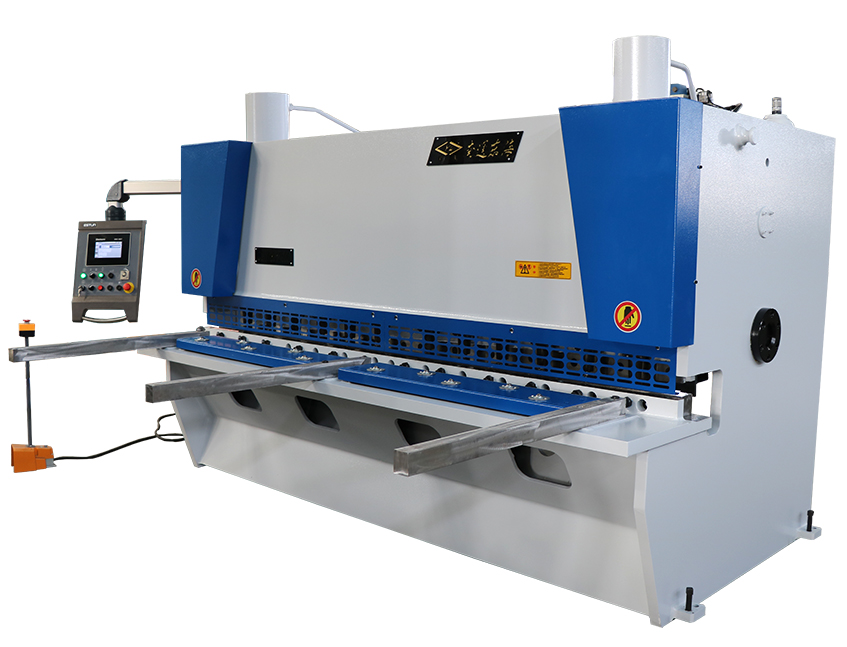

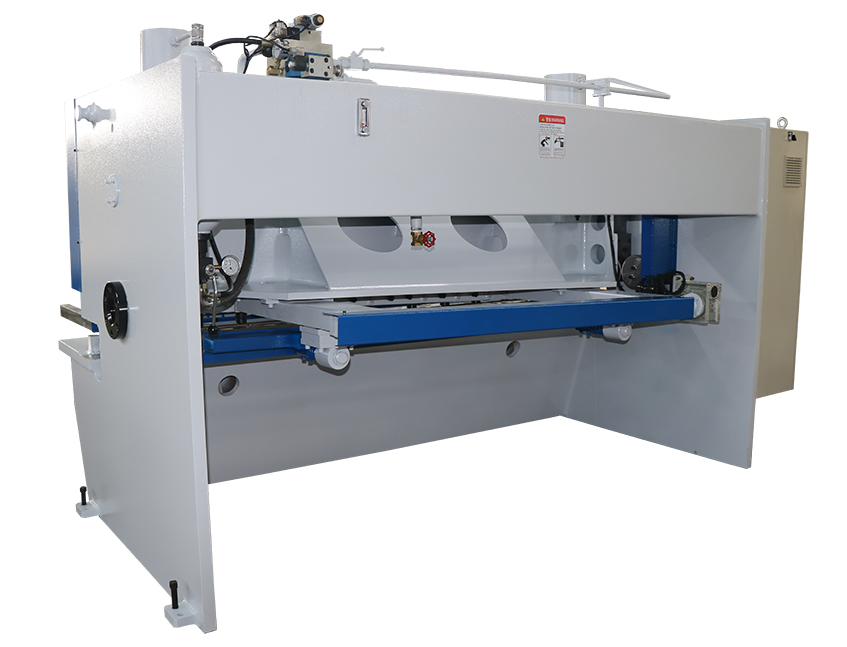

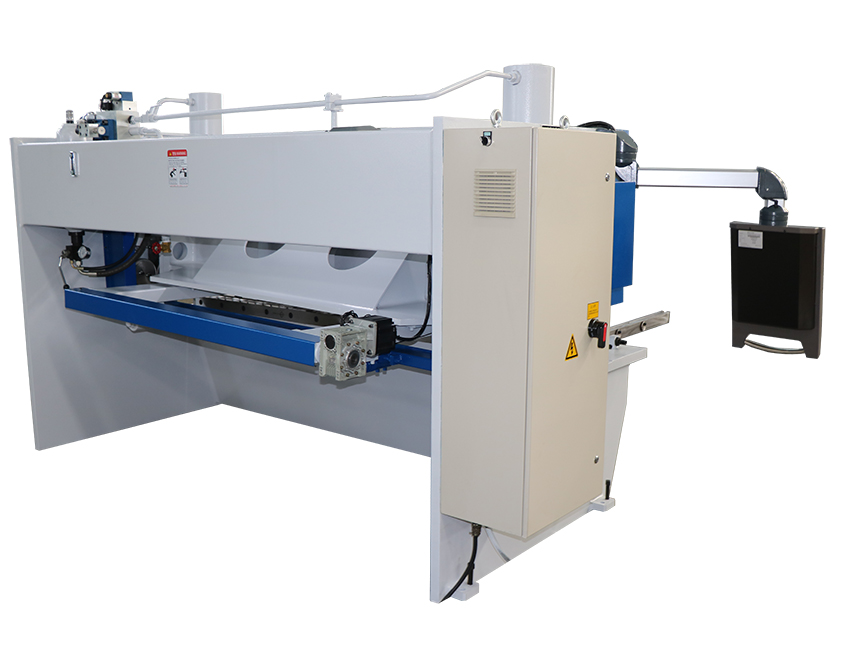

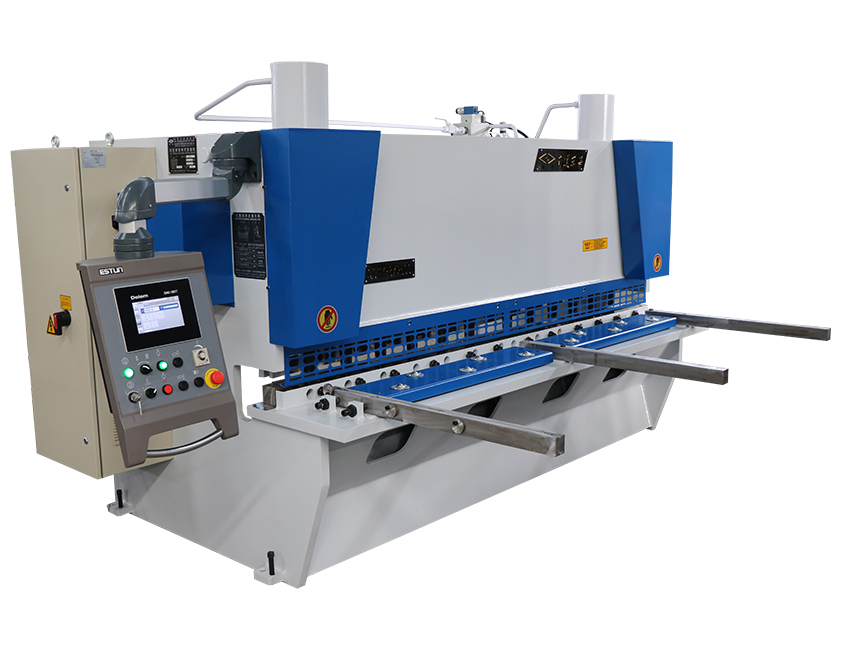

QC11K-8x2500 CNC Shearing Machine
|
Model(QC11K) |
8x2500 |
|
Shearing thickness (mm) |
8 |
|
Shearing width (mm) |
2500 |
|
Cutting plate tensile strength N/mm² |
450 |
|
Shearing angle (°) |
0.5-1.5 |
|
Back gauge range (mm) |
20-600 |
|
Blade length (mm) |
2600 |
|
Throat depth (mm) |
80 |
|
Blade material |
Cr12MoV |
|
Main motor power (KW) |
11 |
|
Stroke (n/min) |
14-30 |
|
Length (mm) |
3270 |
|
Width (mm) |
1560 |
|
Height (mm) |
1950 |
Character
▲ Variable Rake Angle Design Machines.

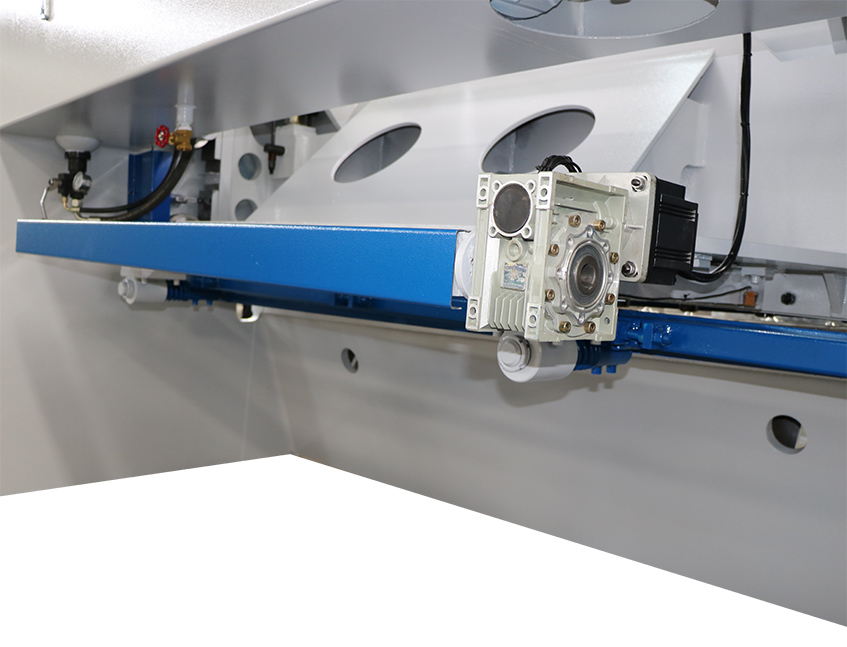

▲ CNC controlled back gauge
▲ Better safety for operator and machine.
▲ Front sheet support.
▲ Squaring arm with steel rule for front gauging.
▲ Hardened Transfer bars mounted on table.
▲ Hold down cylinders.
▲ Foot pedal with emergency stop
▲ Strokes can be controlled according different shearing length
▲ Four edge Cr12MoV Blade suitable to MS & SS.
▲ Laser cutting line
▲ Front feeding table( optional choice)
Guillotine beam

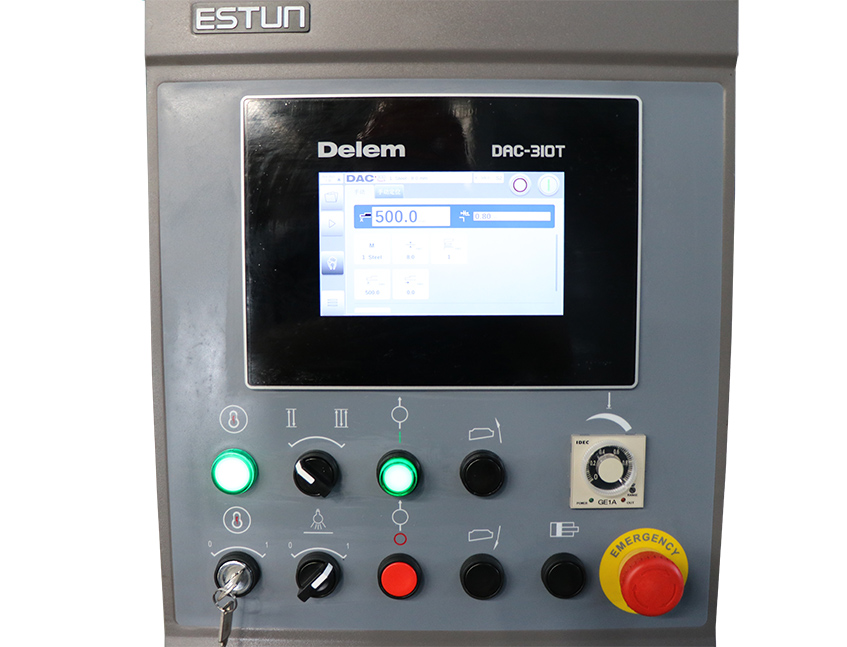

DAC-310T CNC Controller
Powerful hold downs

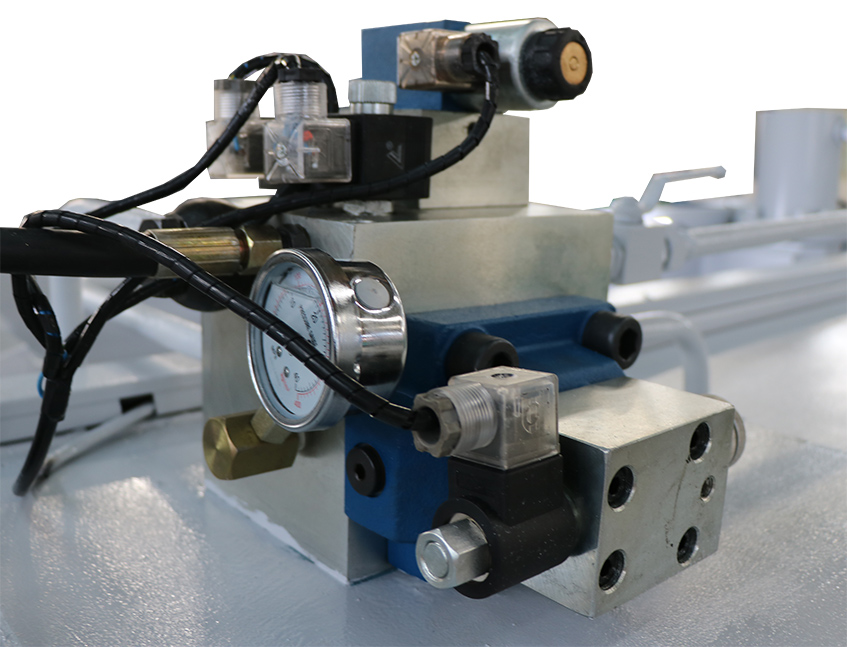

Hydraulic block
Four cutting edges shearing blade
