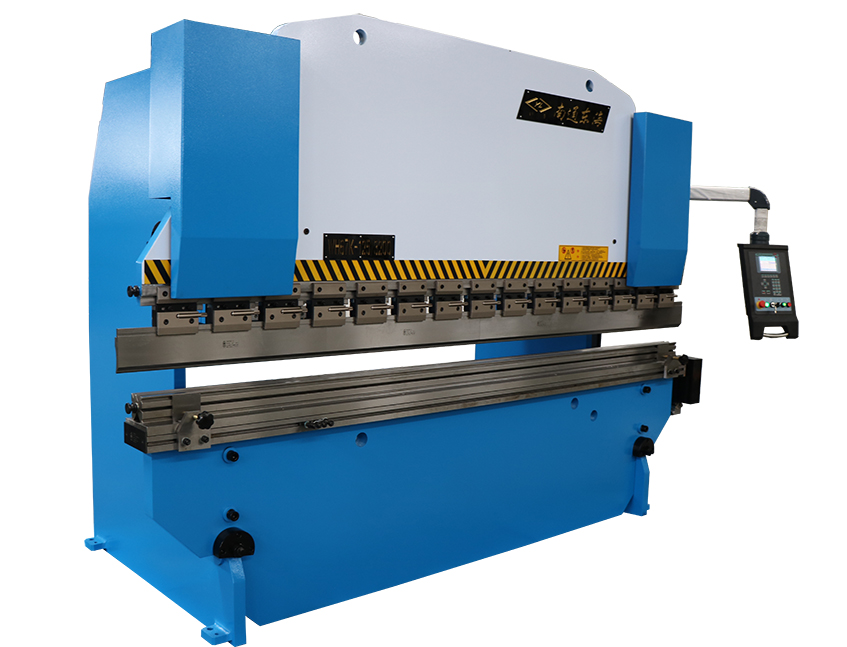

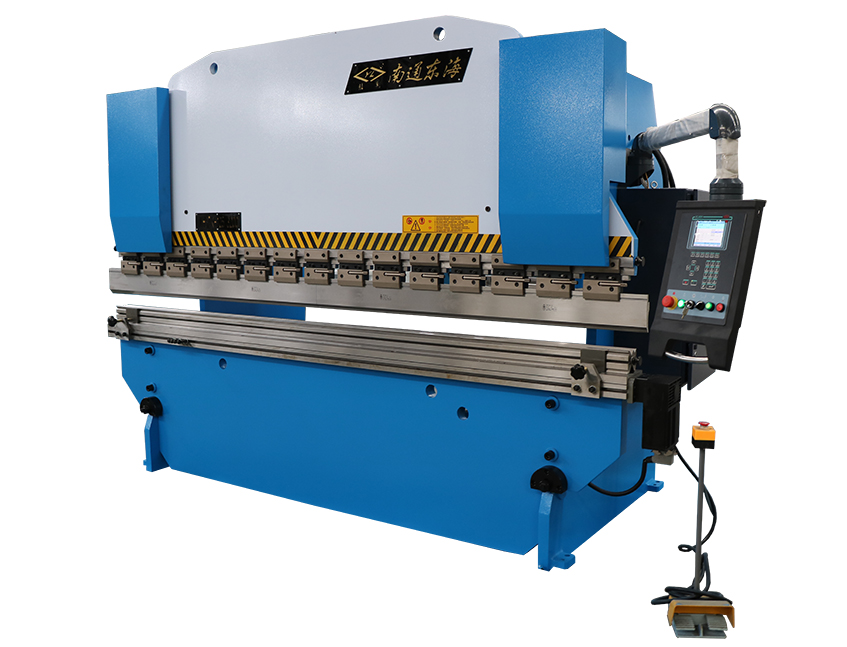

WH67K-125/3200 Torsion CNC  Press Brkae

WH67K series CNC Torsion Press Brake is a torsion synchronous press brake which equipped with the YL60H CNC controlled system, which the Y axis( beam) and X axis (back gauge) is CNC controlled.

Parameters

1	Nominal pressure	1250	KN
2	Bending width	3200	mm
3	Distance between uprights	2500	mm
4	Stroke	150	mm
5	Max. opening height	330	mm
6	Throat depth	320	mm
7	Working table length	3200	mm
8	Approaching speed	80	mm/s
9	Bending speed	8	mm/s
10	Returning speed	80	mm/s
11	Main motor power	7.5	KW
12	Oil pump	16	mr/r
13	Machine length	3300	mm
14	Machine width	1400	mm
15	Machine height	2380	mm	Overland

Features

▲ YL60H (E300) CNC controller

▲ Torsion bar synchronous system

▲ Automatic angle bending

▲ Beam position is automatically calculated

▲ SIEMENS BEIDE motor

▲ SUNNY quiet pump

▲ Three operation model( Jog,Single,Continuous)

▲ Y-X axes CNC controlled, servo drive

▲ International quality hydraulics system

▲ Accurate & fine beam position control by micro limit switch.

▲ Mechanical crowing table

▲ Ball screw & linear rail back gauge

▲ Manual operated R axis

▲ Front sheet support

▲ Punch quick clamping system

▲ 4-face multi-V die

▲ mm/inch

▲ English language

--YL60 CNC controller

The YL60H is a dedicated CNC (numerical control) device for the Torsion Press Brake, which combines the expertise of many years and provides a complete economic solution for the Torsion Bending Machine with the support of unique drive control technology.

The YL60H device adopts the integral product structure, built-in high-performance A8 processor, and configures 5.6 inch, 640 × 480 dot matrix, 18 full color display screen, and integrated IO ports, serial ports and USB port.

The YL60H device is designed to be operated via the buttons on the front panel. At the same time, the pump switch and the emergency stop button are installed in the customized suspension cabinet to meet the user's requirements. Its friendly interface, easy to use, practical function.







--Mechanical crowing table

--Punch & die

--Back gauge

--Torison bar

--Pipe Connection

--Automatic Crowing Table as Optioanl Choose

--Servo motor as Optional Choose

--Motorized R axis as Optional Choose
