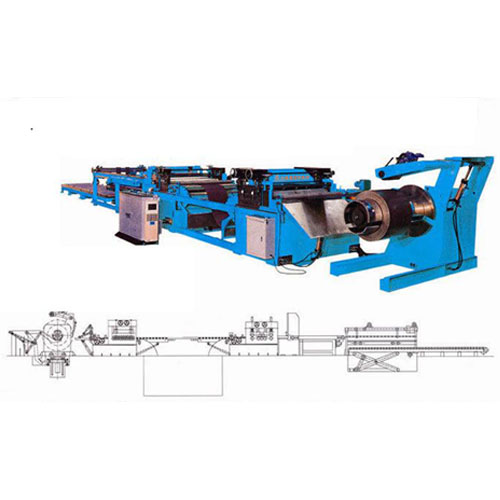

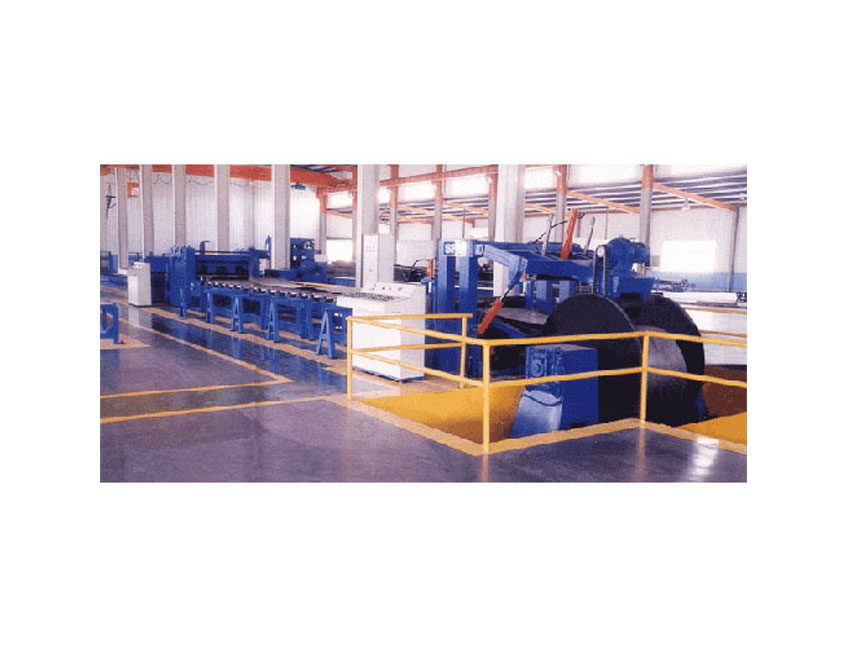

Uncoiling and leveling Machine is a complete industrial line.

Structure

1) Hydraulic feeding table

2) Hydraulic uncoiling machine

3) Hydraulic traction machine

4) Tail feeding & leveling machine

5) Material transferring table

6) Position limited table

7) Leveling machine

8) Length-scaling table

9) Plate tail feeding machine

10) Shearing machine

11) Conveyor

12) Conveyor for stacking table

13) Stacking table

14) Material tidying device

15) Hydraulic system

16) Electric system

Detail instruction

Hydraulic feeding table

It’s organized by the main frame, conveying rollers and driving system.

The main frame is welded by square pipes; Main motor supply the power through the reducer and chains to the conveying rollers to transferring the material to the leveling machine

Hydraulic uncoiling machine

It’s organized by the base, spacing part, guider and adjusting system.

It’s adjusted by manual, turn the hand wheel to let the spacing part to move on the guider through the material width direction. It will help the material to feed into the leveling machine as the right position

Hydraulic traction machine

It’s organized by the frame, material supporting equipment, material pressing equipment and driving system. The material supporting equipment and material pressing equipment are hydraulic driving; it can help to feed the end of the material into the leveling machine.

Tail feeding & leveling machine

It’s organized by the frame, feeding rollers, leveling rollers and the rollers driving system.

Feeding roller and leveling rollers are drove by cylinder. The main driving force is supplied by the motor through the cycloidal gear reducer.

The leveling rollers are the drove rollers, it can help to level the trail of the material and feed the material to the leveling machine

Material transferring table

It’s organized by the frame and the drove rollers. It can help to transfer the material from the tail feeding & leveling machine to the leveling machine

Position limited table

It’s organized by frame, supporting rollers and guide wheels. It can help to feed the material into the high accuracy leveling machine without any deviation

Leveling machine

It’s organized by the leveling rollers, leveling roller supporting box, supporting rollers and upper supporting rollers’ box

-- It’s adopt 11 leveling rollers ( 5 rollers upper + 6 rollers lower)structures

--Material of the leveling roller is 40CrMo, normalizing treatment, thermal refining and quenching treatment (HRC60), with good strength, rigidity and hardness.

--The leveling rollers’ bearing adopt the heavy duty rolling mill bearing and plane bearing  to avoiding any movement to keep the leveling accuracy

--Leveling roller supporting box is the whole casting structure, drawing temper

--Supporting roller parts

Supporting roller parts is organized by the supporting box, supporting axis, supporting sleeve and adjusting equipment

--Two groups of supporting roller are equipped under the lower leveling rollers and another two groups of supporting rollers are equipped on the upper leveling rollers, both of the two groups supporting rollers can be adjusted as the compensation use, it not only help to improve the leveling accuracy but also help to prolong the working life.

--Adjusting equipment is slope structure, adjusted by manual

--Upper supporting roller equipment is welded by steel plate.

--Adjusting equipment

It’s organized by driving equipment, warm and gear and feed screw nut.

The motor drive the upper roller frame ascending or descending through the warm and gear and feed screw nut. It can be adjusted according the different thickness and discharging angle. Two optional adjusting way, one is adjusted by motor another one is adjusted by manual. The adjusting value can be set and be showed out.

--Central lubricating system

Length-scaling table

It’s organized by the frame, supporting rollers, scaling rollers and driving equipment.

It adopts the rotary encoder send signal to control the length of the material

.

Plate tail feeding machine

It can help to lead the end of the plate feed into the shearing machine

Shearing machine

Conveyor

It organized by the base, conveying rollers, conveying belt and driving part. It can help to convey the material.

Conveyor for stacking table

It’s organized by the frame, transferring rollers, jacking system and driving system. It can help to feed the material to the stacking table.

Stacking table

It helps to stack the material.

Material tidying device

It’s organized by one group lengthways limit-tidying device and three groups’ crosswise limit-tidying device. The limit device and tidying device can be manually adjusted according different wide material,

Hydraulic system & pneumatic system

Electric system
