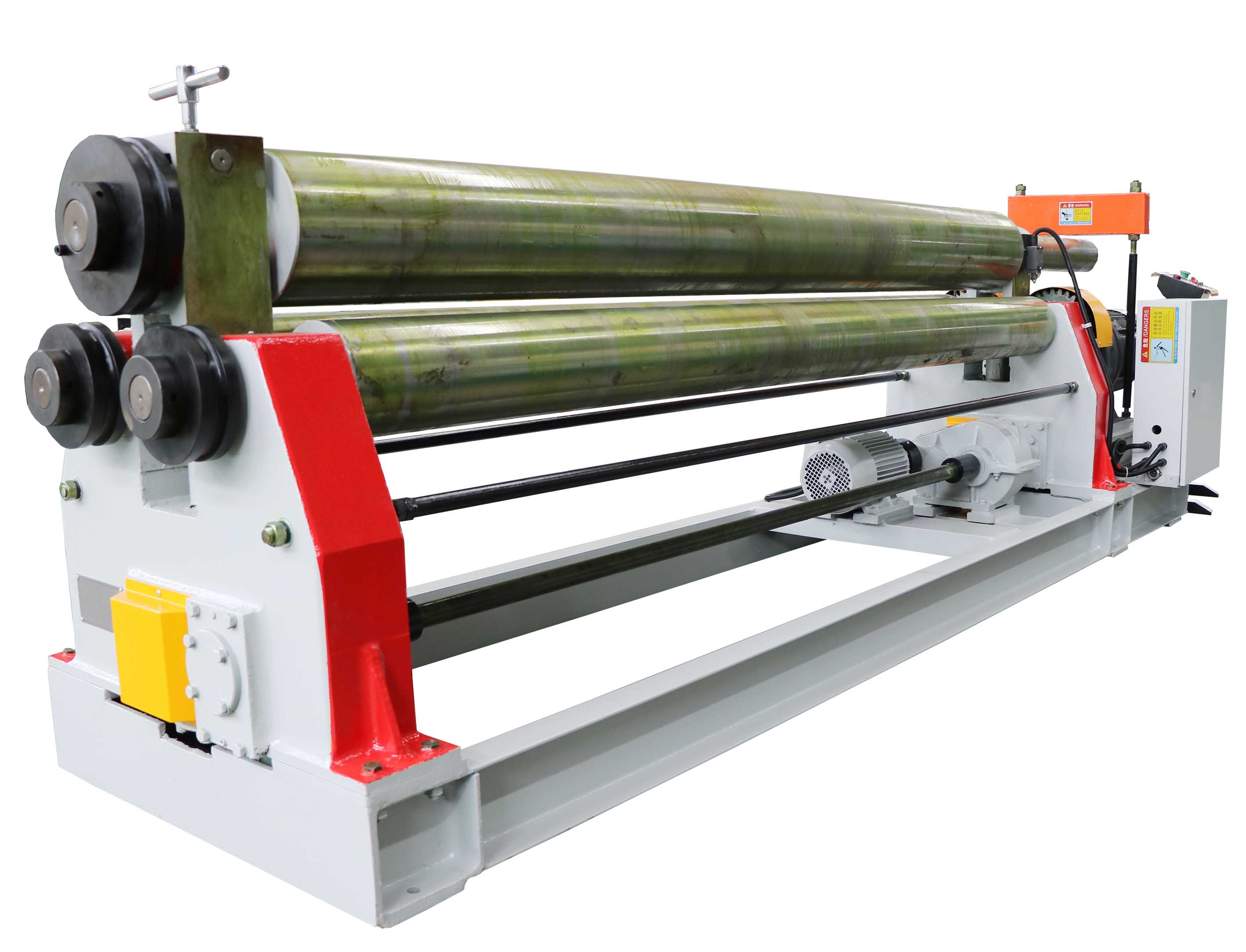

W11-10x2500 Mechanical Plate Bending Machine

10x2500 plate rolling machine

Parameter



W11-10x2500

Max. rolling thickness

10mm

Max. rolling width

2500mm

Min. rolling diameter at full loading

600

Yielding limited

245MPa

Upper roller diameter

235mm

Lower roller diameter

180mm

Central distance between lower rollers

280mm

Main motor power

7.5KW

Shift motor power

4KW

--Features

 highly productive, accurate, and economical.

Easy operating rolling machine, energy-efficient

Mechanical type, three rollers

Mechanical drive

The two lower rollers are the driving rollers, and the upper roller is drove roll

W11-10x2500 roll bending machine

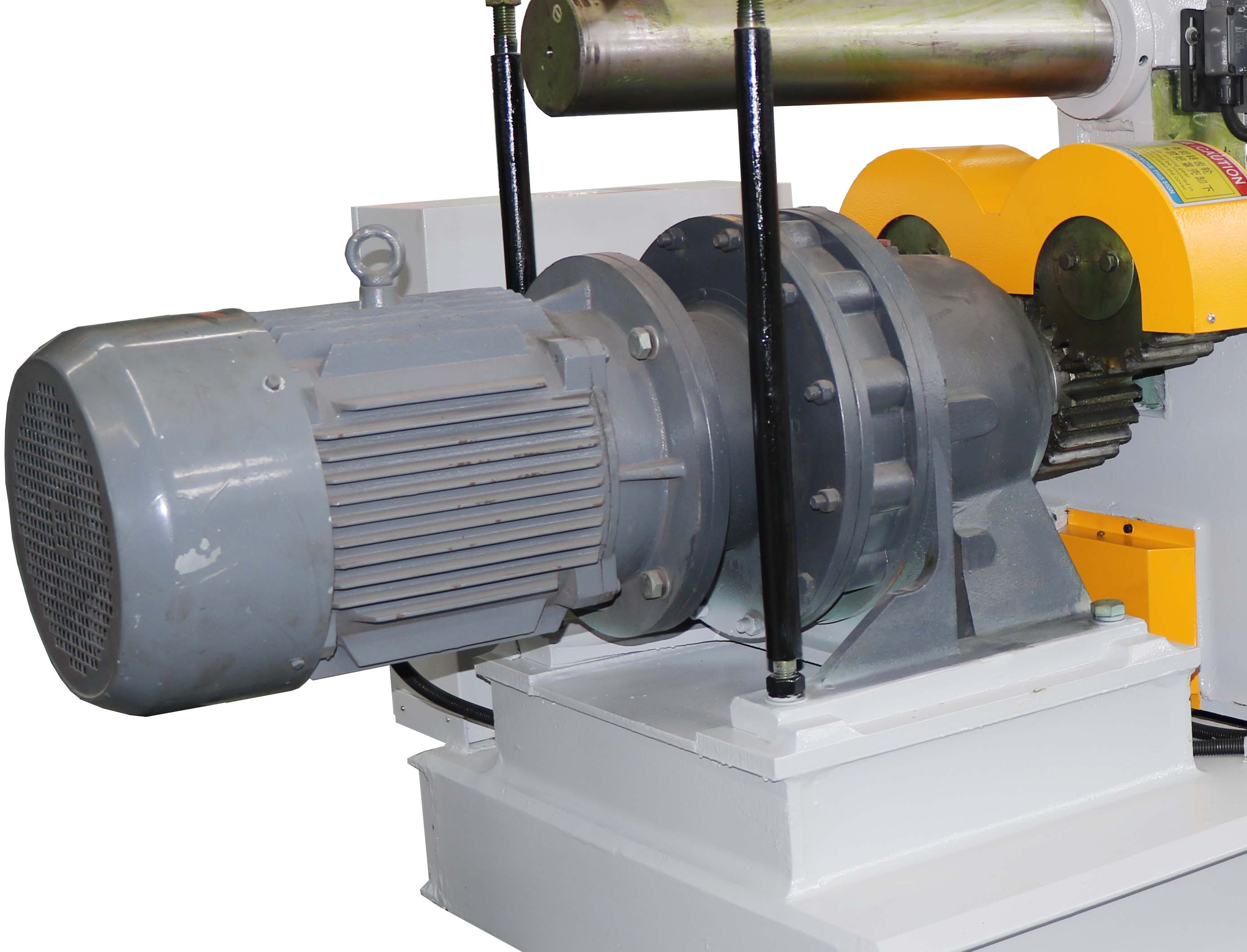

--Main driving motor

Main motor and main gear box, help to supply stability power

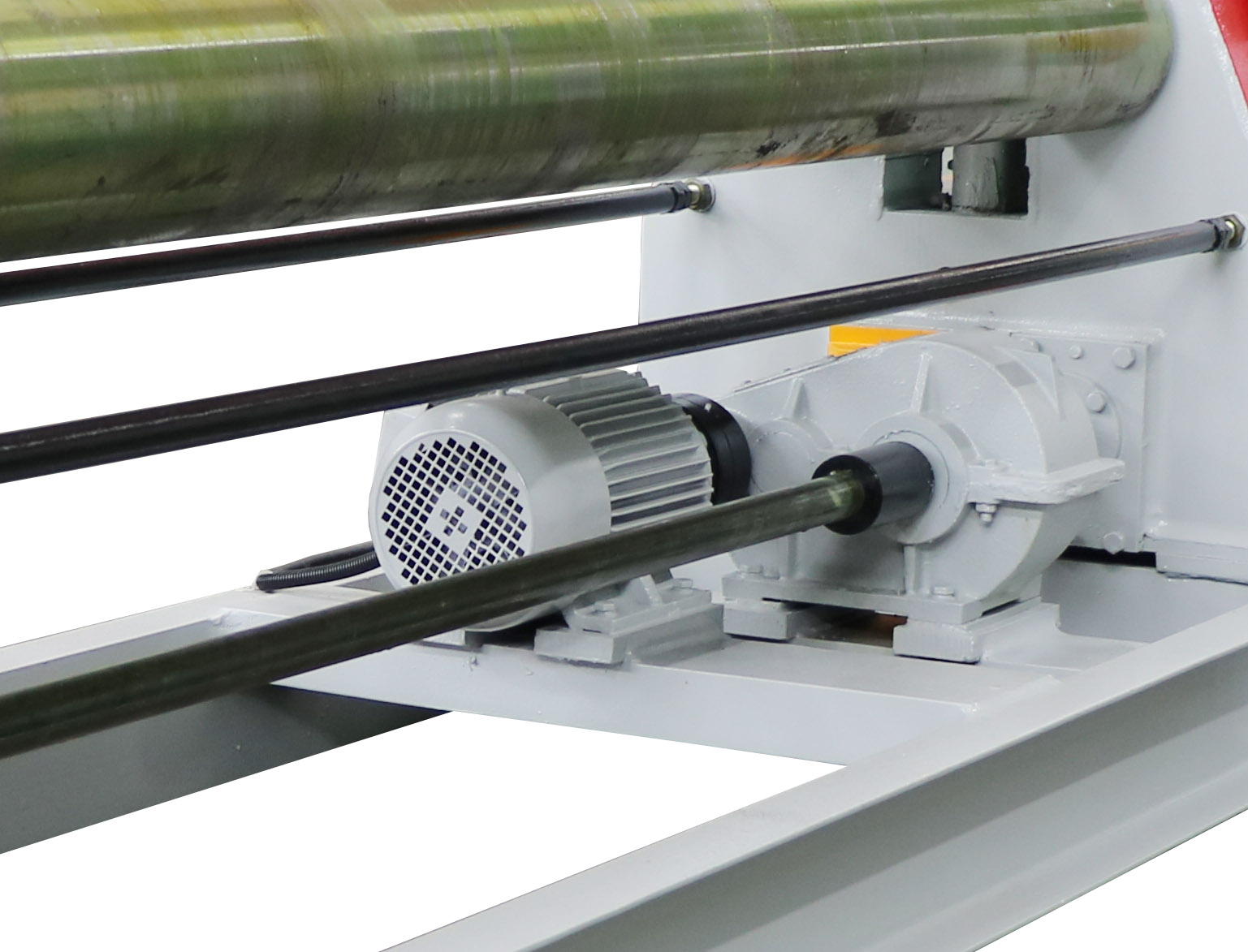

Assistant motor and gear box to supply force to let the upper roller up and down

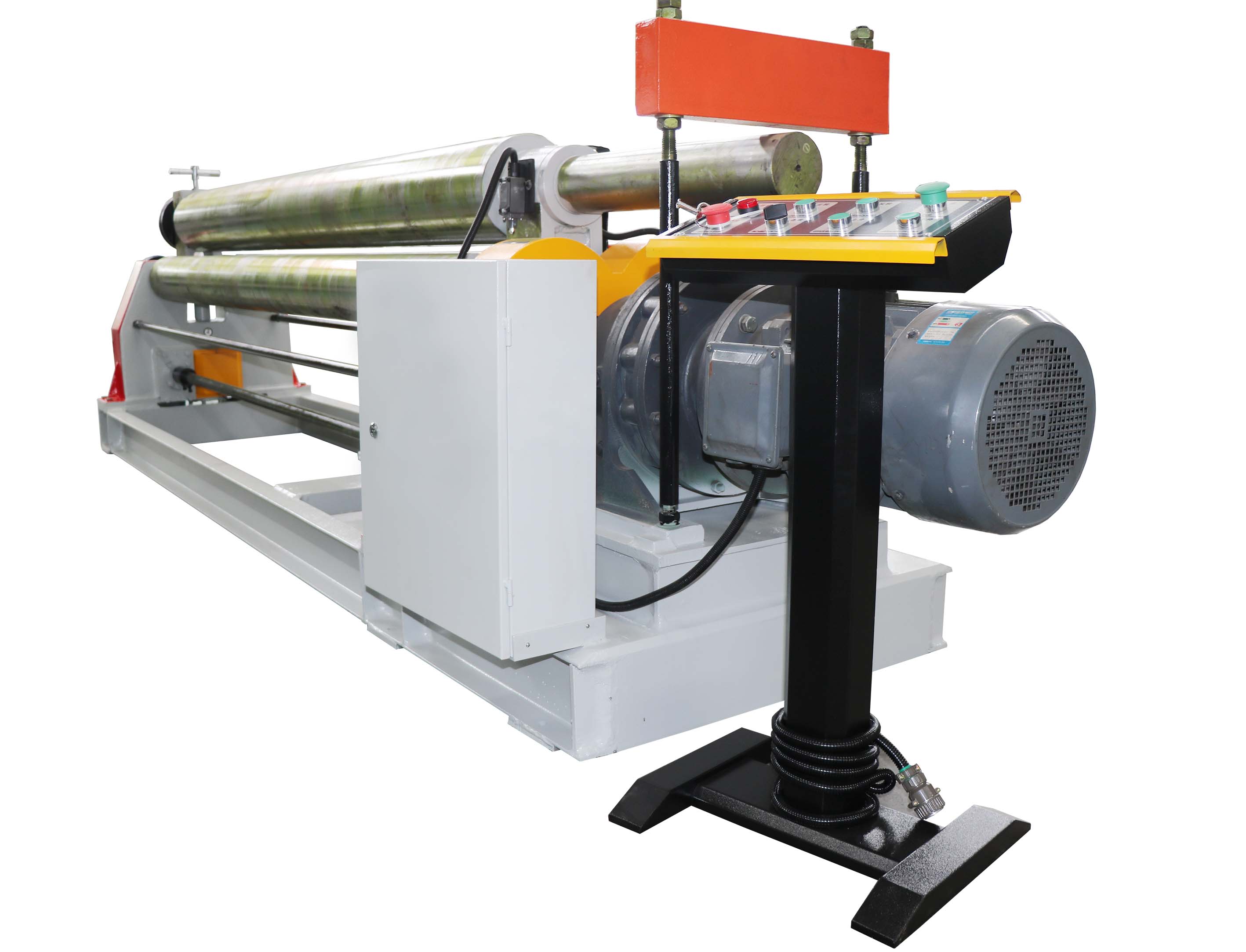

Separate control panel, all of the stroke or action are controlled by the according button, easy to be operated

Optional choice

--Cone bending degice

cone bending device

--hydraulic reversal frame

hydraulic reversal frame

--profile bending tool

profile bending tool

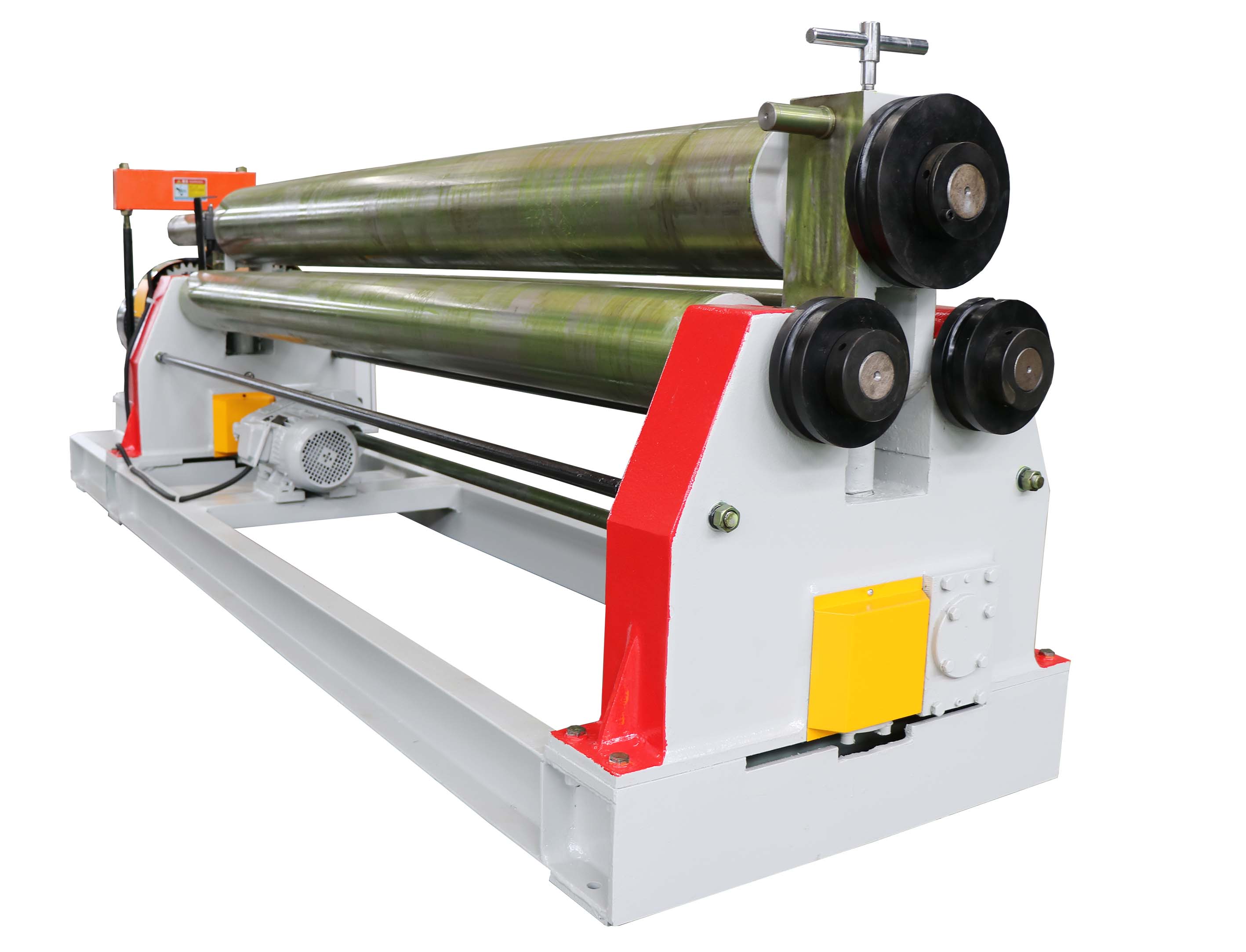

W11-10x2500 mechanical plate bending machine

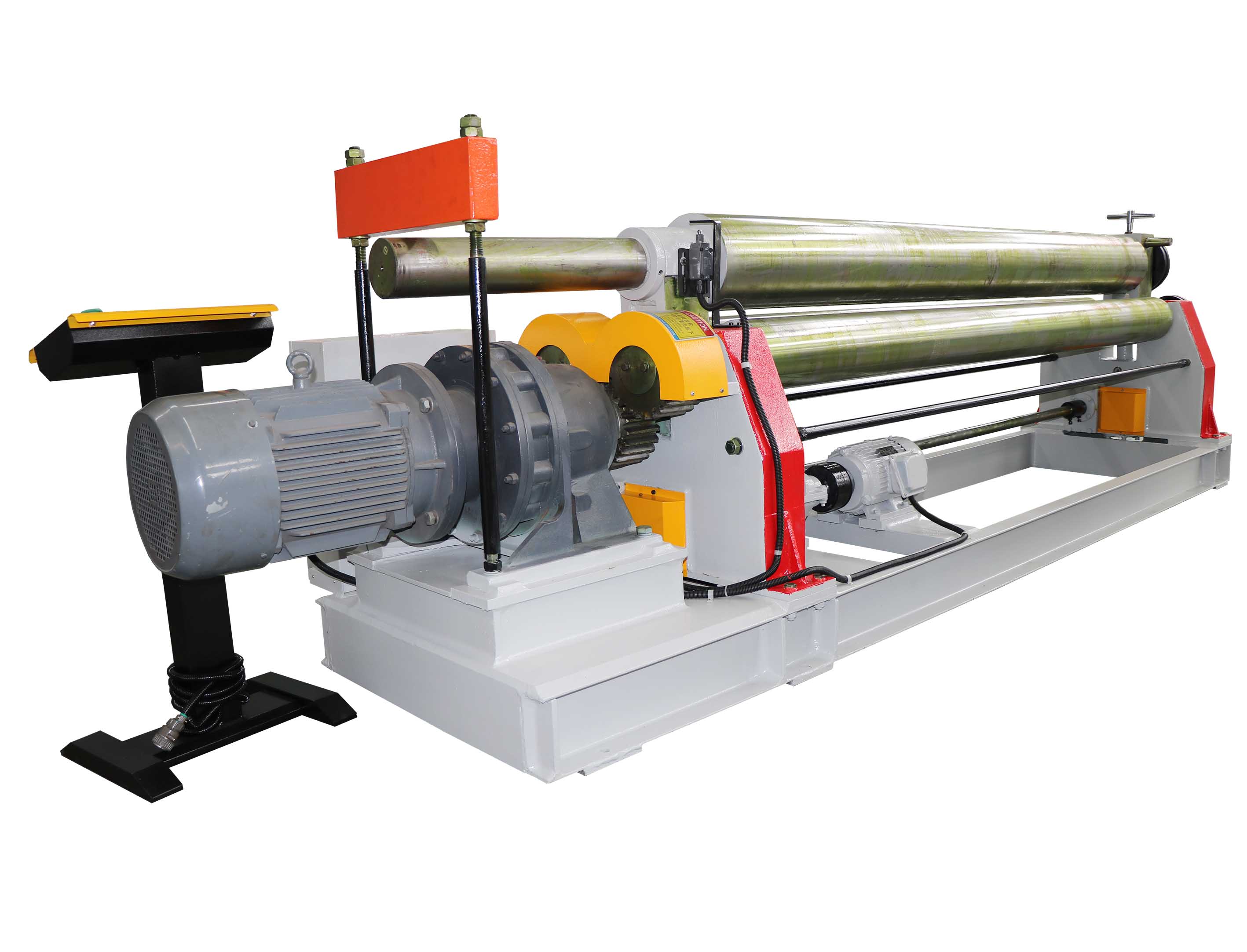

W11-10x2500 mechanical roll bending machine

10x2500 roll bending machine
