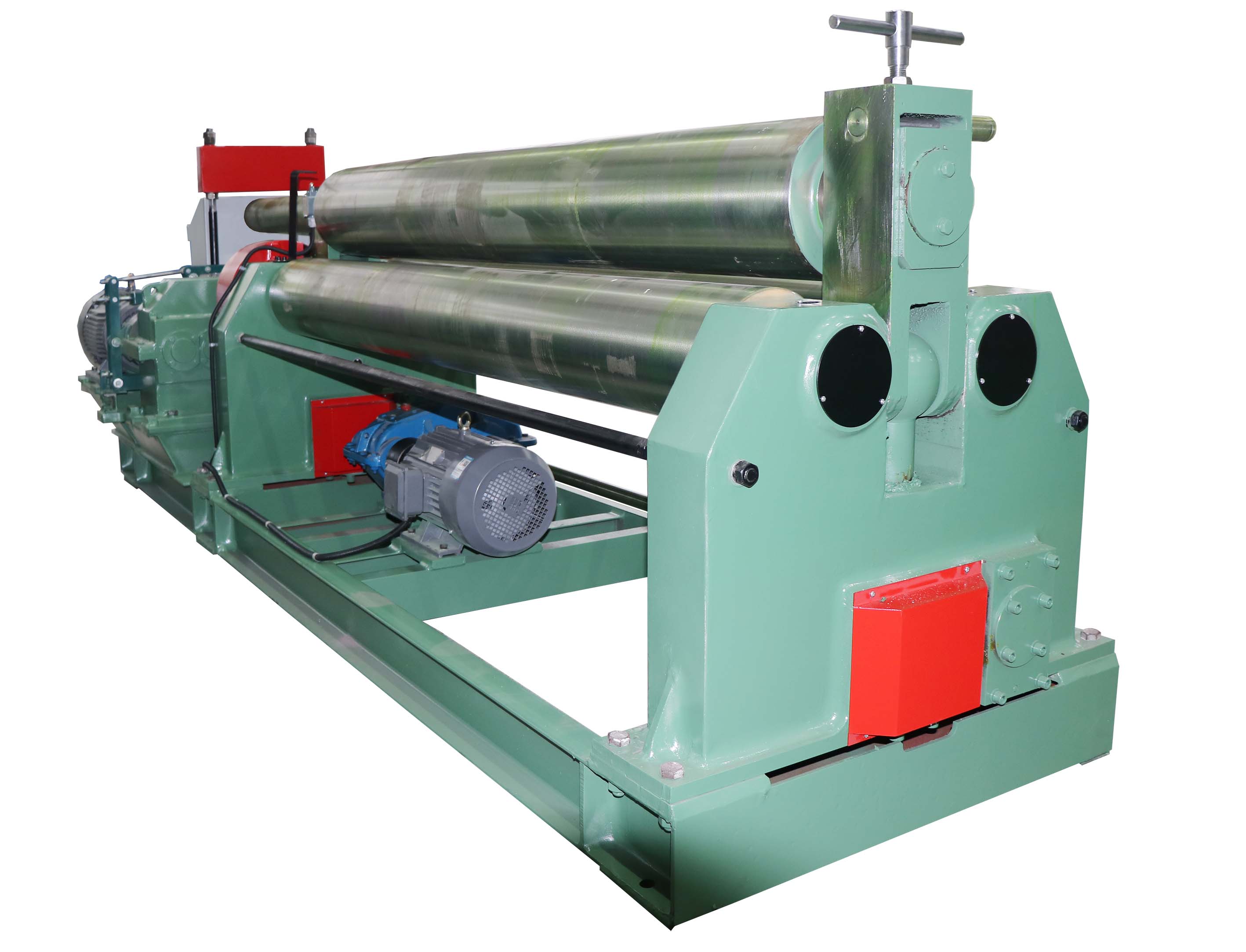

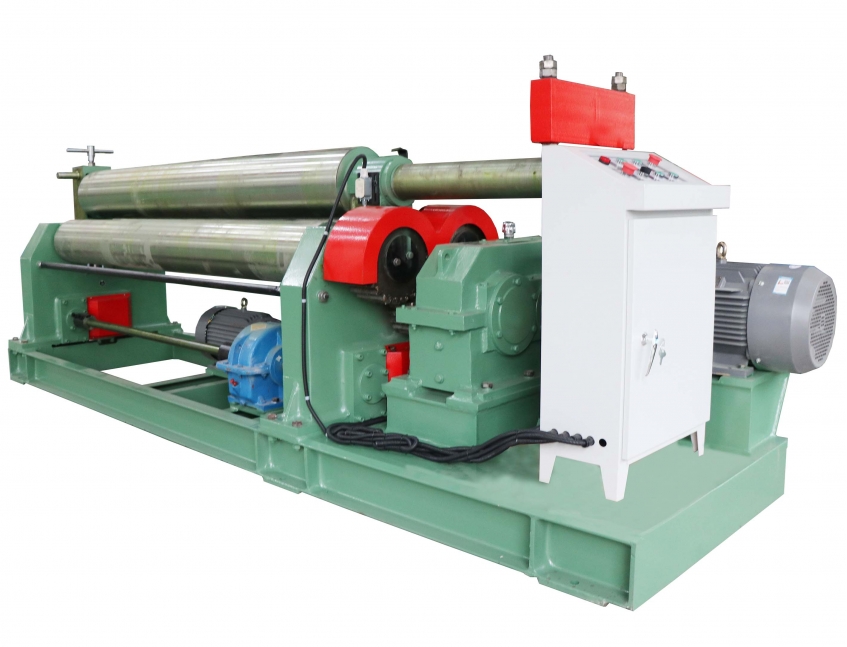

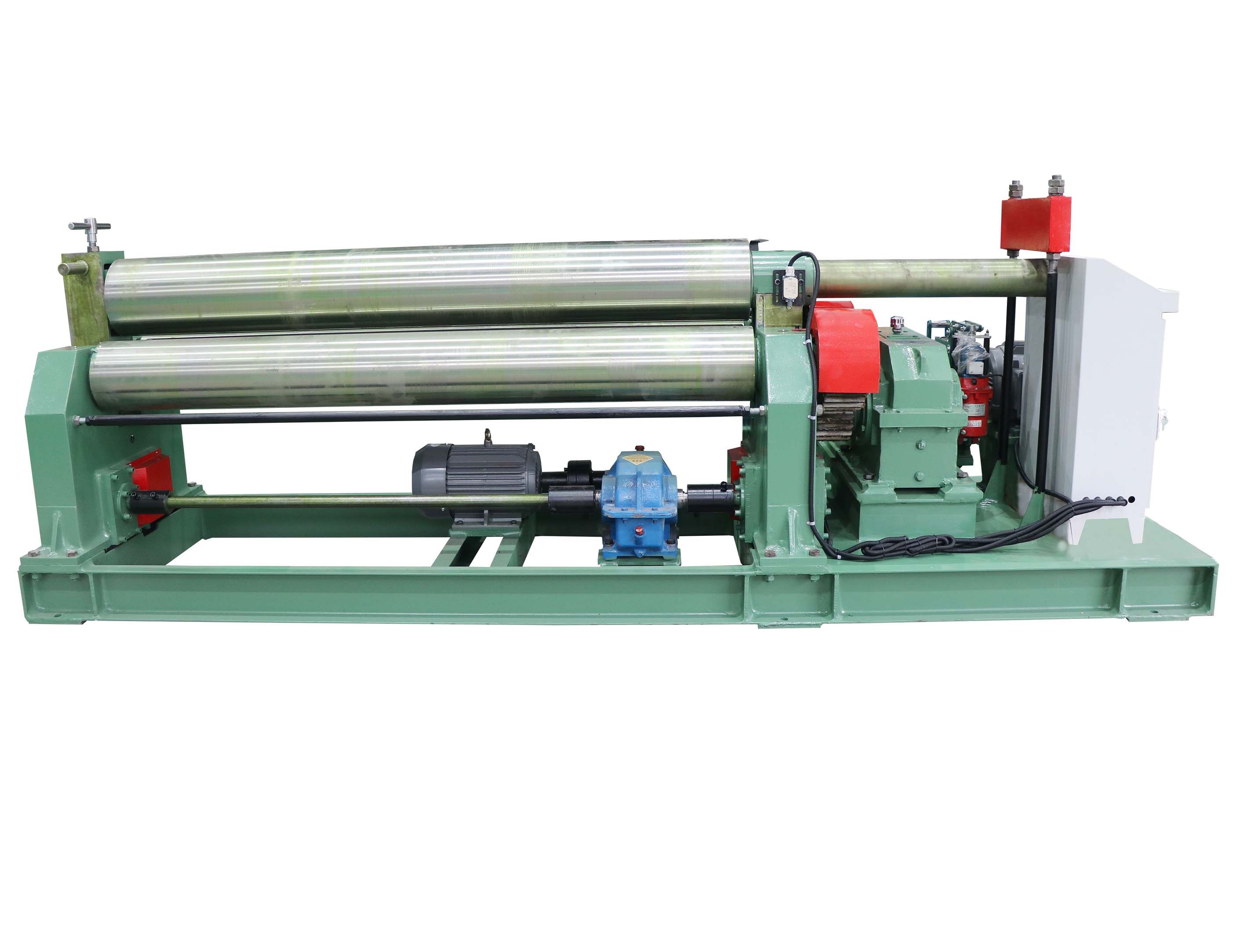

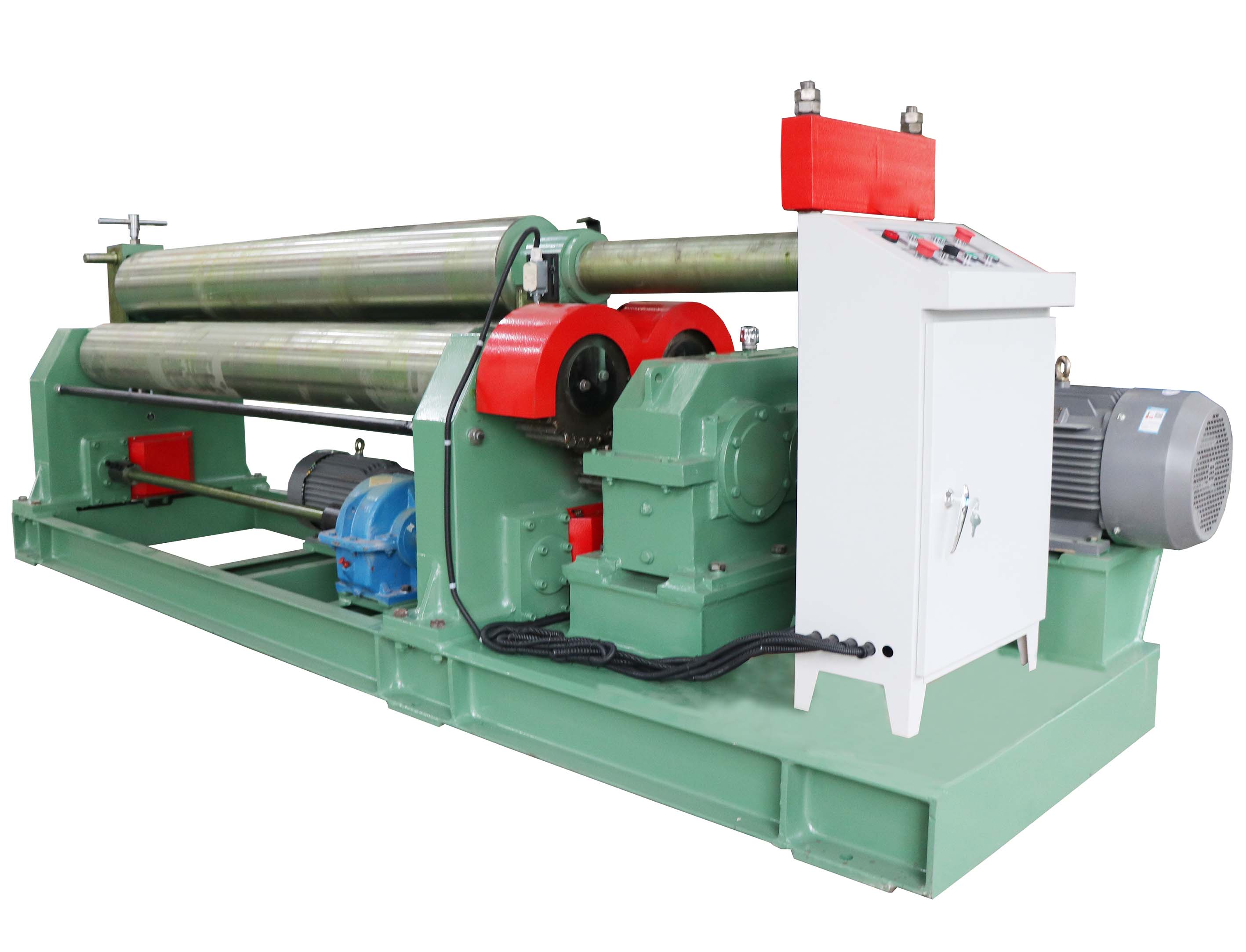

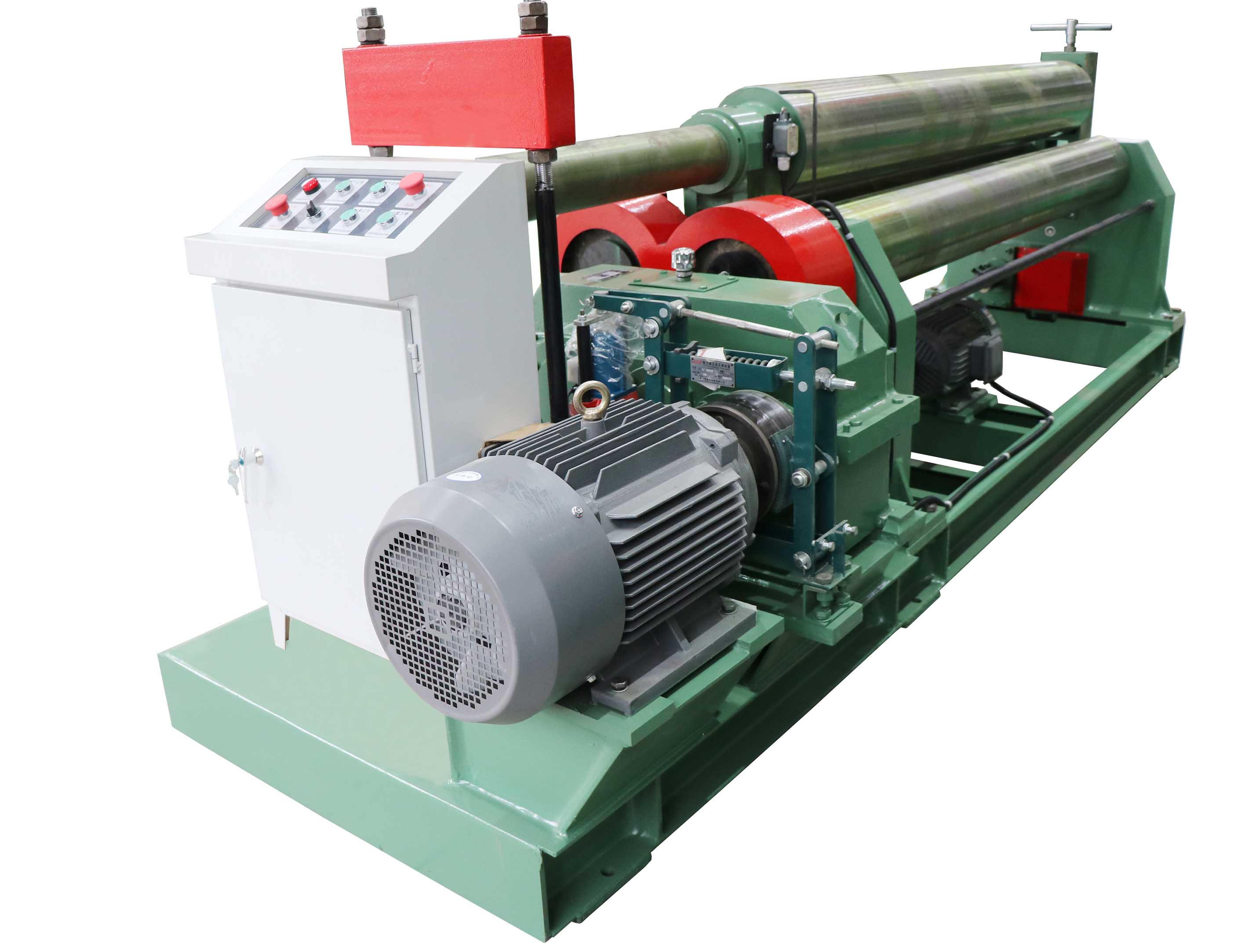

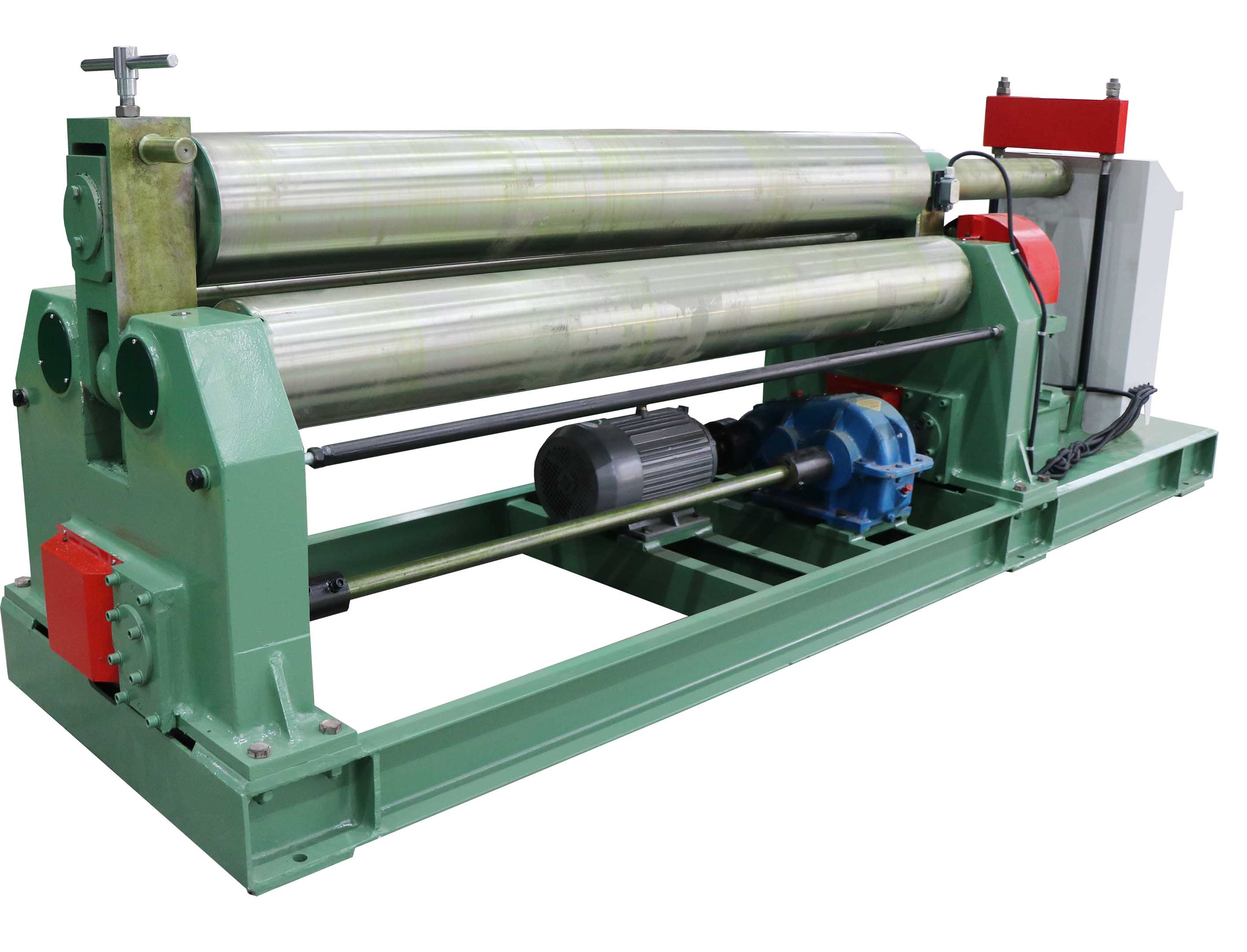

W11-16x2000 Mechanical Plate Bending Machine
W11-16x2000 Mechanical Plate Bending Machine W11-16x2000 Mechanical Plate Bending Machine W11-16x2000 Mechanical Plate Bending Machine W11-16x2000 Mechanical Plate Bending Machine W11-16x2000 Mechanical Plate Bending Machine W11-16x2000 Mechanical Plate Bending Machine
  • Parameters
  • Pictures
  • You May Like
  • Inquiry Now

W11-16x2000 Mechanical Plate Bending Machine

W11-16x2000 mechanical plate bending machine

Parameter



W11-16x2000

Max. rolling thickness

16mm

Max. rolling width

2000mm

Min. rolling diameter at full loading

650

Yielding limited

24MPa

Upper roller diameter

255mm

Lower roller diameter

215mm

Central distance between lower rollers

320mm

Main motor power

7.5KW

Shift motor power

4KW

--Features

 highly productive, accurate, and economical.

Easy operating rolling machine, energy-efficient

Mechanical type, three rollers

Mechanical drive

The two lower rollers are the driving rollers, and the upper roller is drove roll

W11-16x2000 plate rolling machine

--Main driving motor

Main motor and main gear box, help to supply stability power

Assistant motor and gear box to supply force to let the upper roller up and down

Separate control panel, all of the stroke or action are controlled by the according button, easy to be operated

Optional choice

--Cone bending degice

cone bending device

--hydraulic reversal frame

hydraulic reversal frame

--profile bending tool

profile bending tool

W11-16x2000 mechanical plate bending machine

16x2000 three rollers plate bending machine

16x2000 roll bending machine

16x2000 plate rolling machine
