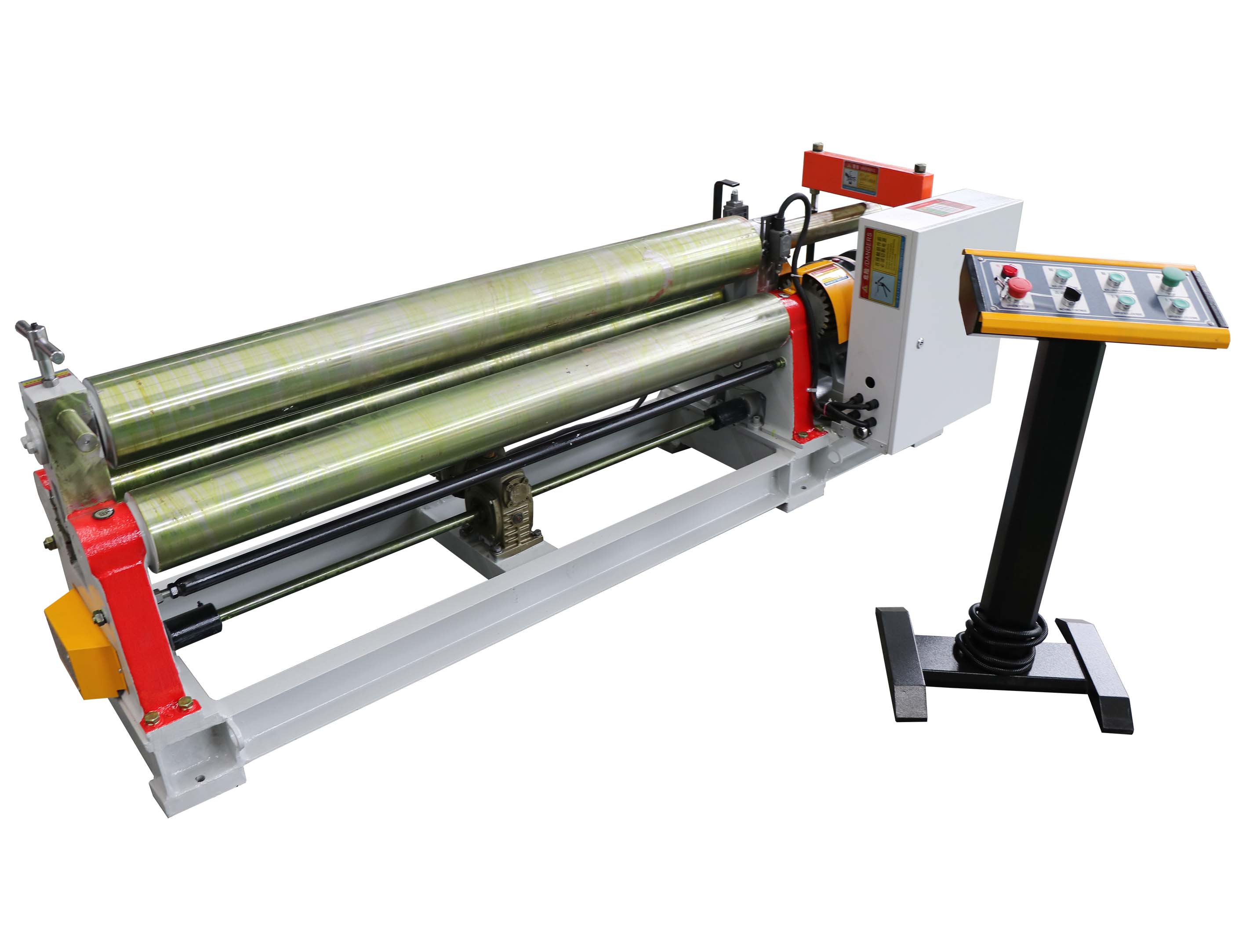

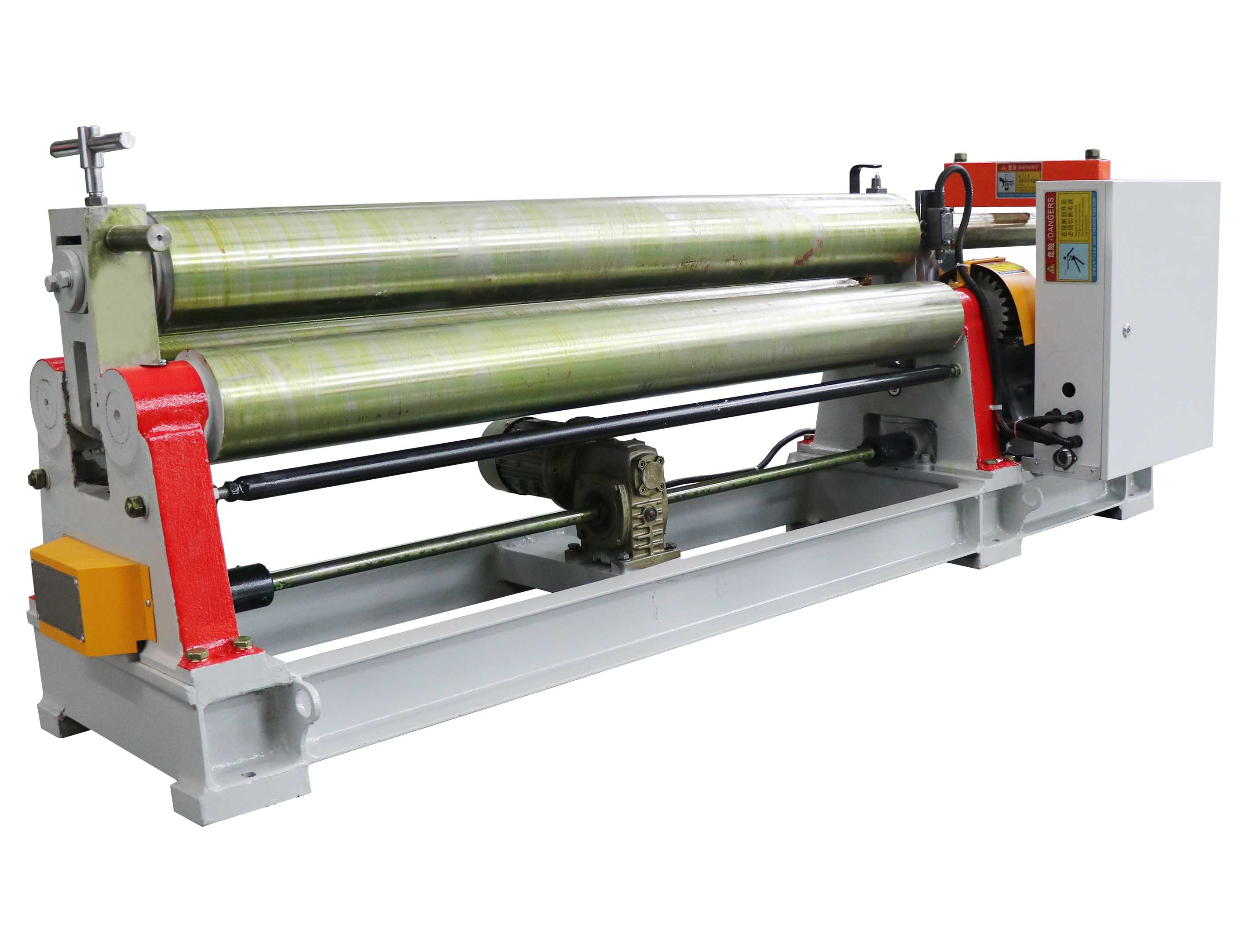

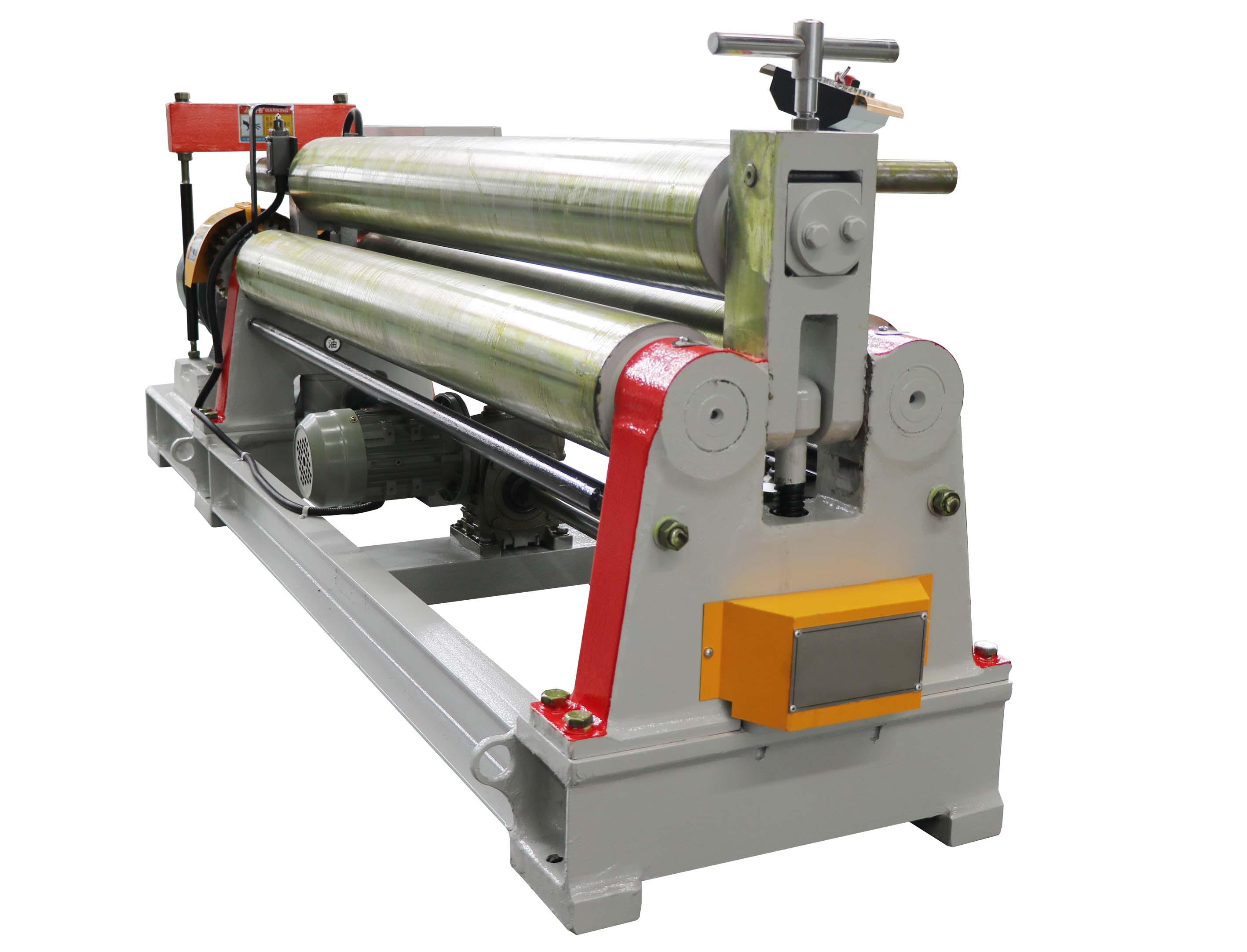

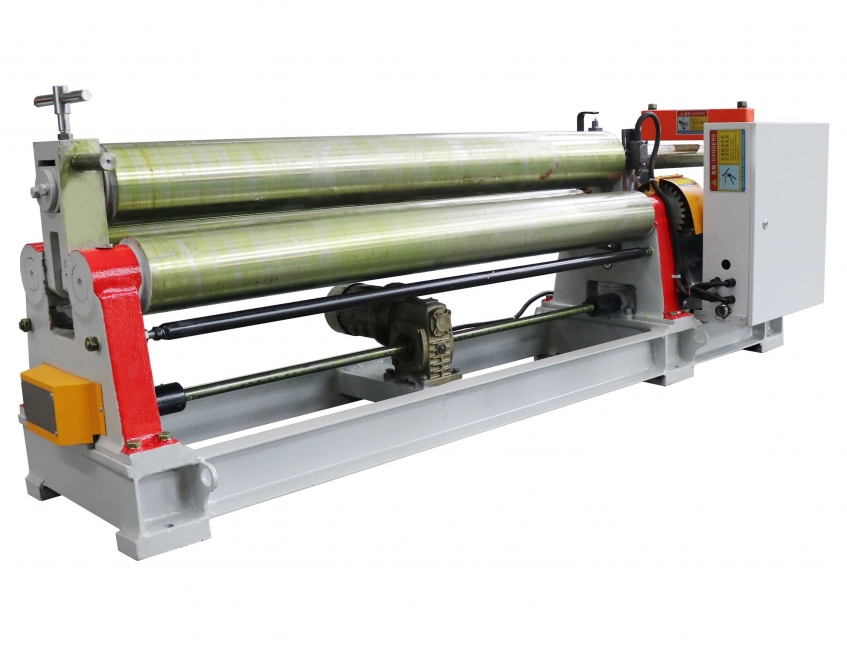

W11-6x1500 Mechanical Plate Bending Machine

6x1500 plate rolling machine

Parameter



W11-6x1500

Max. rolling thickness

6mm

Max. rolling width

1500mm

Min. rolling diameter at full loading

550

Yielding limited

245MPa

Upper roller diameter

155mm

Lower roller diameter

135mm

Central distance between lower rollers

220mm

Main motor power

4KW

Shift motor power

1.5KW

--Features

 highly productive, accurate, and economical.

Easy operating rolling machine, energy-efficient

Mechanical type, three rollers

Mechanical drive

The two lower rollers are the driving rollers, and the upper roller is drove roll

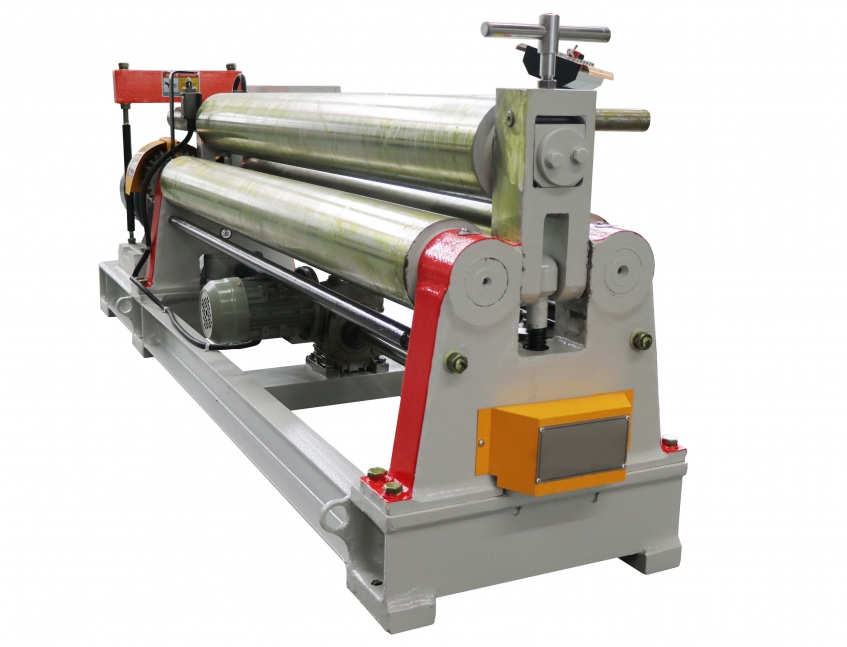

W11-6x1500 mechanical plate bending machine

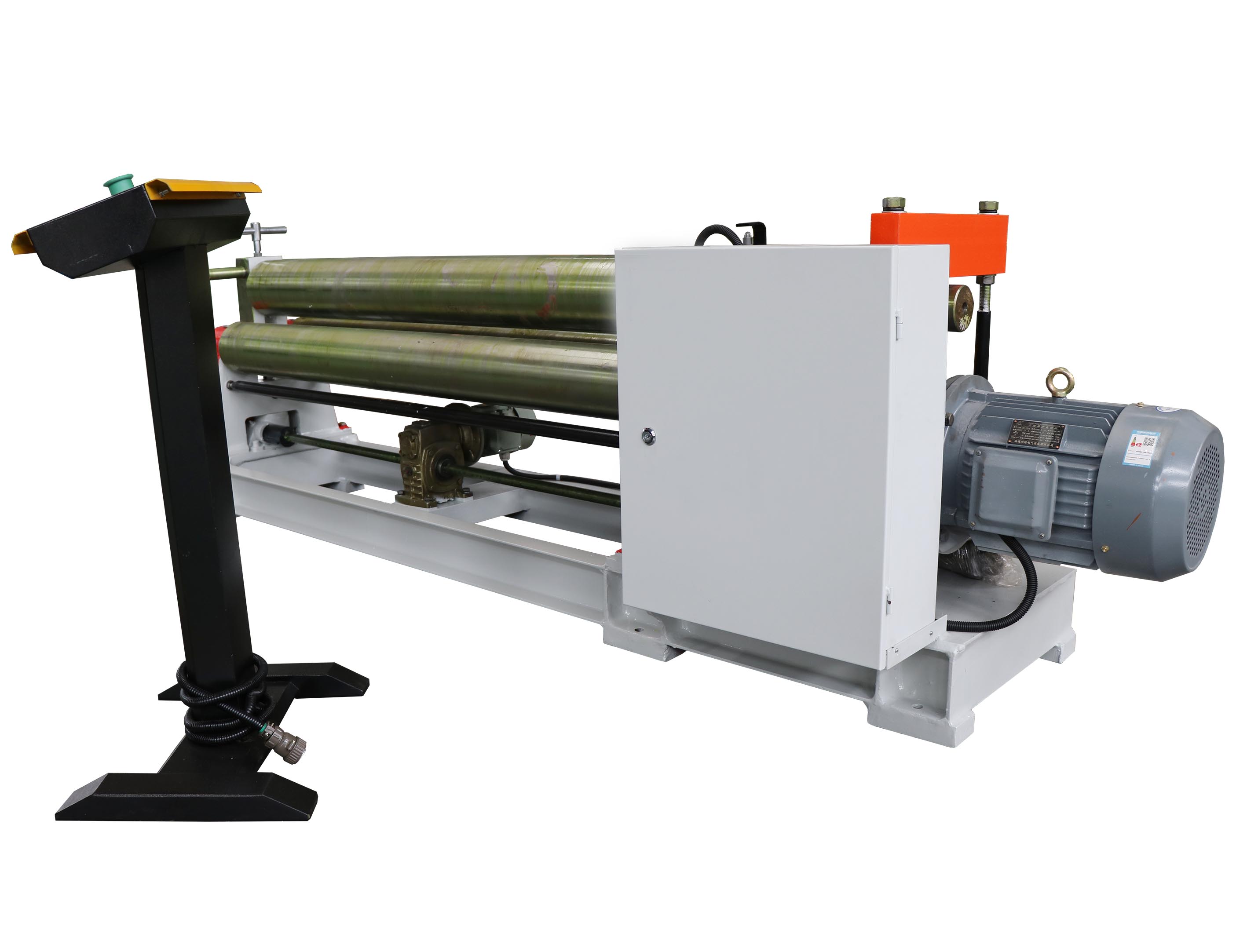

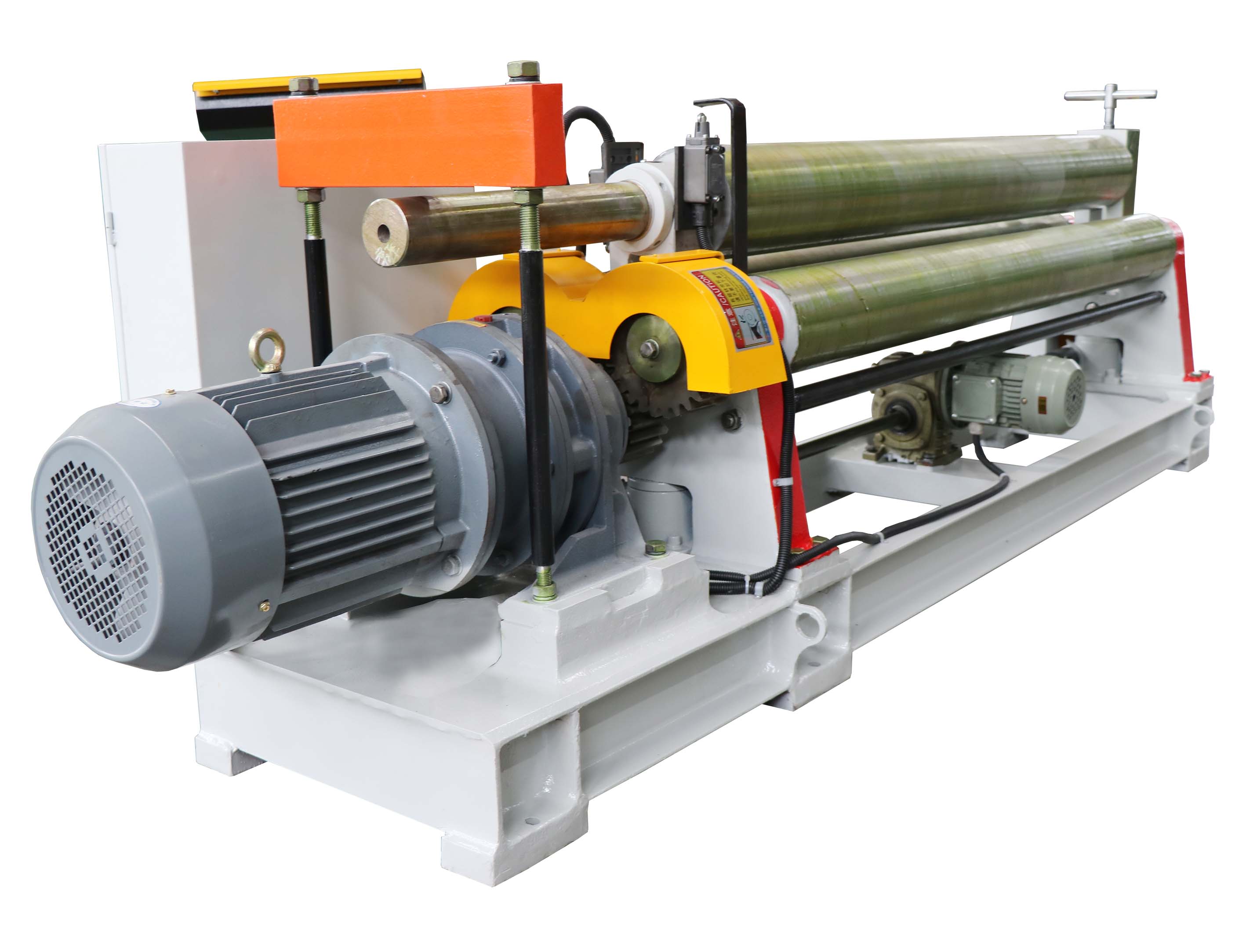

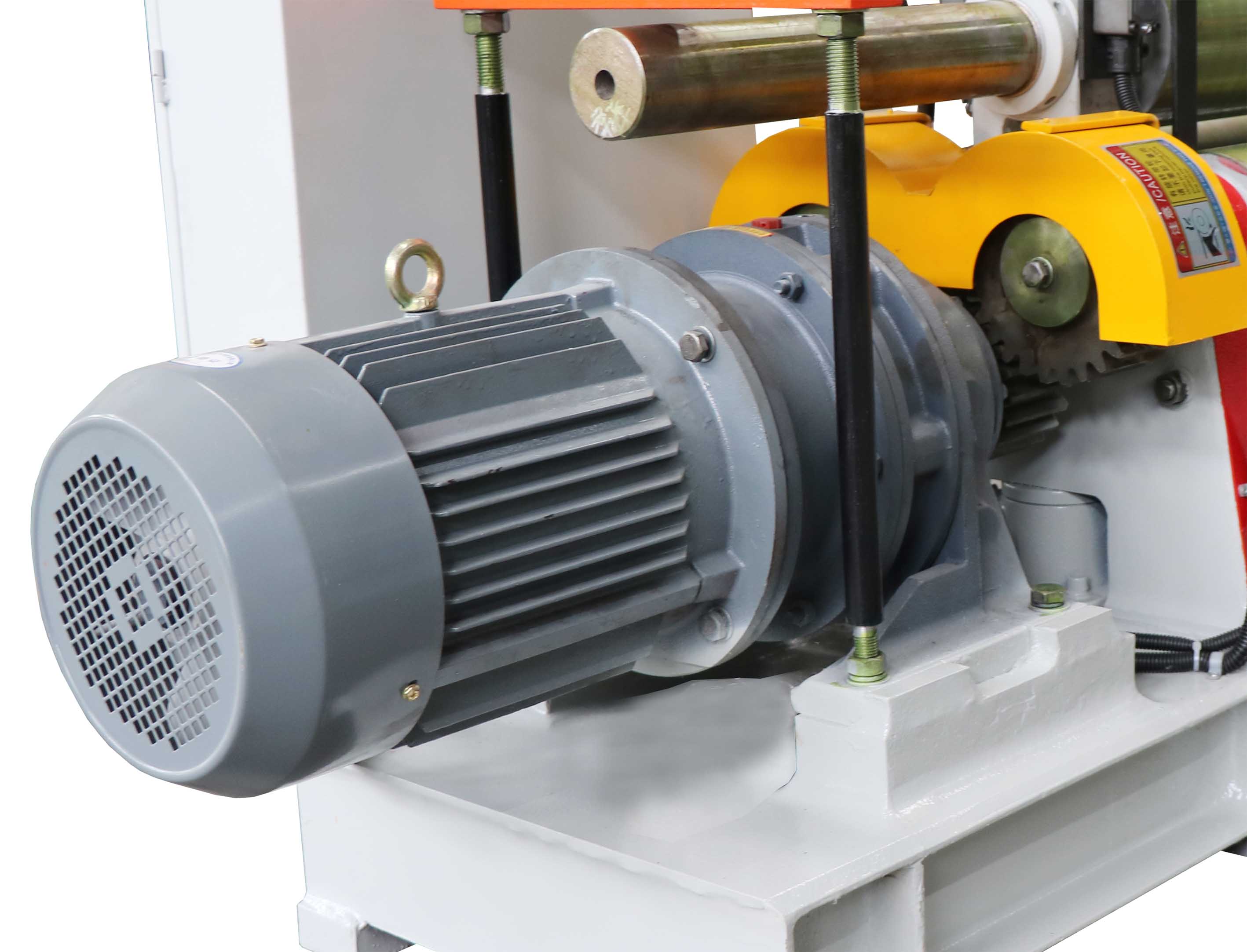

--Main driving motor

Main motor and main gear box, help to supply stability power

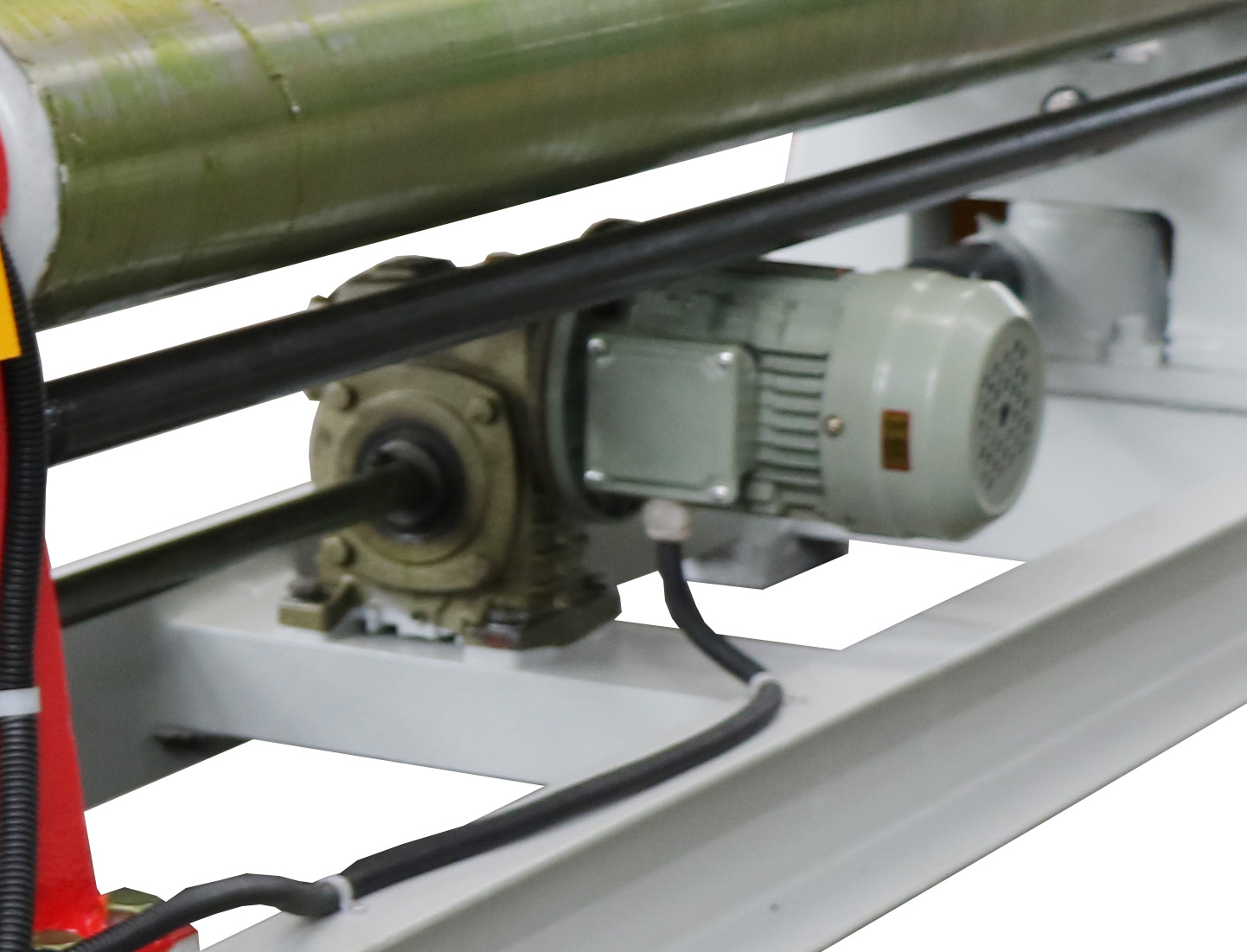

Assistant motor and gear box to supply force to let the upper roller up and down

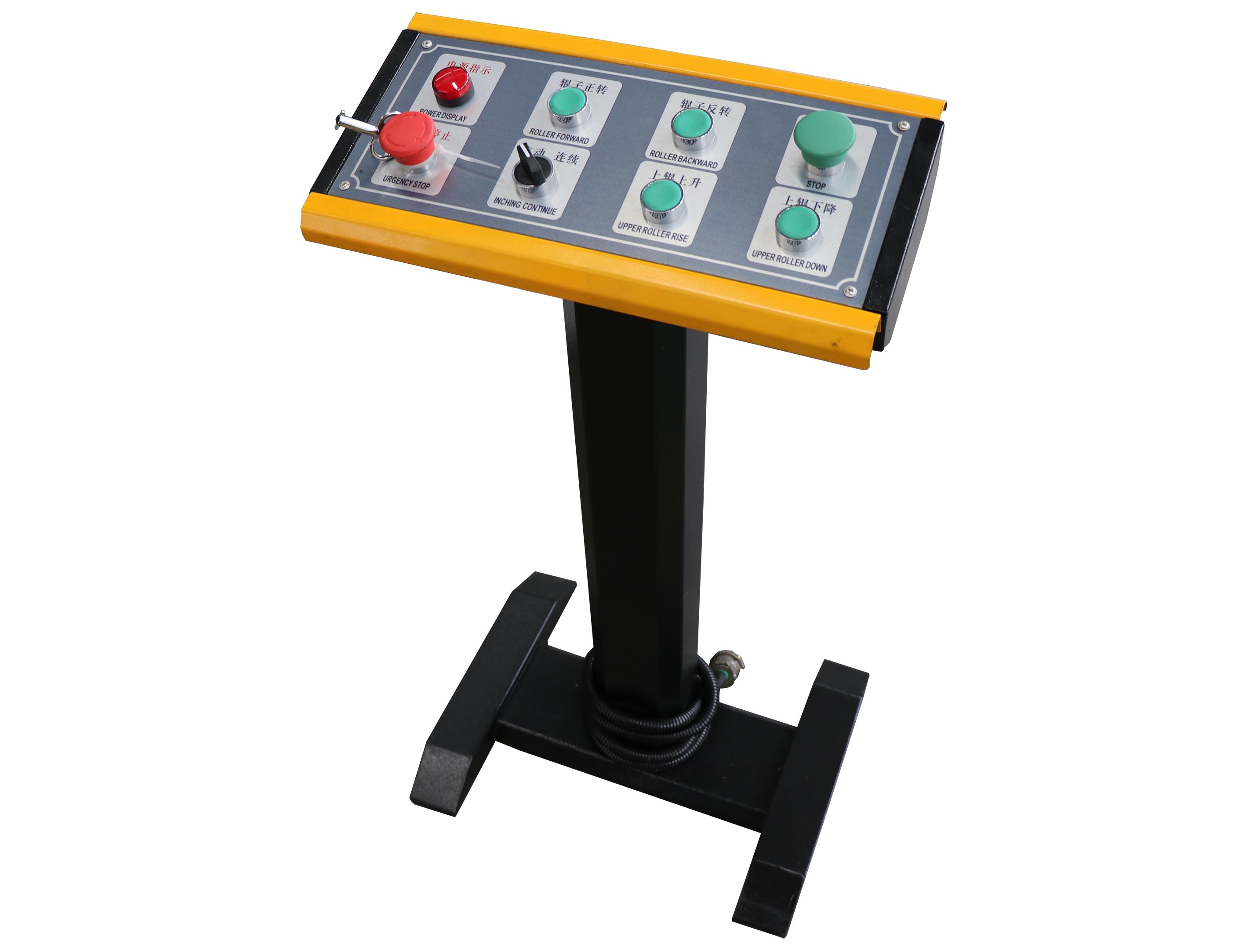

Separate control panel, all of the stroke or action are controlled by the according button, easy to be operated

Optional choice

--Cone bending degice

cone bending device

--hydraulic reversal frame

hydraulic reversal frame

--profile bending tool

profile bending tool

W11-6x1500 mechanical plate bending machine

6x1500 roll bending machine

6x1500 plate roll bending machine

6x1500 plate bending machine
