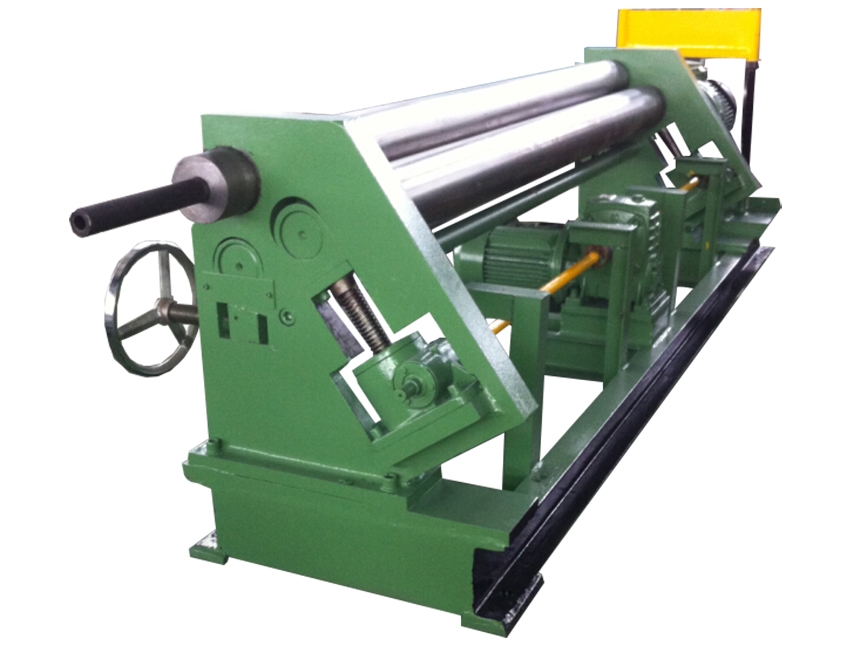

W11F-6x2000 Asymmetric Plate Bending Machine
W11F asymmetric plate bending machine is a kind of mechanical three rollers plate bending machine. Top roller is fixed, side roller and bottom roller can move ( up and down).
Parameter:
| Model | W11F-6x2000 |
| Parameters | |
| Max. rolling thickness (mm) | 6 |
| Length of working roller (mm) | 2050 |
| Max. rolling length (mm) | 2000 |
| Asymmetry rolling capacity（σs<245Mpa） | 6x2000XΦ250 |
| Diameter of upper roller (mm) | Φ160 |
| Diameter of lower roller (mm) | Φ160 |
| Diameter of side roller (mm) | Φ160 |
| Rolling speed (m/min) | 3 |
| Main motor power (KW) | 5.5 |
| Side roller power (KW) | 1.0 |
Features
--mechanical type, easy to be operated
--one pinch plate bending machine
--side roller mechanical drive movement
