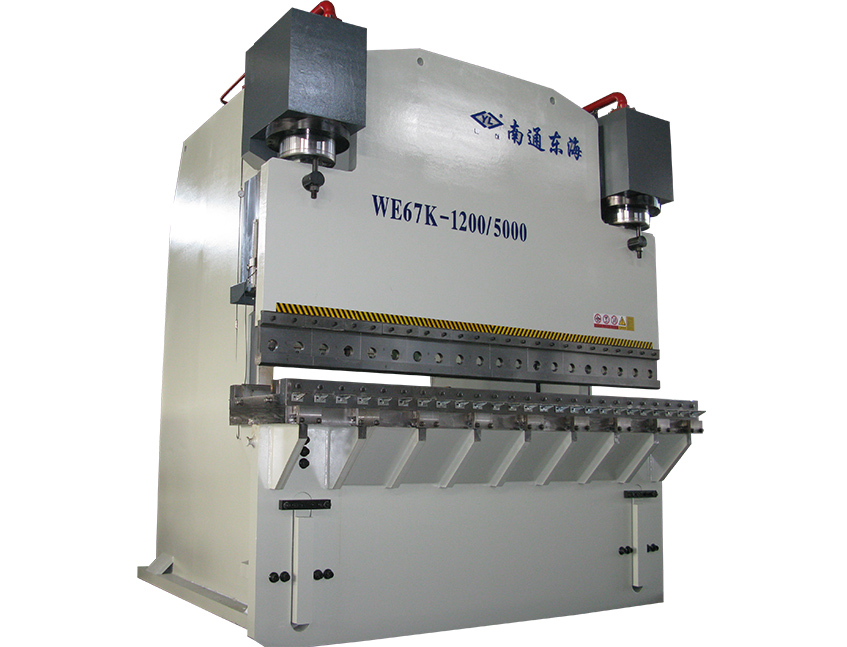

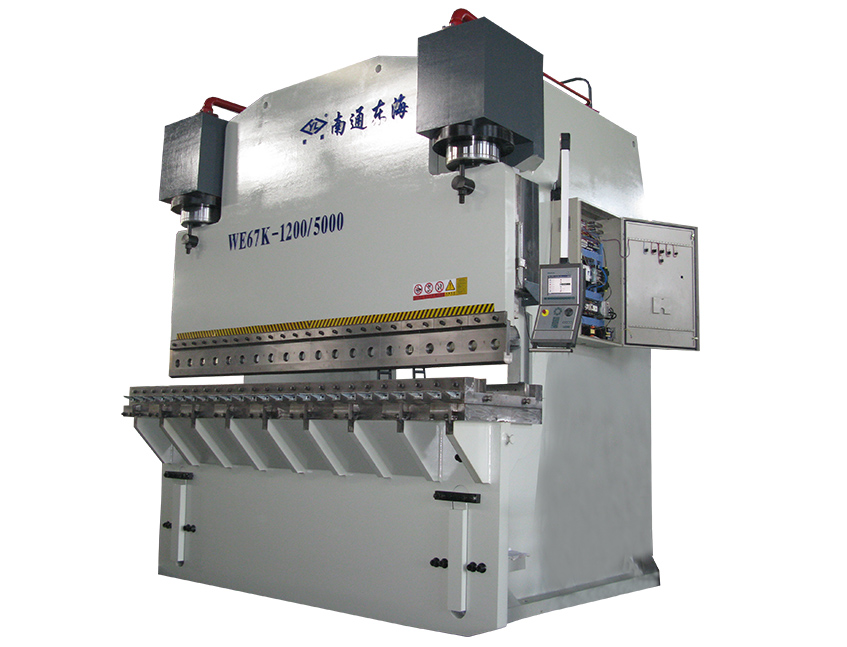

WE67K-1200/5000 CNC  Press Brake Machine

Parameters:

CNC controlled axis

The CNC Control is used for 3+1 Axis Control or more.

Synchronized beam axes Y1 & Y2

Back Gauge axis X

Automatic anti-deflection axis V

With modern CNC control, more axis can be CNC controlled, such as X1,X2, R, Z

DA-52S CNC controller

Features

--World class dedicated controller from Delem

--Y1-Y2-X +V 3+1 or more axis control

--Bend angle & Depth Mode program.

--Highly Precise press brake scale for Y1, Y2 axis.

--Close loop proportional hydraulics for beam synchronization.

--Zero leak sealing of hydraulic cylinders.

--Hardened & ground Multi “V” Die & Punch.

--Quick release die clamps.

--Highly Precise proportional valve to control accurate beam movement.

--The power pack is supplied by Bosch –Germany.

--Back gauge consist of hardened & ground ball screw,

--liner motion bearings and AC servo drive for accurate position up to 0.05 mm.

Cylinder

Punch & die
