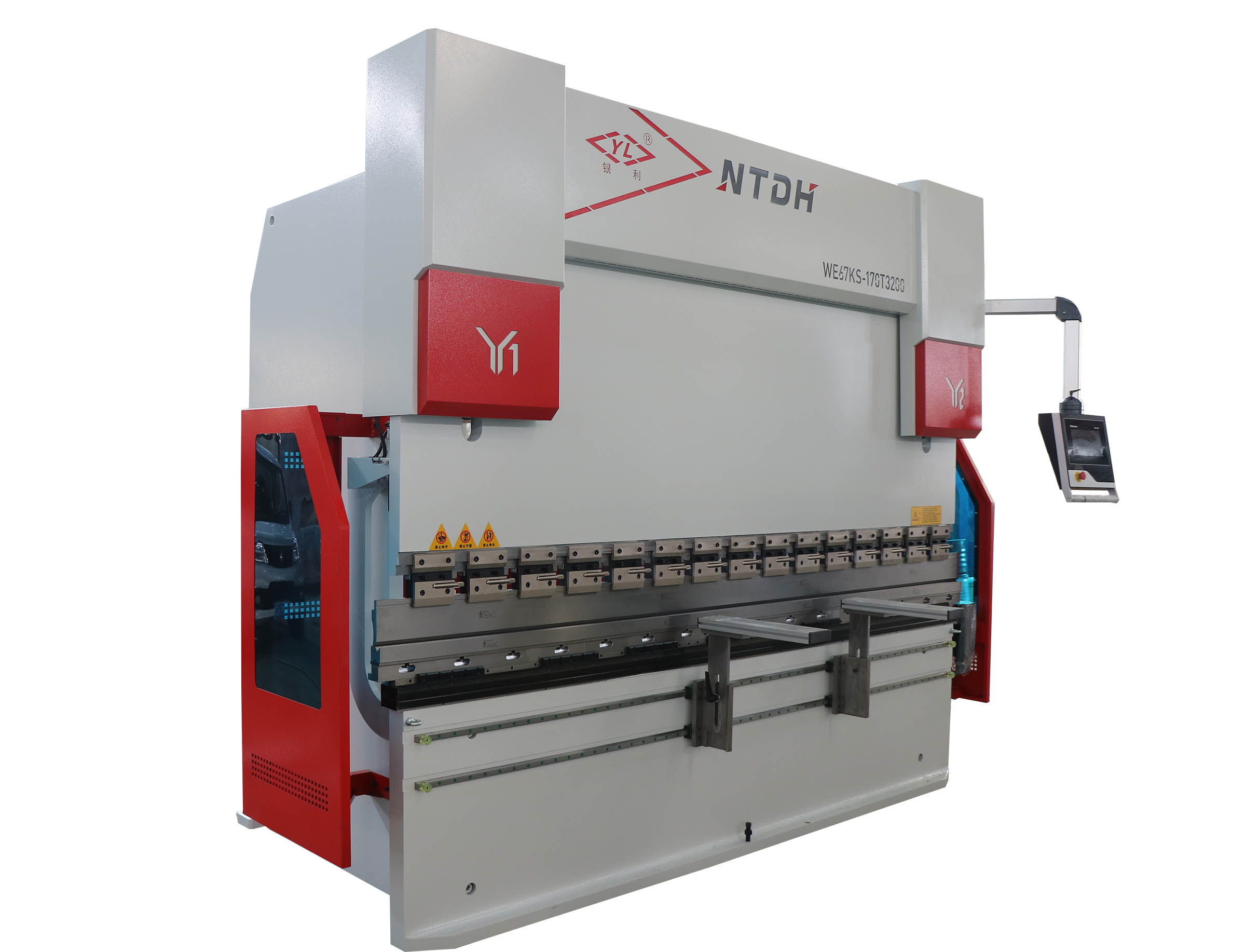

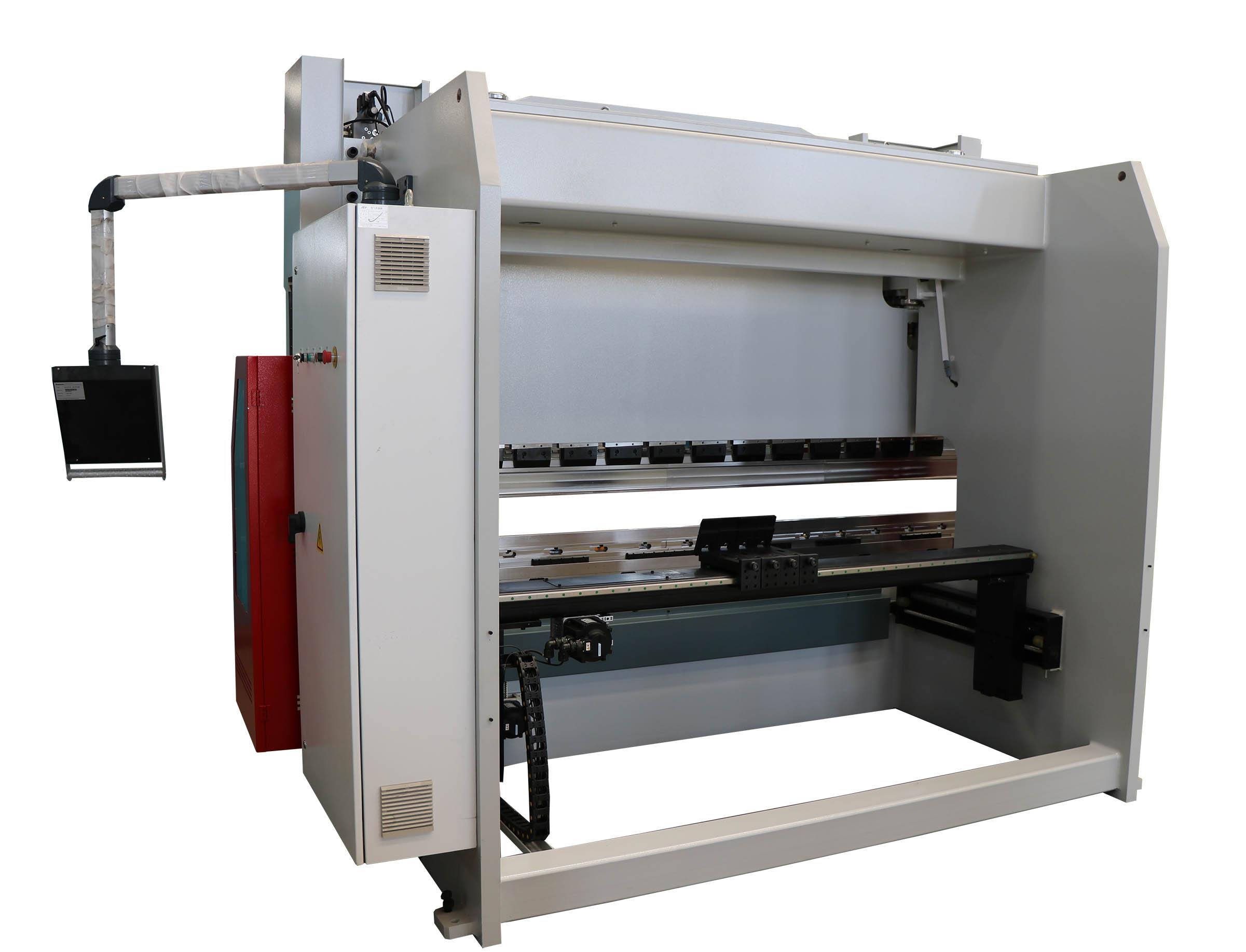

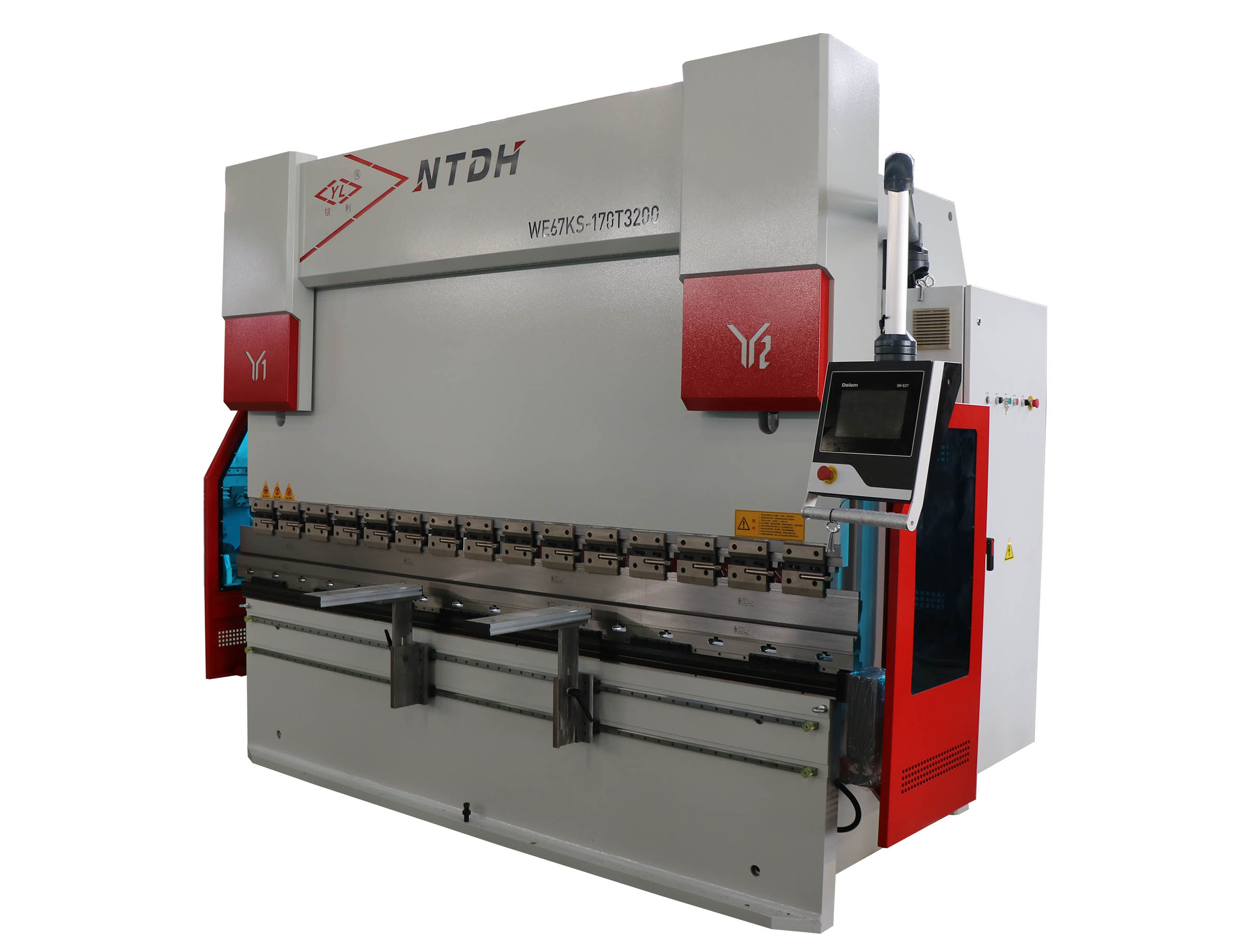

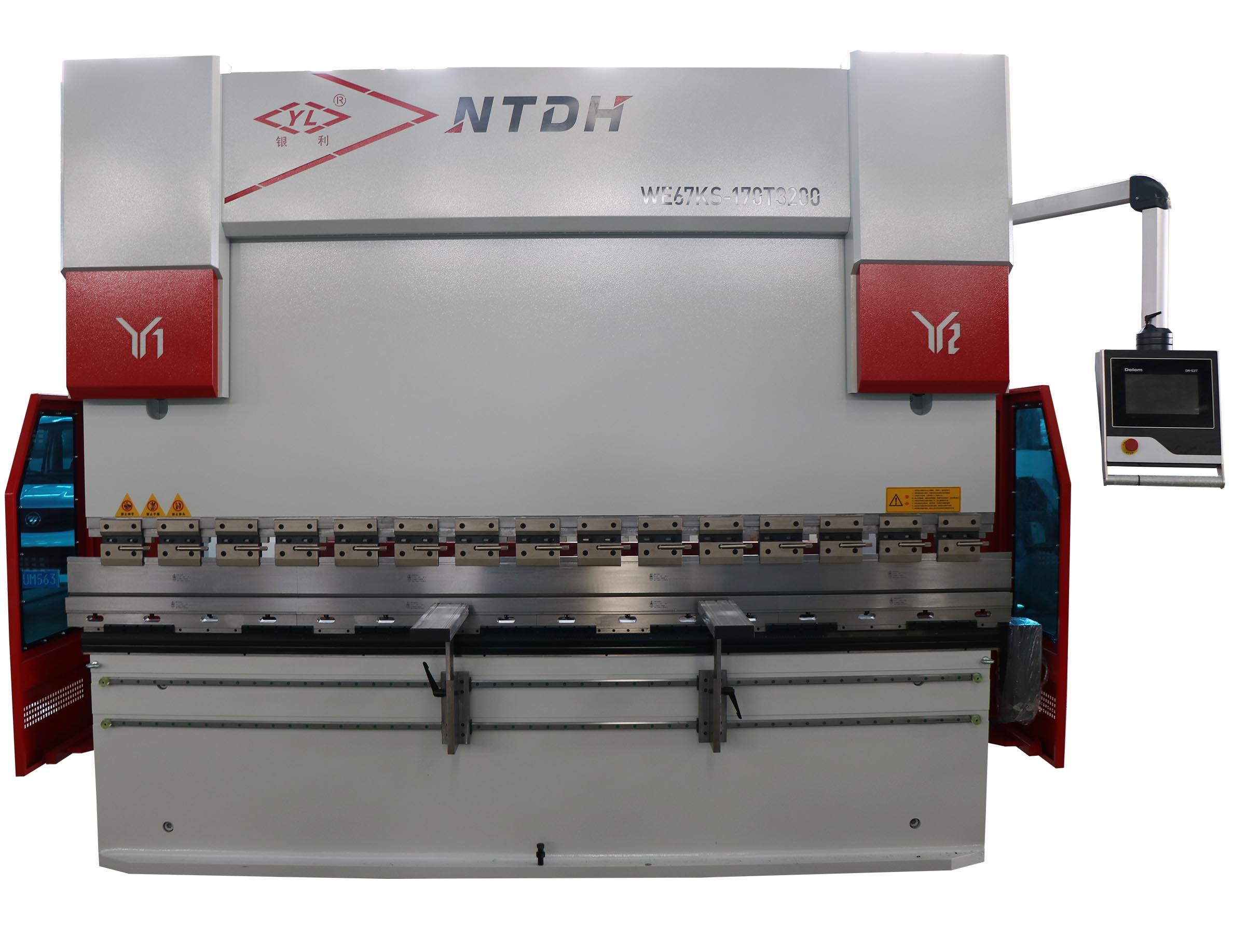

WE67KS- 170/3200 CNC Servo Press brake

Parameters

Features

▲60%-70% energy consumption

▲ 30% oil consummation

▲moving control panel with on/off controls, emergency push button &selector for inching,

▲High alloy back gauge, with high rigidity in light heavy

▲4+1 axis

▲CNC controlled mechanical pulling-rod anti-crowing device(V)

▲FAGOR linear scale to avoid the deflection bending

▲DA53T CNC control system

▲liner motion bearings and AC servo drive for accurate position up to 0.05 mm.

Instruction of structure

--Dual servo pump + motor

The servo motor doesn’t rotate when the press brake does not work; The servo motor is rotating during the bending and returning period, and the energy consumption is 60%-70%  compare to the traditional press brake.

The hydraulic unit that connected to the cylinder directly, each hydraulic unit contains one servo motor and one oil container, the oil consummation is 30% of the oil that used in traditional press brake. It has the quickly action response, which let the beam move fast to  improve the efficiency.

--CNC control system

The control system is DELEM D series professional press brake CNC control system, touch screen, 2D or 3D graphic.

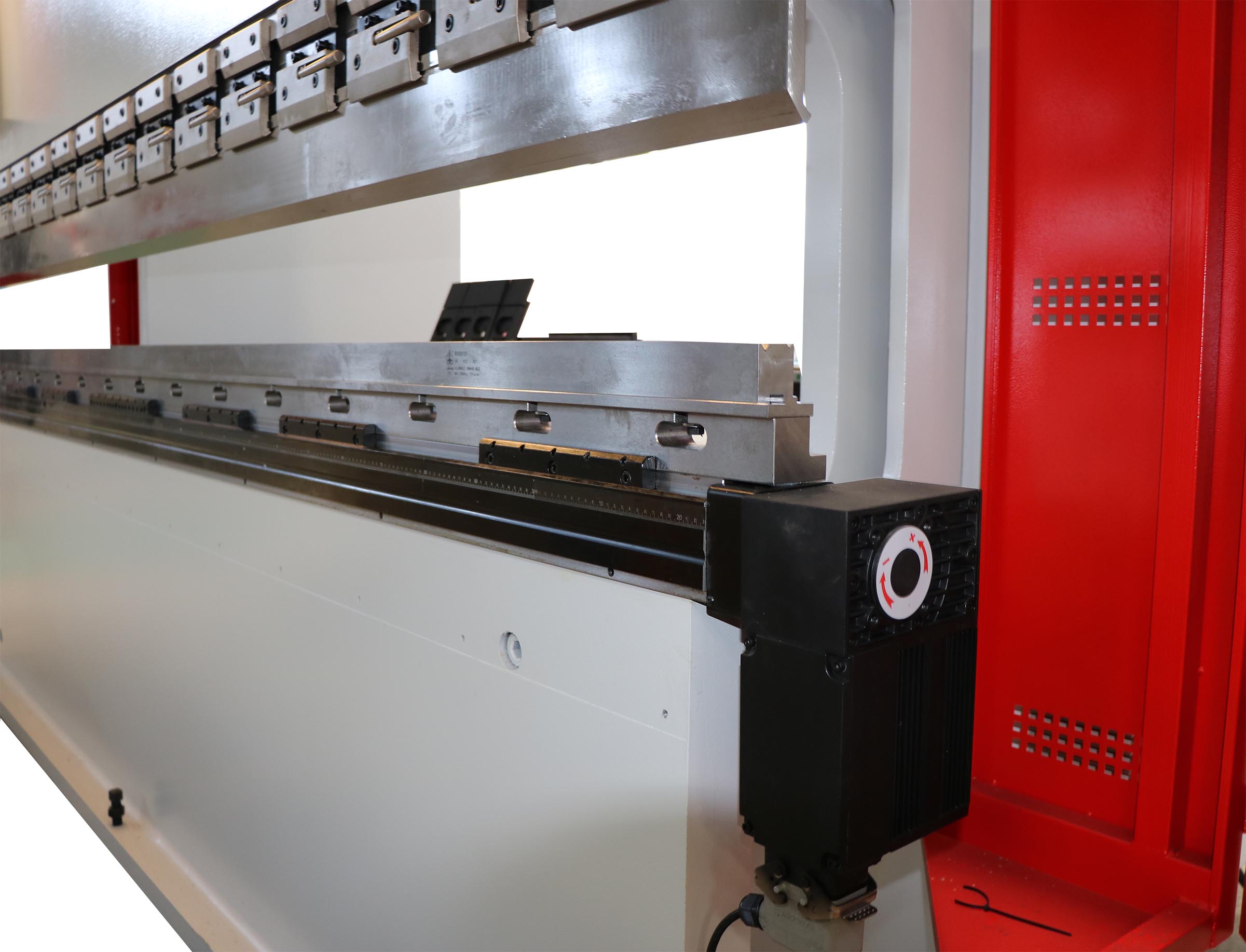

--CNC crowning system

The mechanical wedge crowning device is placing under the lower die, using professional reducer and precision potentiometer to control the accuracy.

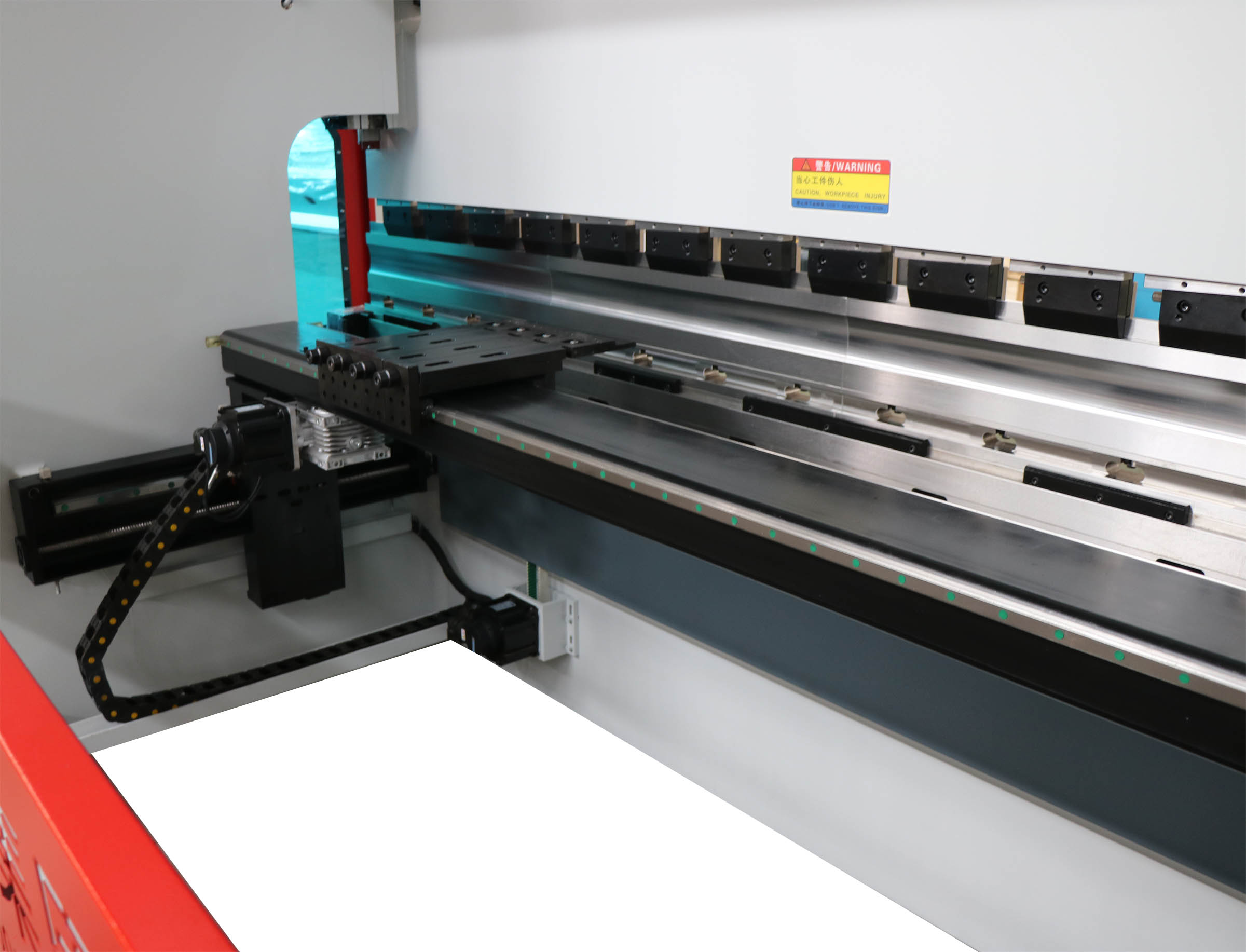

-- X-R back gauge

The back gauge is equipped with ball screw and linear rail. The functions of the back gauge can be extended up to 6 axis ((X1,X2,R1,R2,Z1,Z2).

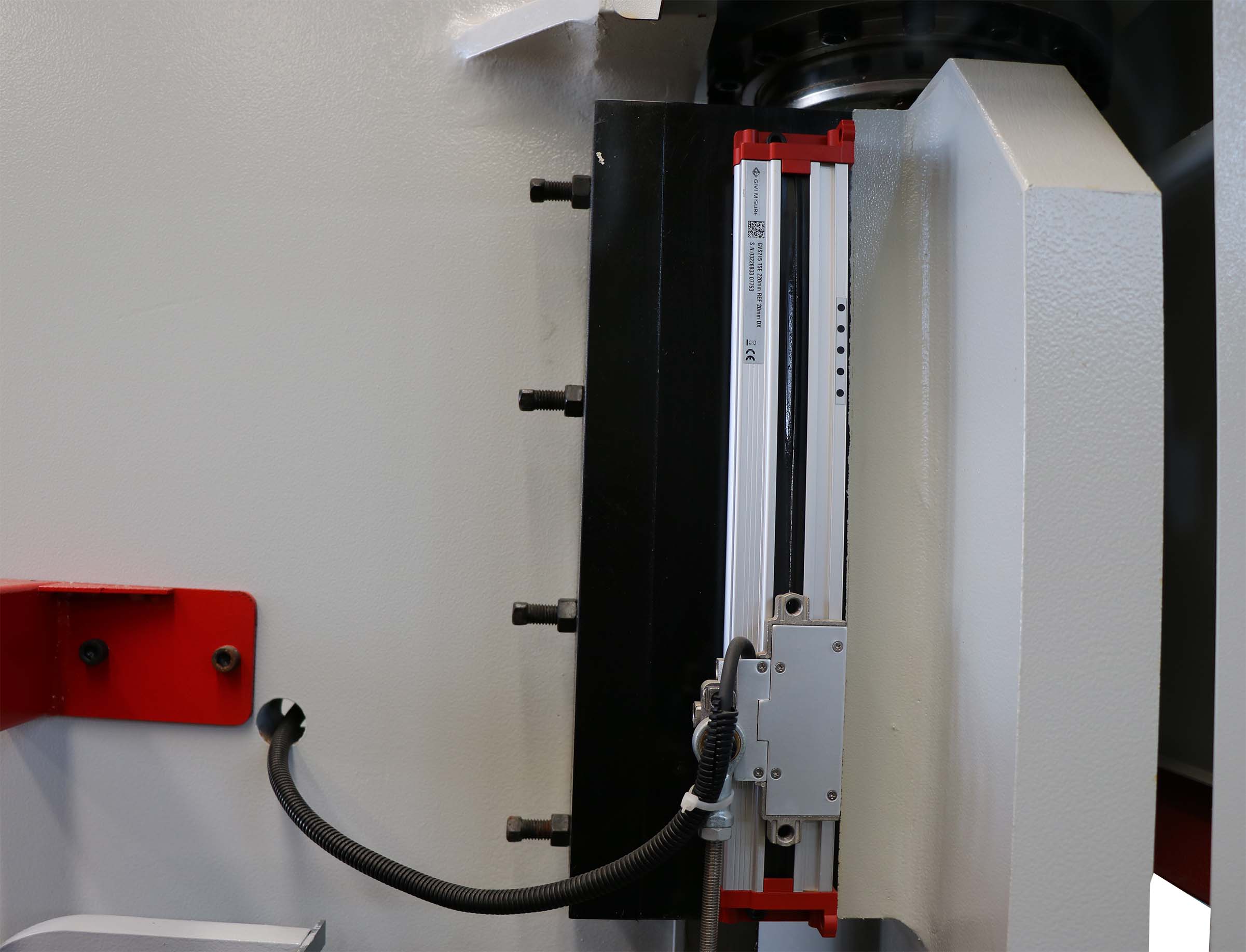

-- Linear scale

Two pieces of linear scale were installed at the uprights to supply the reliable position and re-position accuracy.

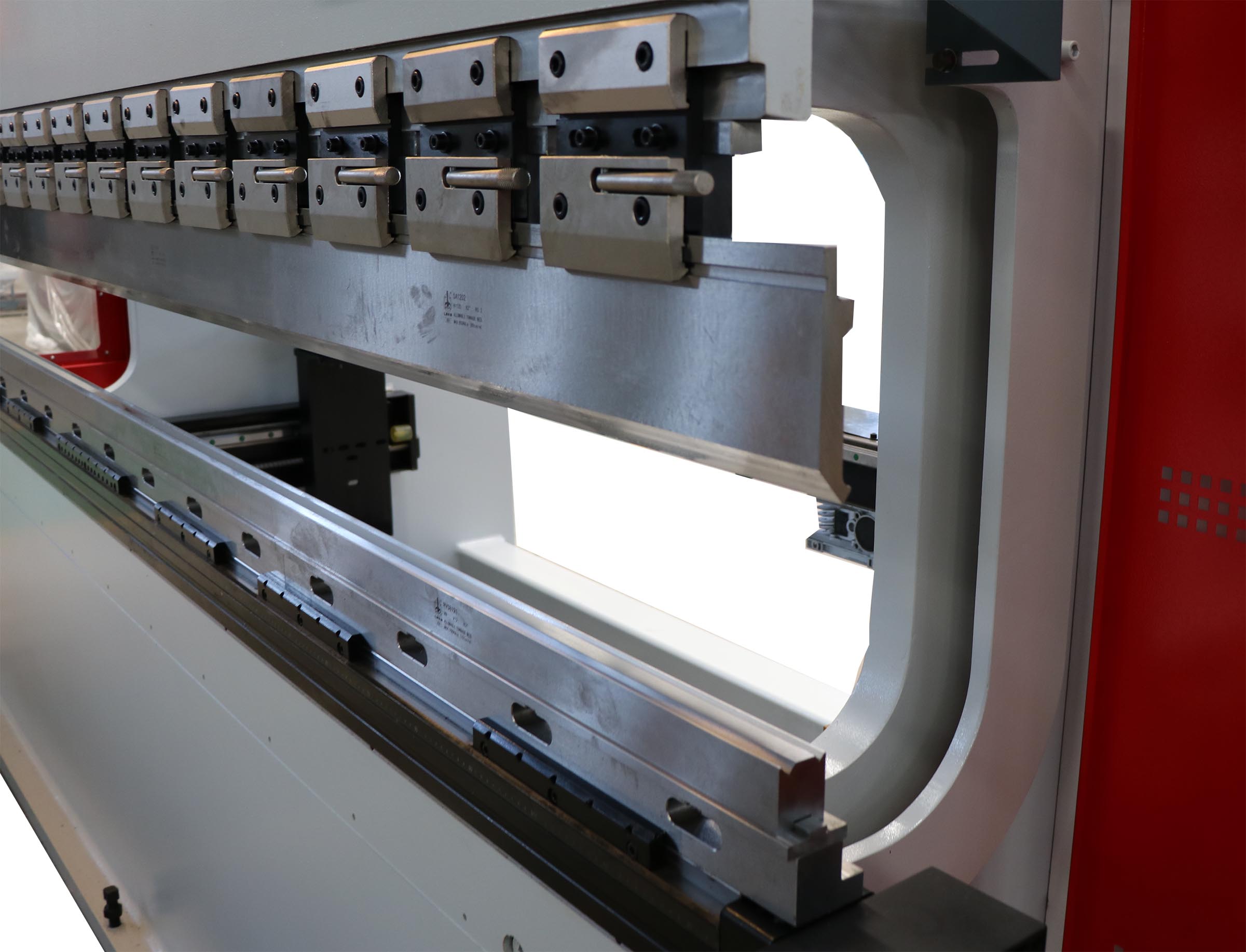

-- Quick clamping system

Quick clamping system,the operator can change the tool through our quick clamping system.

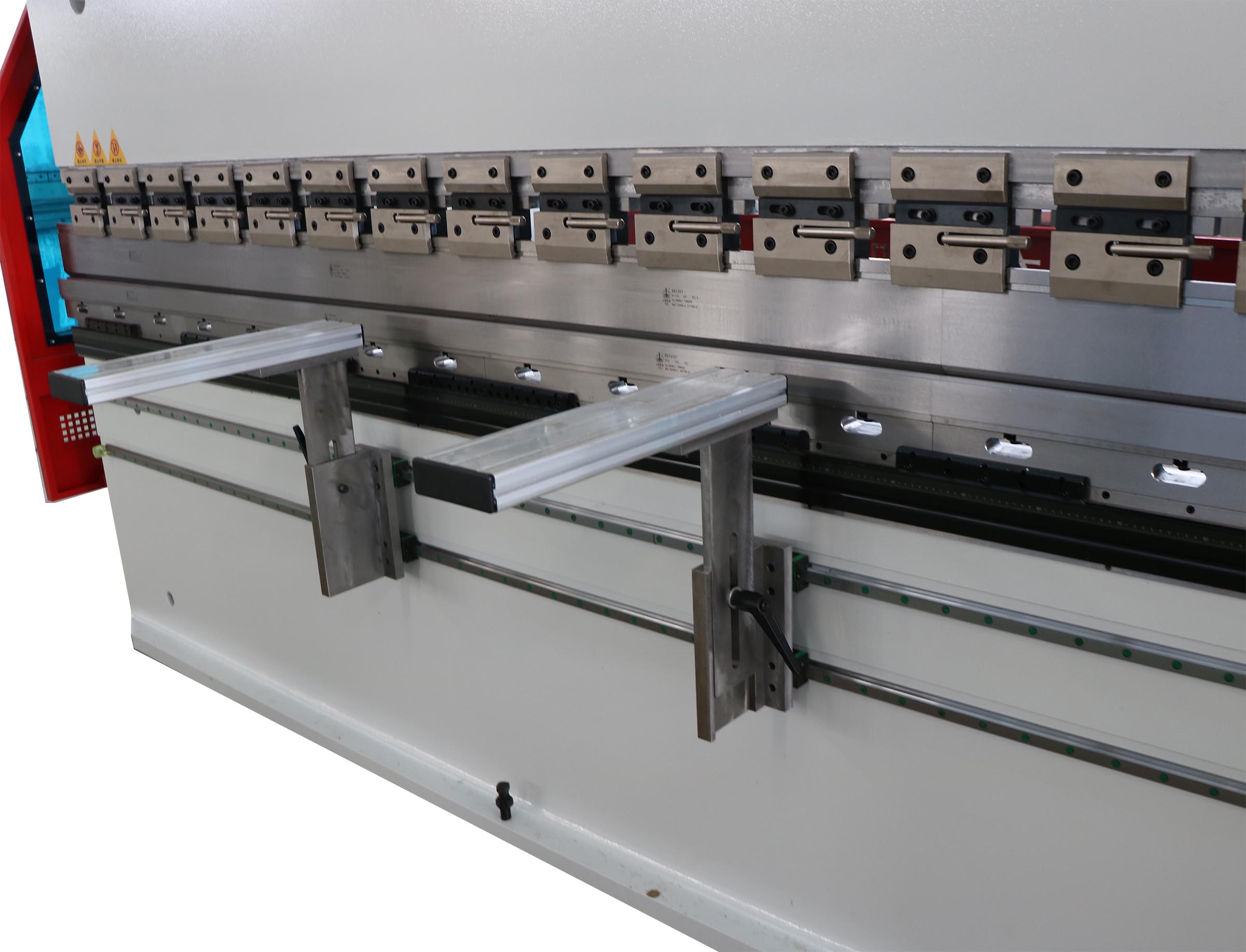

--Moveable support

The front sheet support can move against the linear rail, fast and reliable.

--Tool

The machine is equipped with 1-V/2-V die. We also supply the customed tool.
