YMG28 series double actions metal drawing press machine

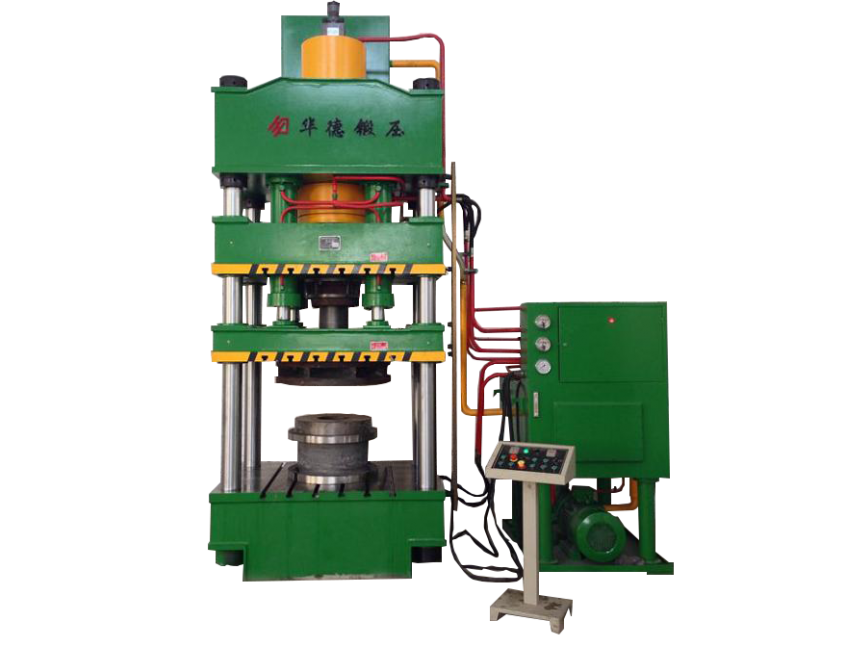

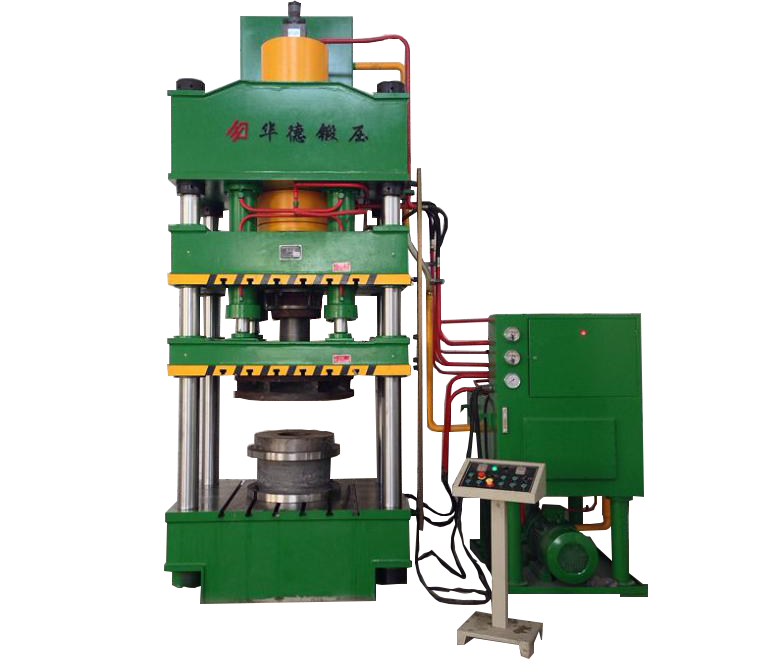

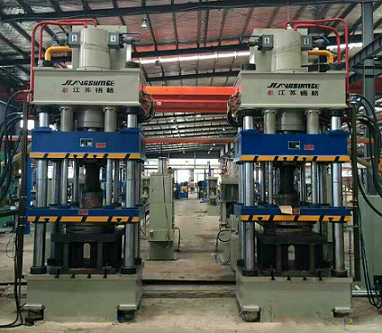

YMG28-series double action hydraulic press machine

The YMG28 series hydraulic double action press machines are widely used for deep drawing processes.

It’s most suitable to use for the following field:

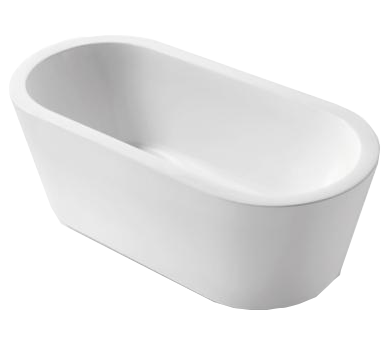

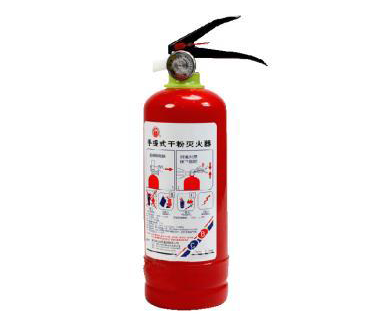

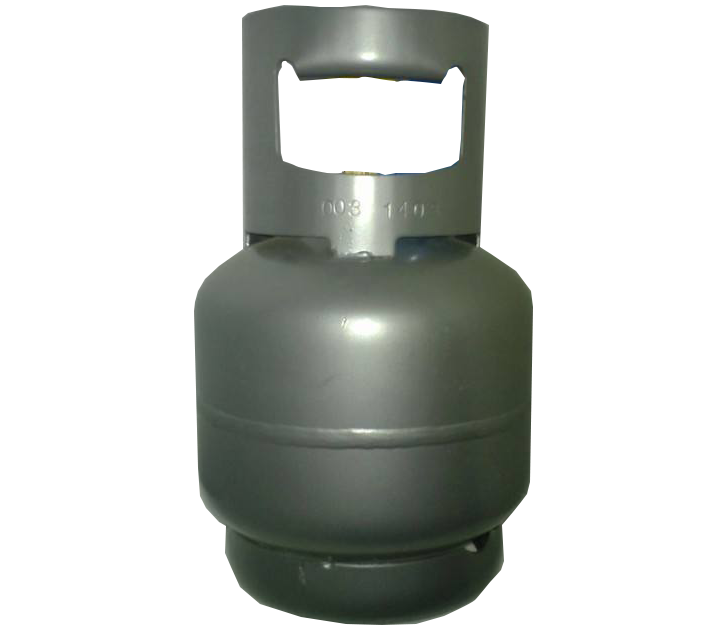

Different kinds of containers: stainless steel containers, aluminum containers, pressure containers, kitchen sink,

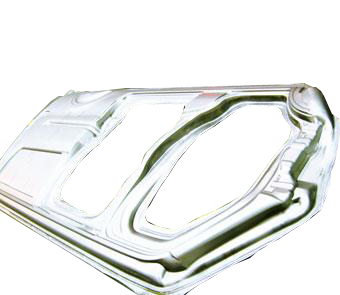

Automobile parts: bodywork, oil tanker, brake disc, chassis, bumper, etc

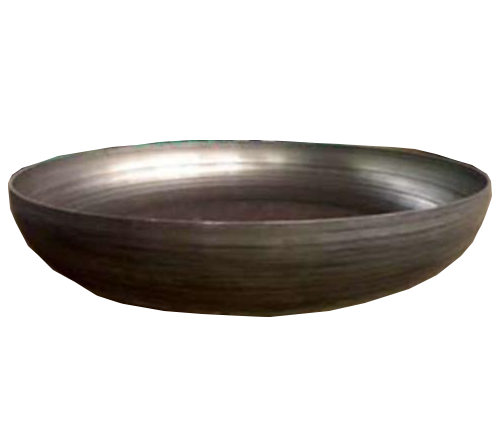

Kitchen utensils: sink, pot,

Automobile parts: stamping parts and vehicle bodyworks

Main features:

--Widely used for sheet metal deep drawing process

--main structure is steel welded, heat treatment to remove the inner stress, with high rigidity and stability.

--Cartridge valves widely used for hydraulic system, reliable, durable and less hydraulic impact.

--Independent electrical control system, reliable, audio-visual and very convenient for maintenance, main electric components are SEMENS.

--MITSUBISH PLC control the actions.

--Centralized button control station.

--Operation choice inch-action and single action.

--Beam stroke range, pressure and press speed can be set according practical use.

--With pressure keep and time delay functions.

--hydraulic cushion is equipped at the work table.

--Bi-manual buttons operating system to improve the safety.

--Light curtain to be equipped to help to improve the safety during the pressing period.

ion. The unit consists of one main pump for pressing action, combined with an oil tank and filter unit.

Optional choice:

--Moving table

--Oil cooling system

--beam locking system

--beam-support-rod

--mould protection system

--oil tanker placed on crown

--H-frame structure

NO	Specification		Unit	YHD28-40/63	YHD28-63/100	YHD28-200/300	YHD28-315/400	YHD28-500/800	YHD28-400/630	YHD28-630/1030	YHD28-1200/2000	YHD28-2000/2600
1	Rated force		KN	630	1000	3000	4000	8000	6300	10300	2000	26000
2	Drawing force		KN	400	630	2000	3150	5000	4000	6300	12000	12000
3	Blank-holder force		KN	300	400	1000	800	3000	2300	4000	8000	6000
4	Knock-out force		KN	190	190	400	630	1000	1000	2000	4000	1000
5	Max. pressure		Mpa	25	25	25	25	25	25	25	25	25
6	Drawing slider stroke		mm	500	600	700	800	1000	800	1300	1350	2000
7	Blank-holder slider stroke		mm	300	300	400	400	1000	800	1300	1350	2000
8	Drawing slider size	L-R	mm	560	720	1000	1260	3000	1400	1900	2000	2000
8	Drawing slider size	F-B	mm	500	580	900	1200	2200	1400	1500	1950	1800
9	Blank-holder slider size	L-R	mm	560	720	1000	1260	3000	1400	2600	3000	3500
9	Blank-holder slider size	F-B	mm	500	580	900	1260	2200	1400	2200	2500	3500
10	Work table size	L-R	mm	560	720	1000	1260	3000	1400	2600	3000	3500
10	Work table size	F-B	mm	500	580	900	1200	2200	1400	2200	2500	3500
11	Daylight of drawing slider		mm	1100	1300	1400	1500	1700	1800	2000	2600	4500
12	Daylight of Blank-holder slider		mm	700	800	900	1000	1150	1800	2000	2400	4500
13	Drawing slider speed	Approaching	mm/s	120	120	100	100	100	100	100	100	100
		Pressing	mm/s	20	12-14	15	10	12	12	10-12	10	10
		Returning			mm/s	100	120	80	60	70	100	80	80	80
14	Overall dimension	L-R	mm	2500	4000	4000	4500	5800	5800	5700	7000	8000
		F-B		mm	1500	2000	2000	2800	3000	3000	2800	2800	3800
		H	mm	3200	4100	4400	4600	5500	6400	7400	9500	8800
15	Motor Power		KW	5.5	7.5	22	2x18.5	2x22	4x22	4x37	4x37	4x45
16	Pump		L	10	25	80	2X63	2X80	4X80	4X160	4X160	4X250
