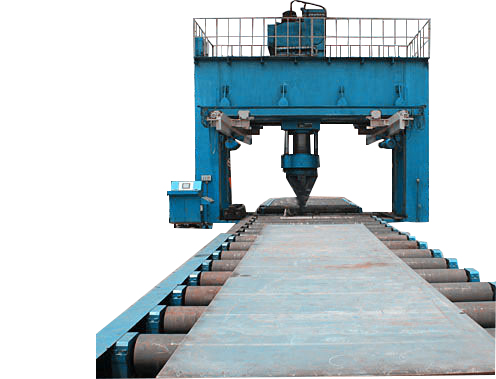

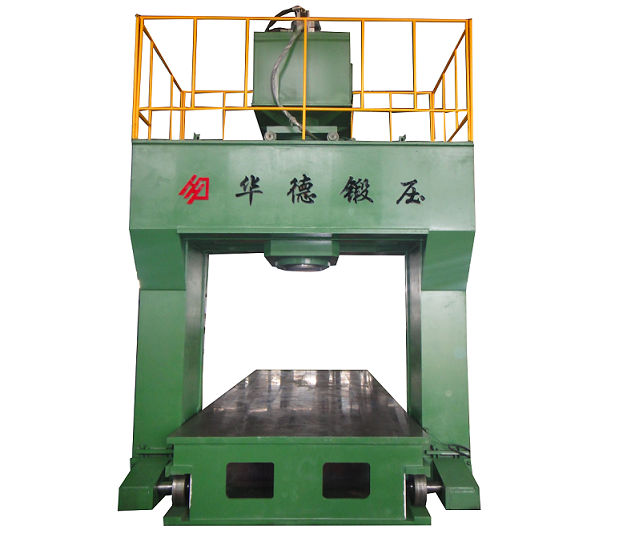

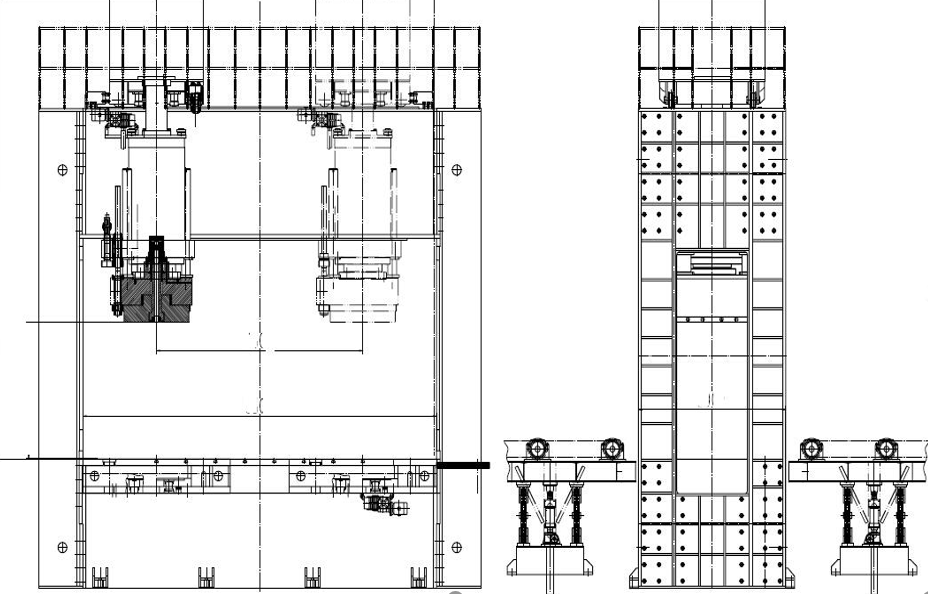

YMG46 series Gantry type Press Machine



Main features:

--Widely used for the straightening, leveling or reforming on flat steel, steel structure parts or shipyard field.

--Gantry type, main structure is steel welded, heat treatment to remove the inner stress, with high rigidity and stability.

--Cartridge valves widely used for hydraulic system, reliable, durable and less hydraulic impact.

--Independent electrical control system, reliable, audio-visual and very convenient for maintenance, main electric components are SIEMENS.

--Centralized button control station.

--As customer special required, the pressing part can be designed to be movable, the whole gantry frame also can be designed to be movable



 Specification
Items unit Model Remark
YMG46-2000 YMG46-1250 YMG46-1000 YMG46-1000A YMG46-800
Nominal force KN 20000 12500 10000 10000 8000 　
Max.pressure Mpa 25 25 25 25 25 　
Max. pressing stroke mm 1000 1000 900 900 800 　
Max.Daylight mm 2100 2000 1800 1800 1600 　
Moving range of the perssing table (central distance) mm ±1800 ±1750 ±1250 ±1250 ±1000 　
Rotating tange of pressing head&moving table degree ±360 ±360 ±360 ±360 ±360 　
Table size L-R mm 6800 6200 6000 4500 4500 　
F-B mm 3100 2700 2700 2500 2500 　
Size of moving table L-R mm 2700 2700 2700 2500 2500 　
F-B mm 1500 1200 1200 1200 1200 　
Pressing head vertical speed idle mm/s 40-50 40-60 40-60 40-60 50-70 　
pressing mm/s 2-4 2.5-4 3-5 3-5 4-6 　
return mm/s 40 40 40 40 40 　
Horizontal speed of pressing head & table mm/s 30 30 30 30 30 　
Rotational speed of  　 0.5 0.5 0.5 0.5 0.5 　
Diameter of rotational pressing head mm φ1510 φ1100 φ1100 φ1100 φ1000 　
Diameter of rotational table mm φ1200 φ1040 φ1040 φ1040 φ1040 　
Feeding table 　 　 can be raised optional
position 　 front/rear
loading capacity KG 30000 20000 20000 15000 15000
speed m/min 11 11 11 11 11
length mm 13000 11000 11000 8000 5000
width mm 3500 3500 3500 2500 2500
Motor power KW 45+22 45 45 45 22 　

Applications

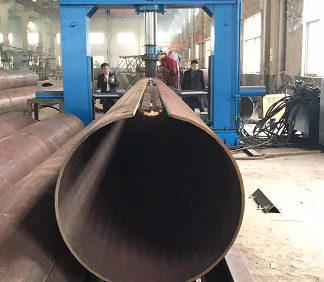

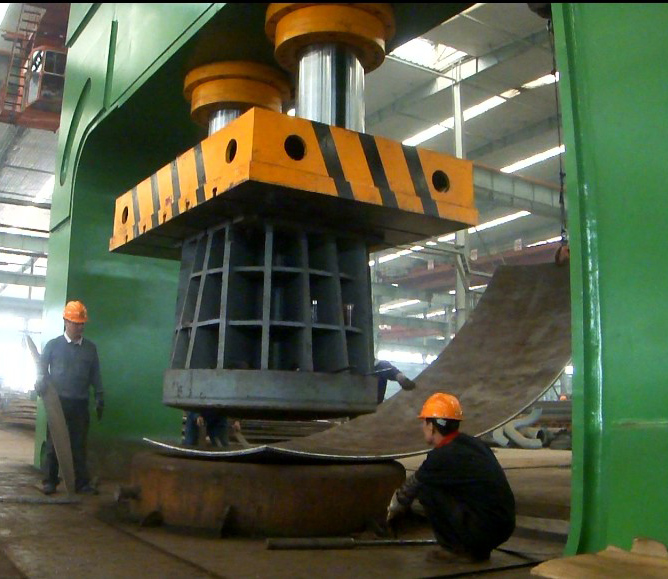

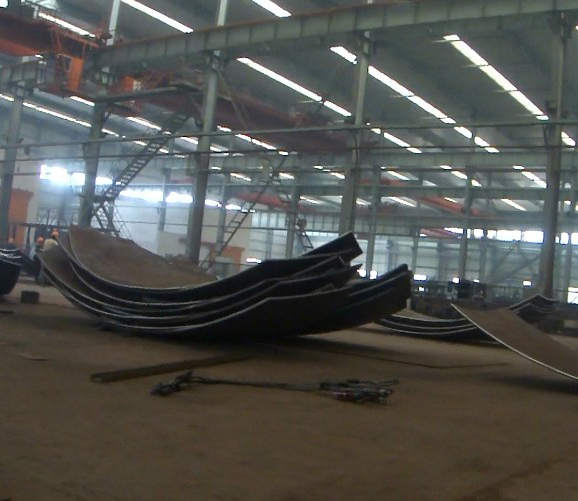

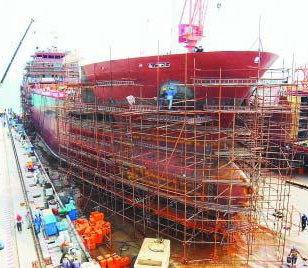

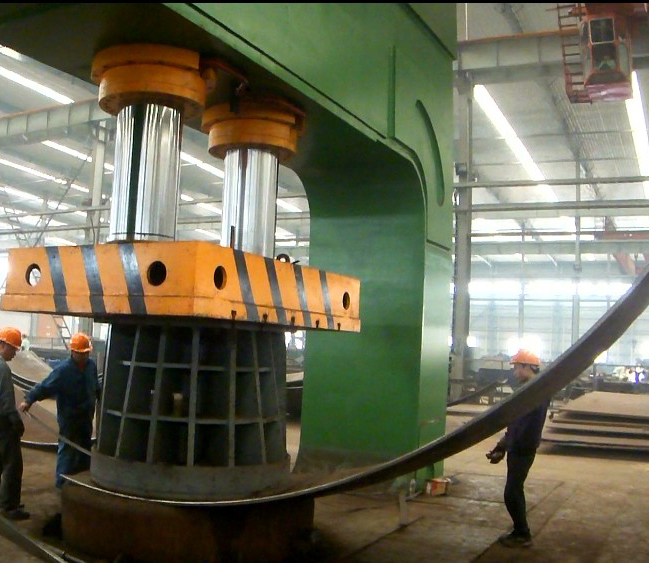

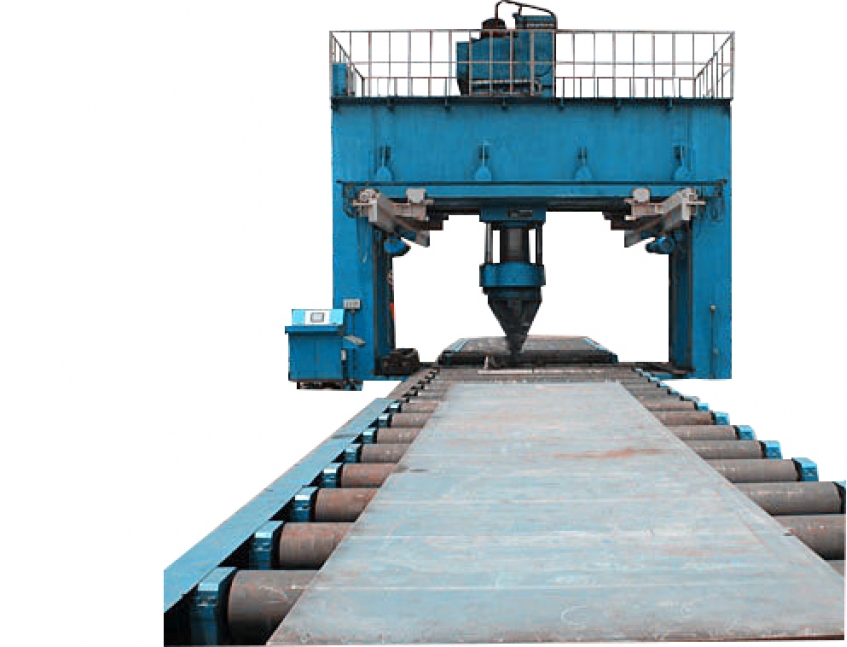

shaping of ship boards and forming for container wall
