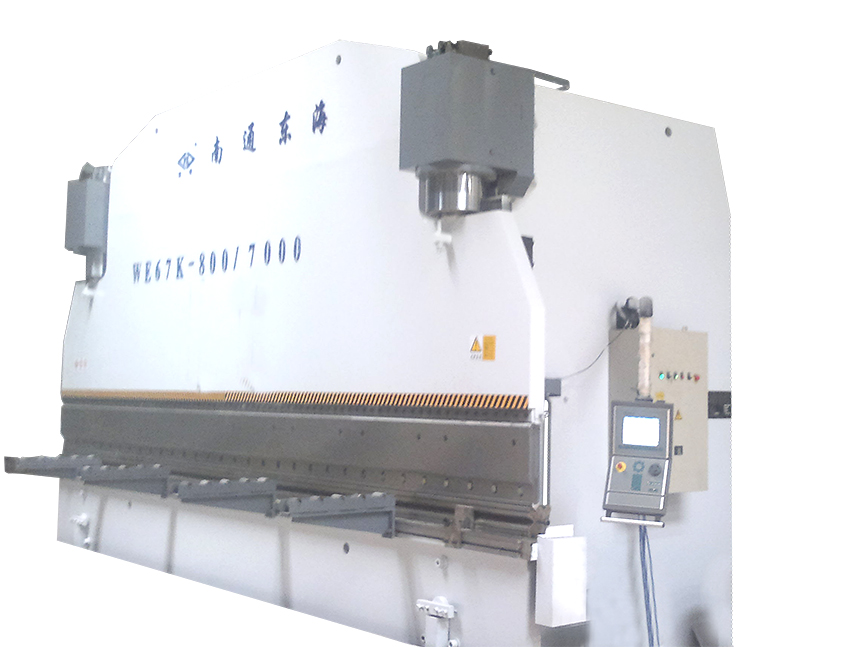

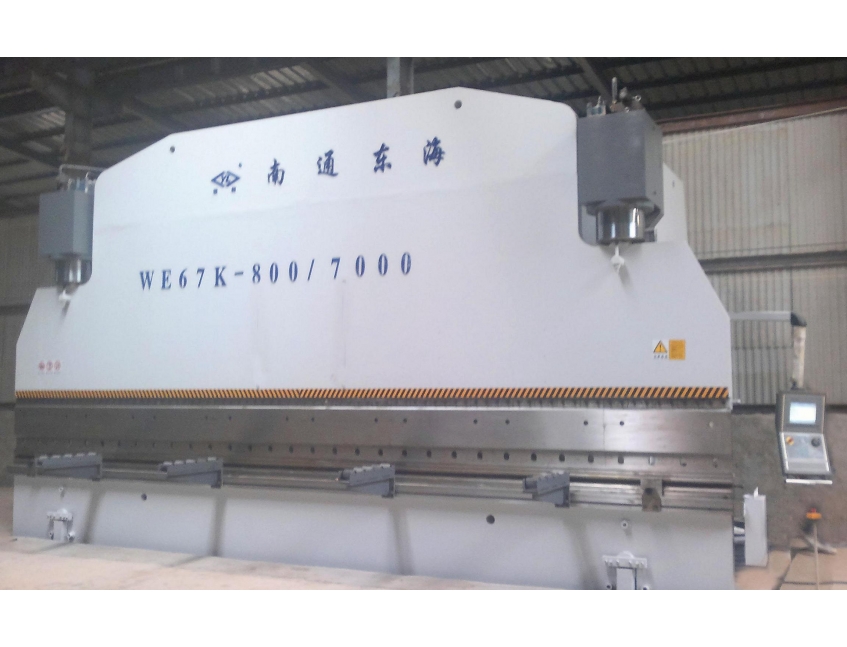

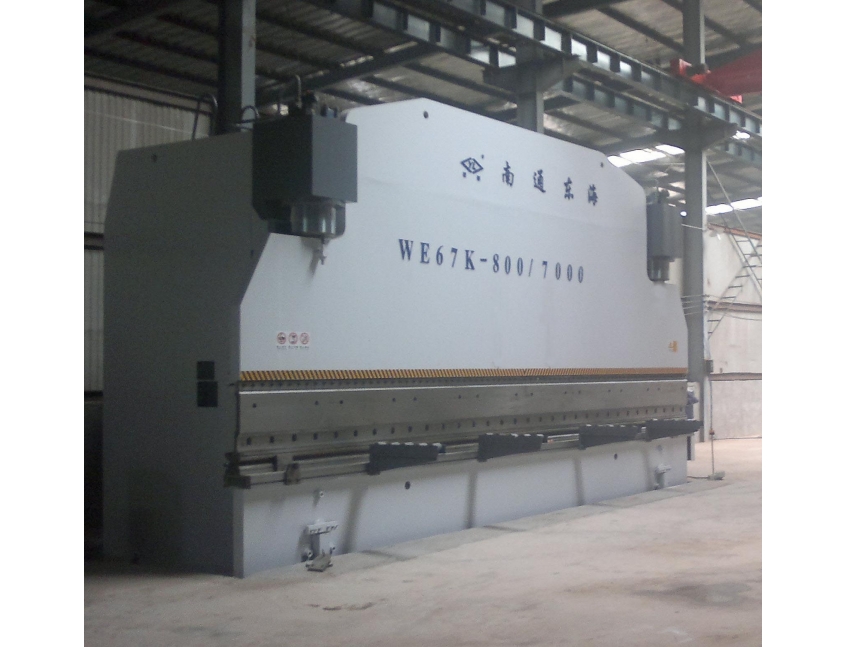

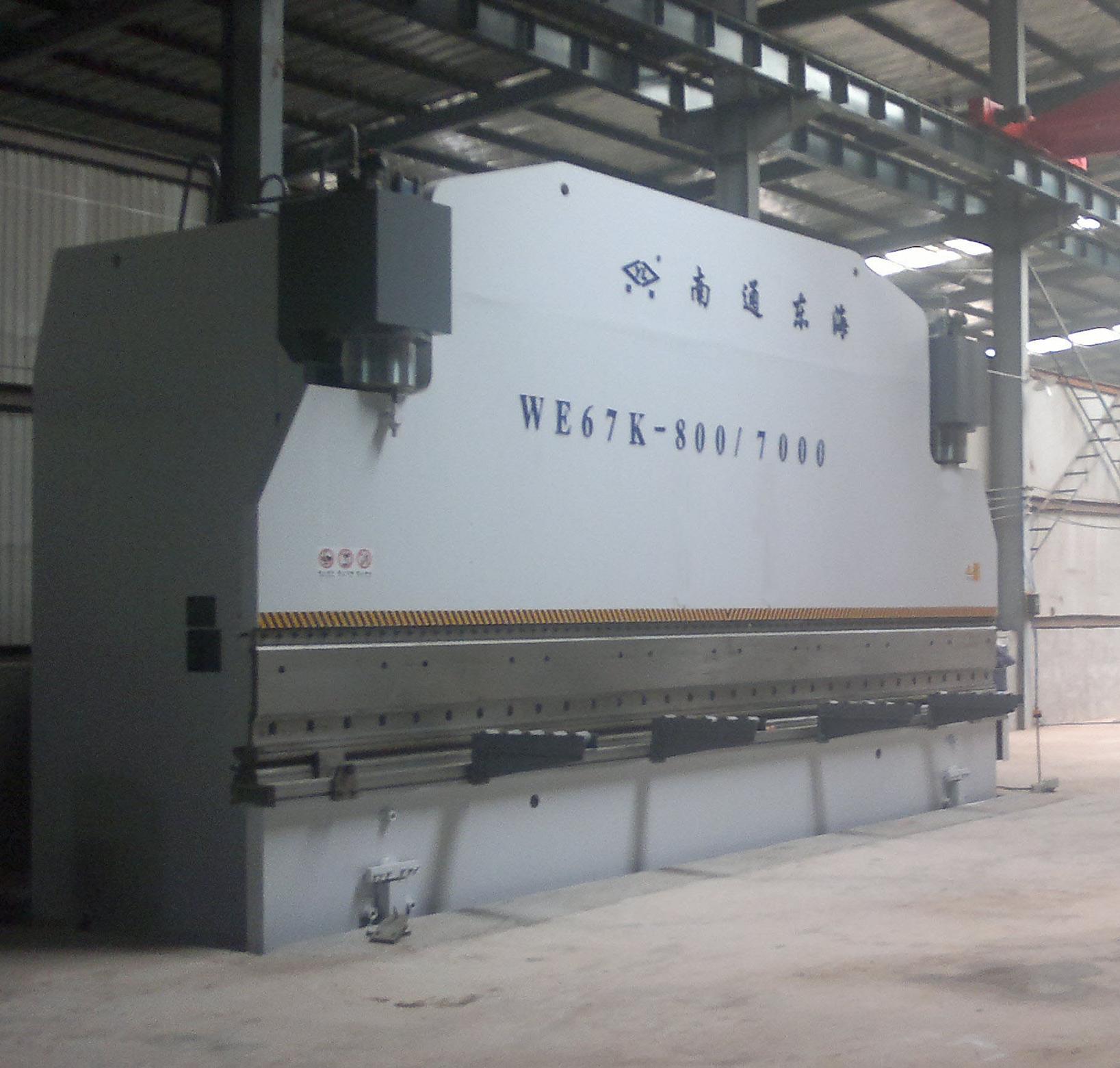

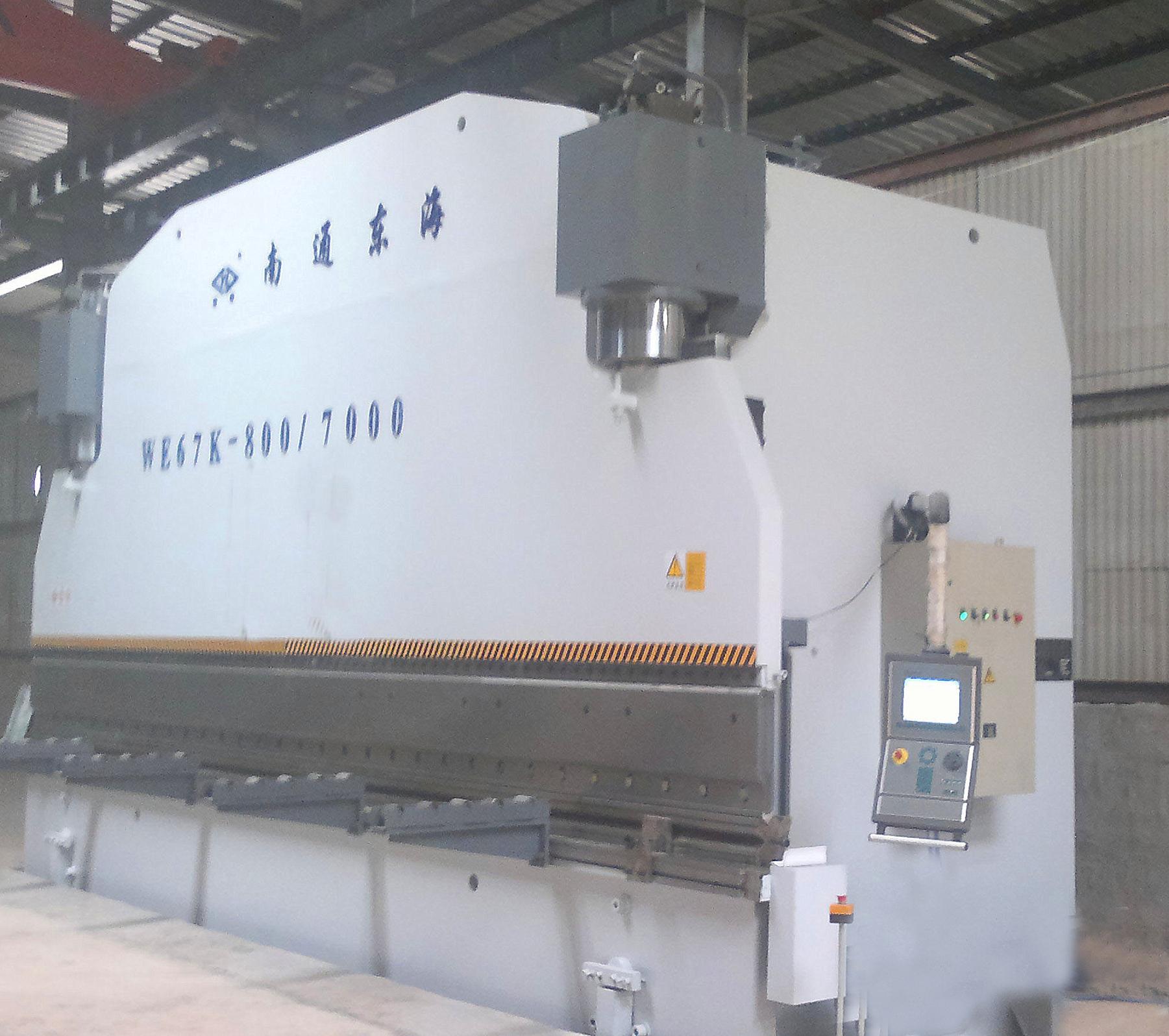

WE67K-800/7000CNC Press Brake Machine
Parameters
|
1 |
Nominal pressure |
8000 |
KN |
|
|
2 |
Bending width |
7000 |
mm |
|
|
3 |
Distance between uprights |
5600 |
mm |
|
|
4 |
Stroke |
400 |
mm |
|
|
5 |
Max. opening height |
800 |
mm |
|
|
6 |
Throat depth |
500 |
mm |
|
|
7 |
Working table length |
7000 |
mm |
|
|
8 |
Approaching speed |
100 |
mm/s |
|
|
9 |
Bending speed |
8.5 |
mm/s |
|
|
10 |
Returning speed |
80 |
mm/s |
|
|
11 |
Main motor power |
2x37 |
KW |
|
|
12 |
Oil pump |
2x50 |
mr/r |
|
|
13 |
Back gauge range |
600 |
mm |
|
|
14 |
Machine length |
7100 |
mm |
|
|
15 |
Machine width |
3200 |
mm |
Without front feeder |
|
16 |
Machine height |
5000 |
mm |
|
|
17 |
CNC axis |
Y1-Y2-X +V |
Main machine |
|
--World class dedicated controller from Delem
--Y1-Y2-X +V 3+1 or more axis control
--Bend angle & Depth Mode program.
--Highly Precise press brake scale for Y1, Y2 axis.
--Close loop proportional hydraulics for beam synchronization.
--Zero leak sealing of hydraulic cylinders.
--Hardened & ground Multi “V” Die & Punch.
--Quick release die clamps.
--Highly Precise proportional valve to control accurate beam movement.
--The power pack is supplied by Bosch –Germany.
--Back gauge consist of hardened & ground ball screw,
--liner motion bearings and AC servo drive for accurate position up to 0.05 mm.
CNC press brake, CNC plate bending machine, electric-hydraulic press brake, Y1-Y2-X axis
