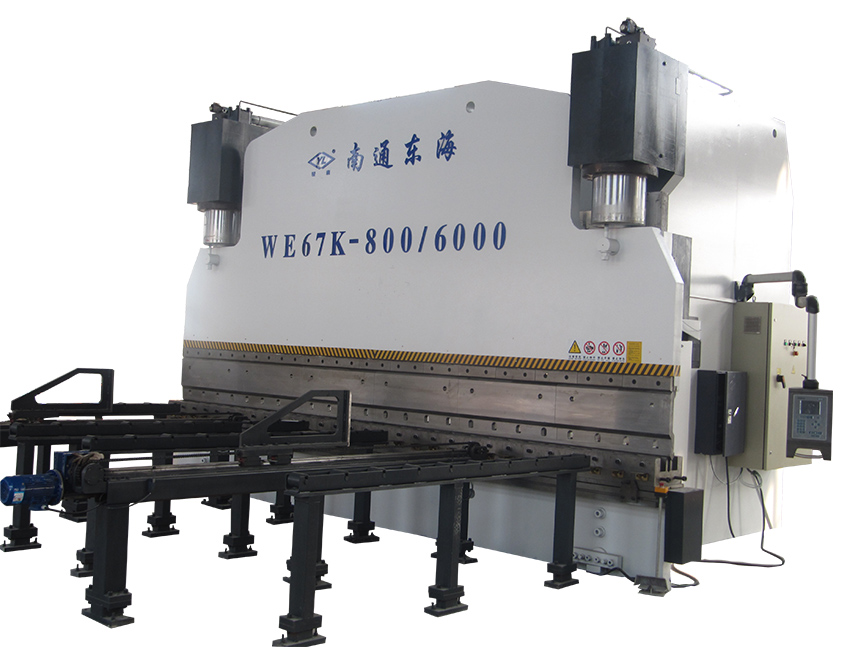

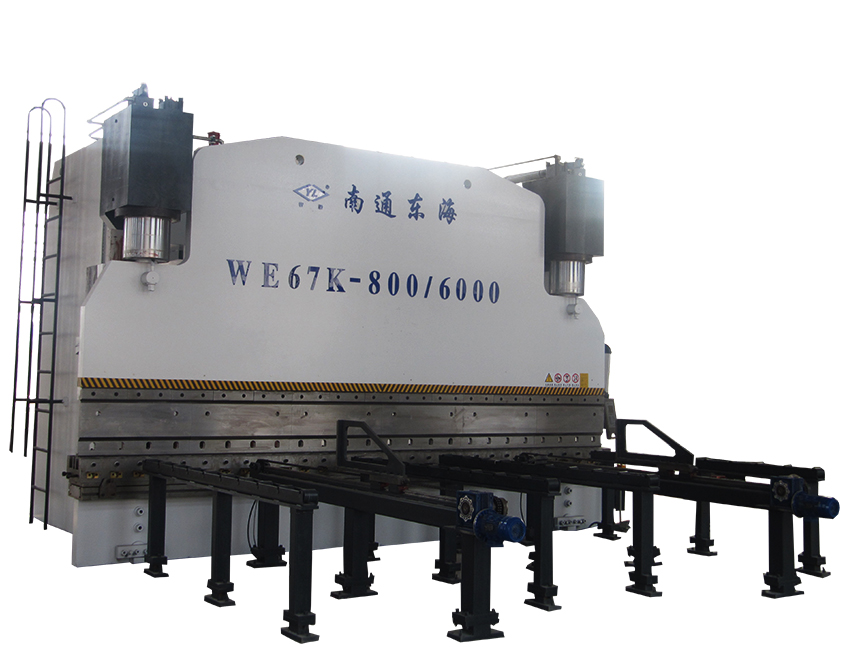

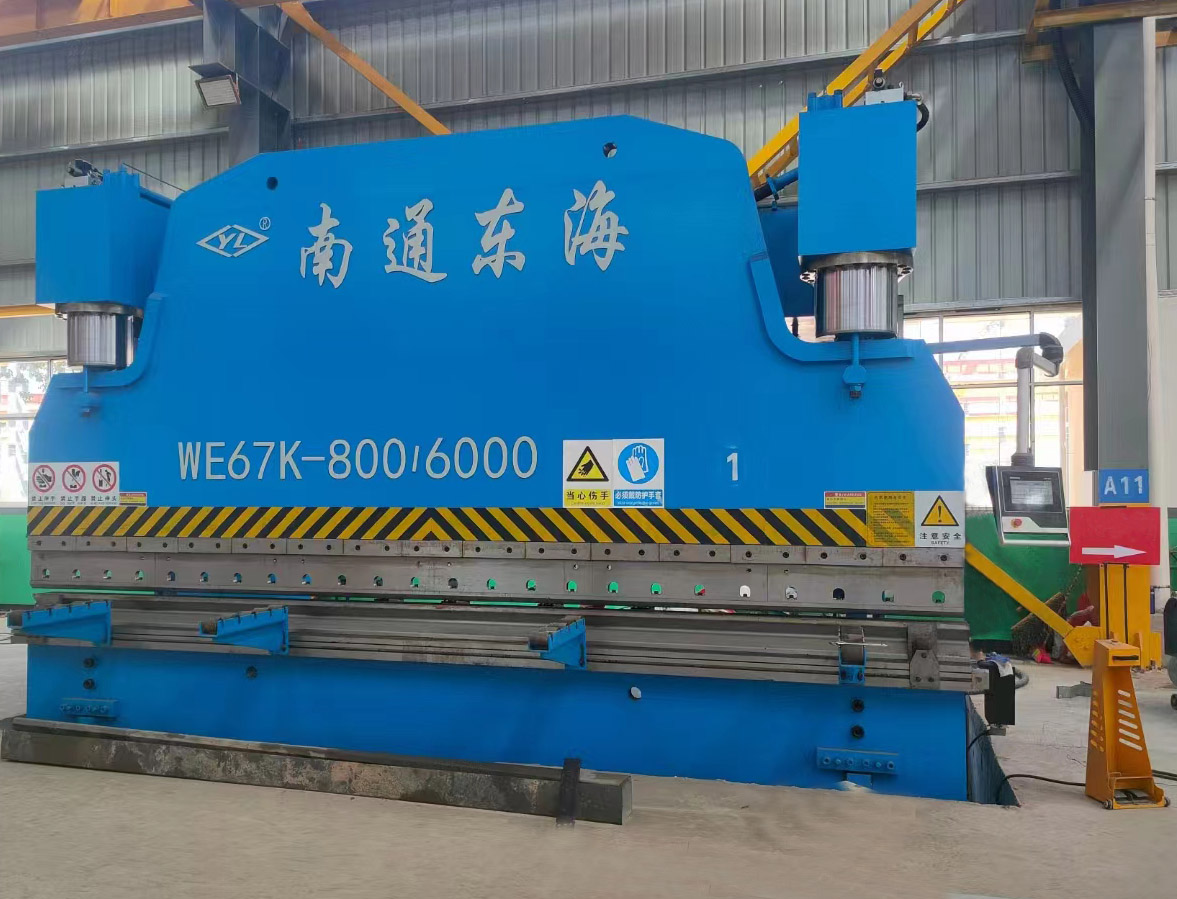

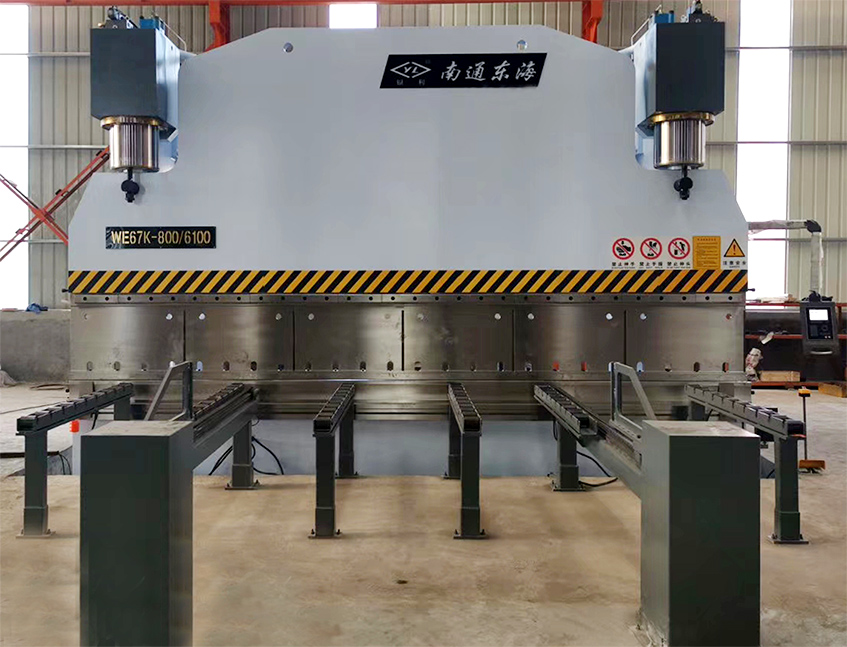

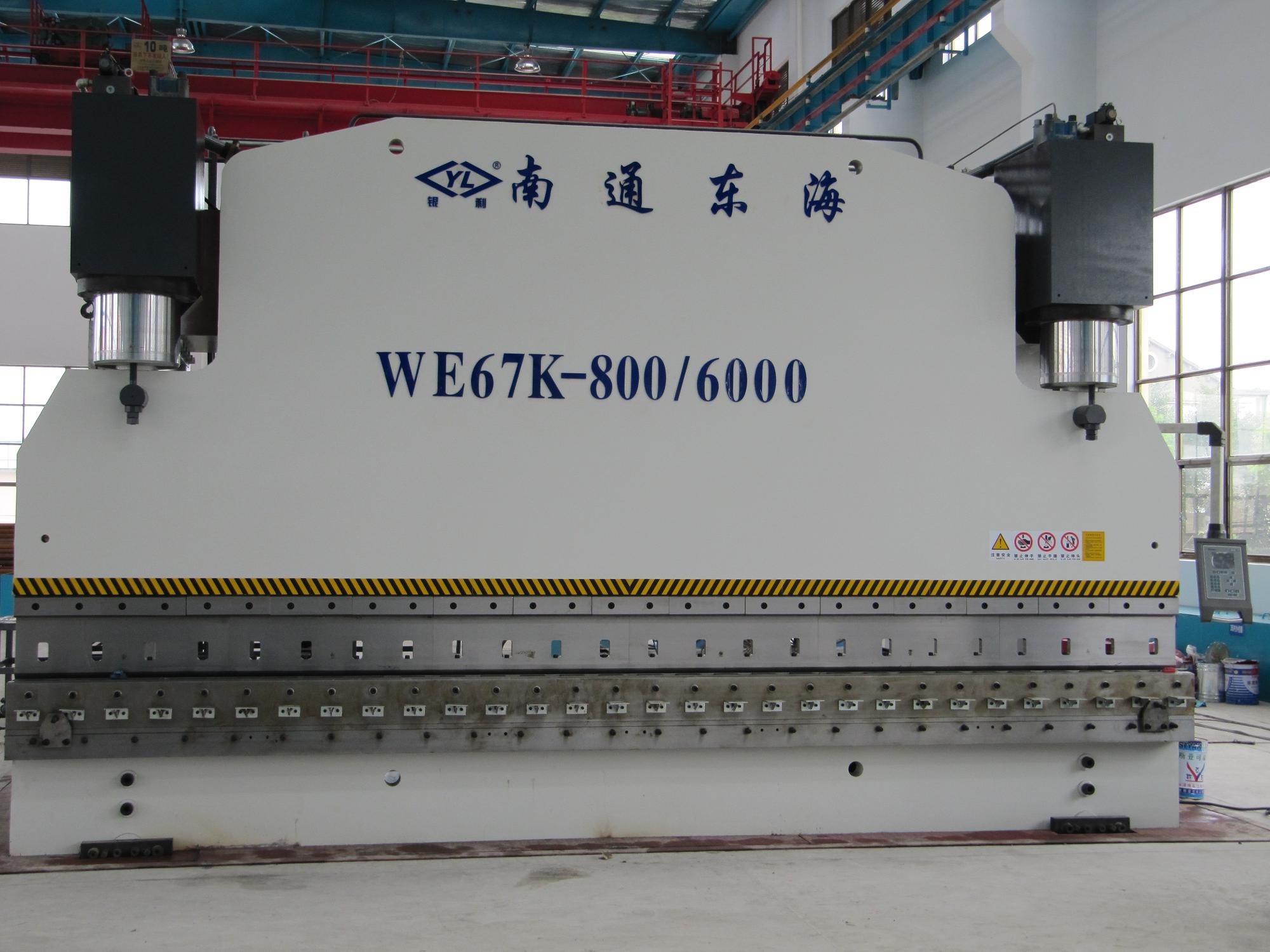

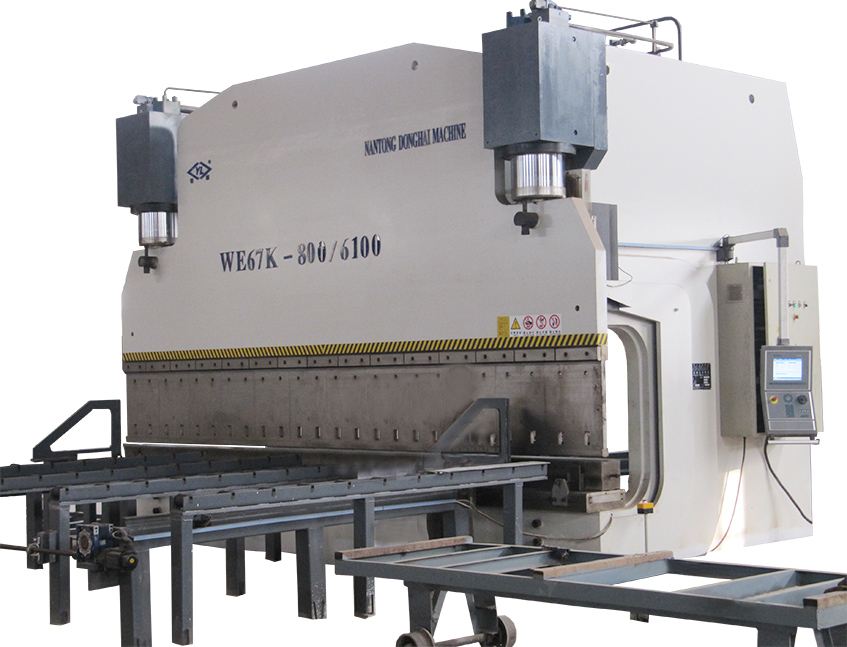

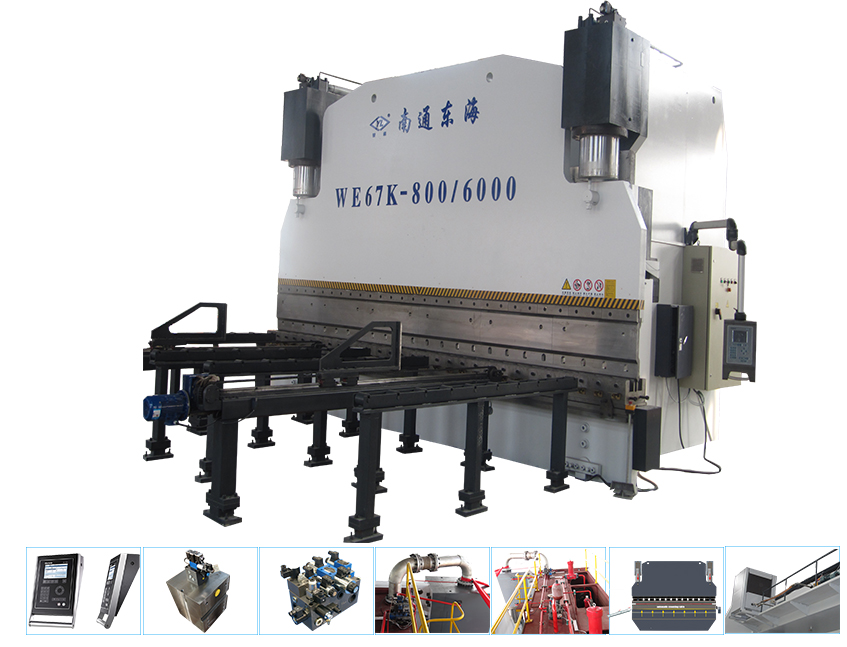

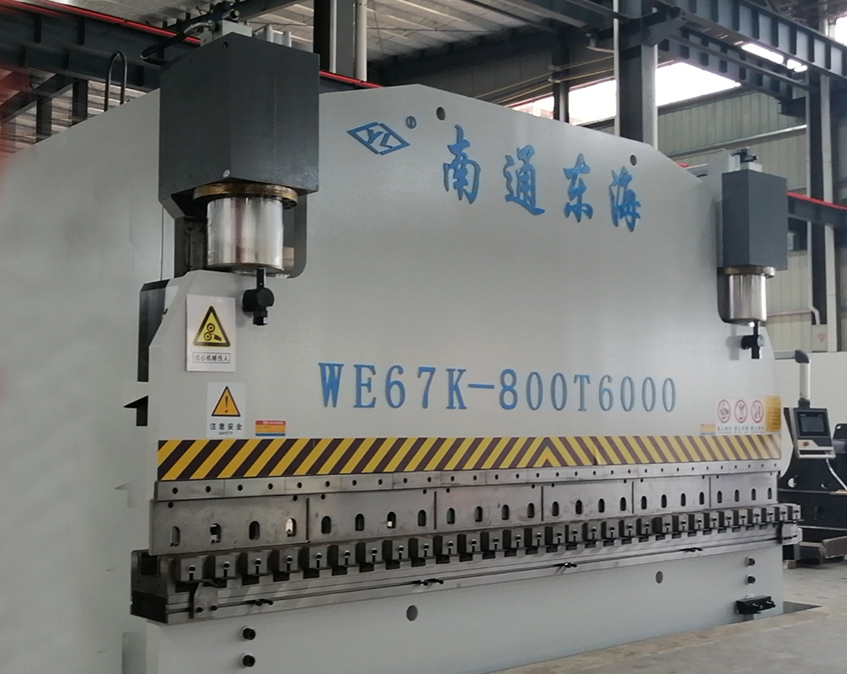

WE67K-800/6000 CNC Press brake
Parameters
|
1 |
Nominal pressure |
8000 |
KN |
|
2 |
Bending width |
6000 |
mm |
|
3 |
Distance between uprights |
4800 |
mm |
|
4 |
Stroke |
400 |
mm |
|
5 |
Max. daylight |
800 |
mm |
|
6 |
Throat depth |
500 |
mm |
|
7 |
Working table length |
6000 |
mm |
|
8 |
Approaching speed |
70 |
mm/s |
|
9 |
Bending speed |
7 |
mm/s |
|
10 |
Returning speed |
60 |
mm/s |
|
11 |
Main motor power |
2x37 |
KW |
|
12 |
Oil pump |
2x50 |
mr/r |
|
13 |
Back gauge range |
600 |
mm |
|
14 |
Machine length |
6200 |
mm |
|
15 |
Machine width |
3200 |
mm |
|
16 |
Machine height |
4800 |
mm |
|
17 |
CNC axis |
Y1-Y2-X+V |
|
Features
▲ highly productive, accurate, and economical.
▲close loop proportional hydraulics for beam synchronization
▲REXROTH highly precise proportional valve to control accurate beam movement
▲ accurate & fine beam position control by micro limit switch.
▲ hydraulic cylinder with twin type sealing low & high pressure and hard chrome.
▲moving control panel with on/off controls, emergency push button &selector for inching,
▲the current position and set position of the Y1, Y2, X, are showed on the CNC controller LCD.
▲three types operation way: manual, semiautomatic and automatic
▲CNC controlled mechanical pulling-rod anti-crowing device(V)
▲FAGOR lineal scale
▲servo motor
▲DA-53T CNC control system
Instruction of structure

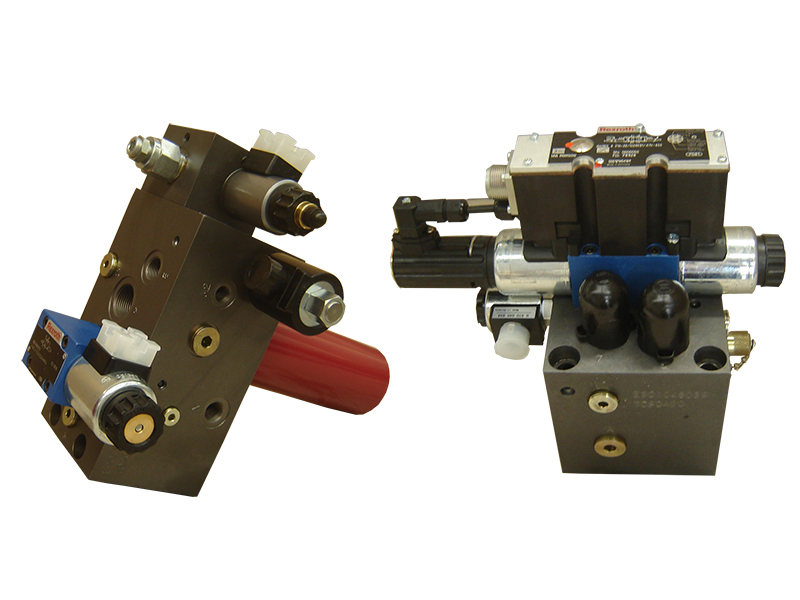

--REXROTH Hydraulic Manifold Control Block

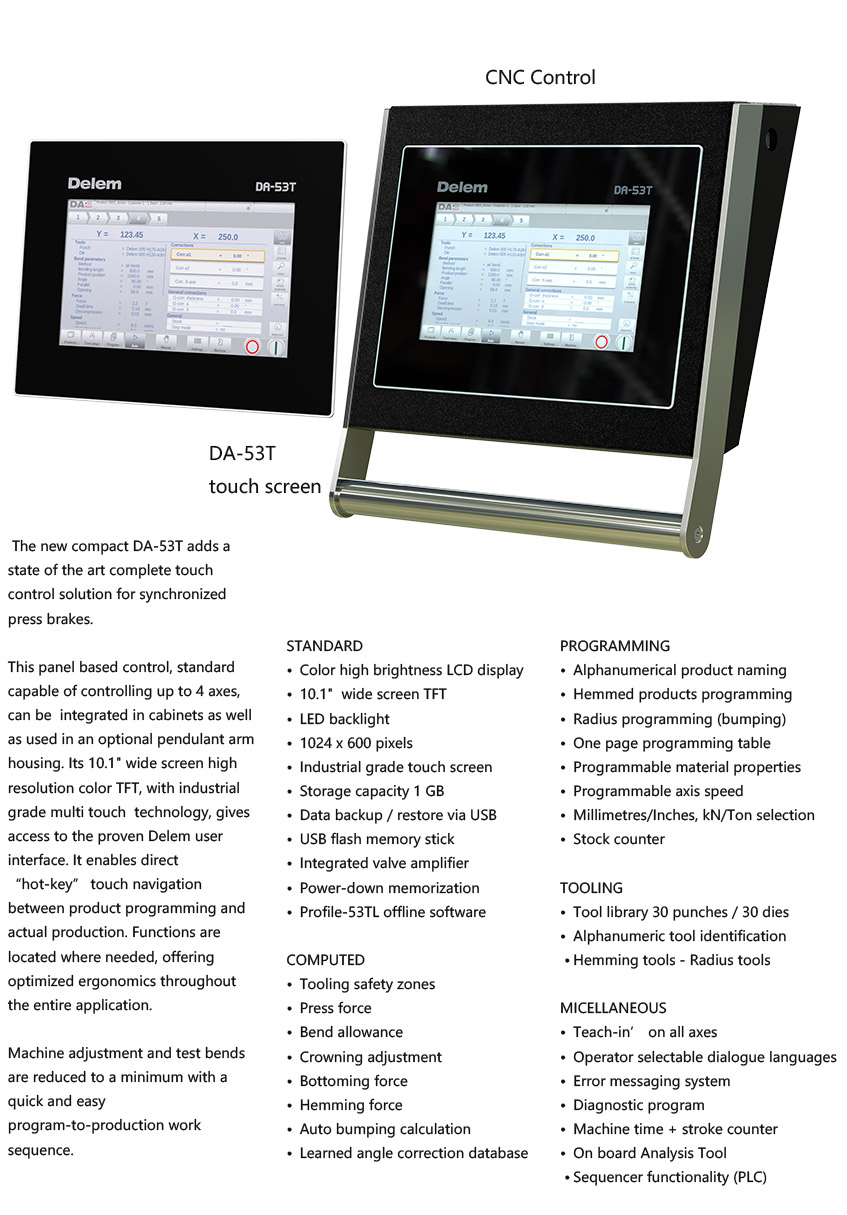

DA-53T CNC controller

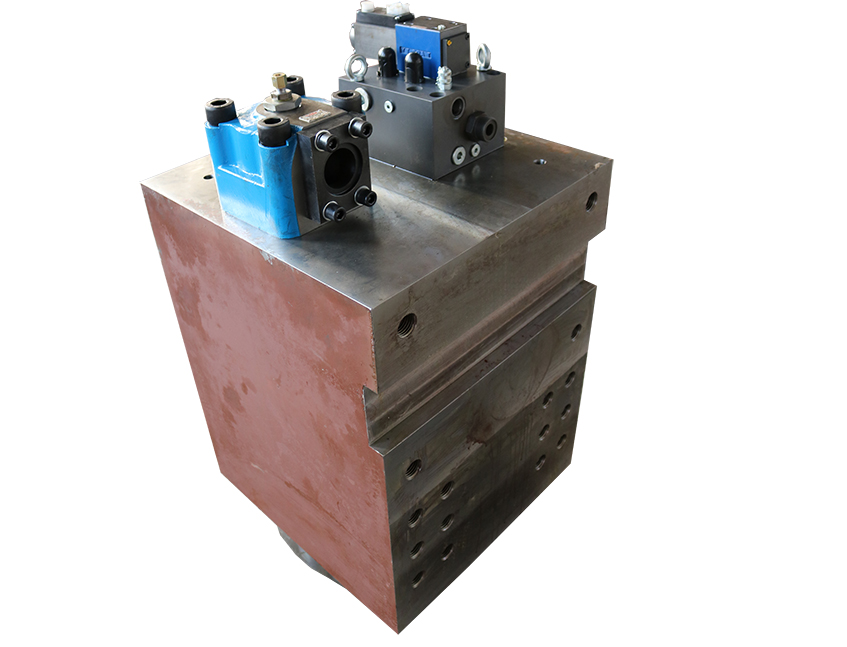

Cylinder

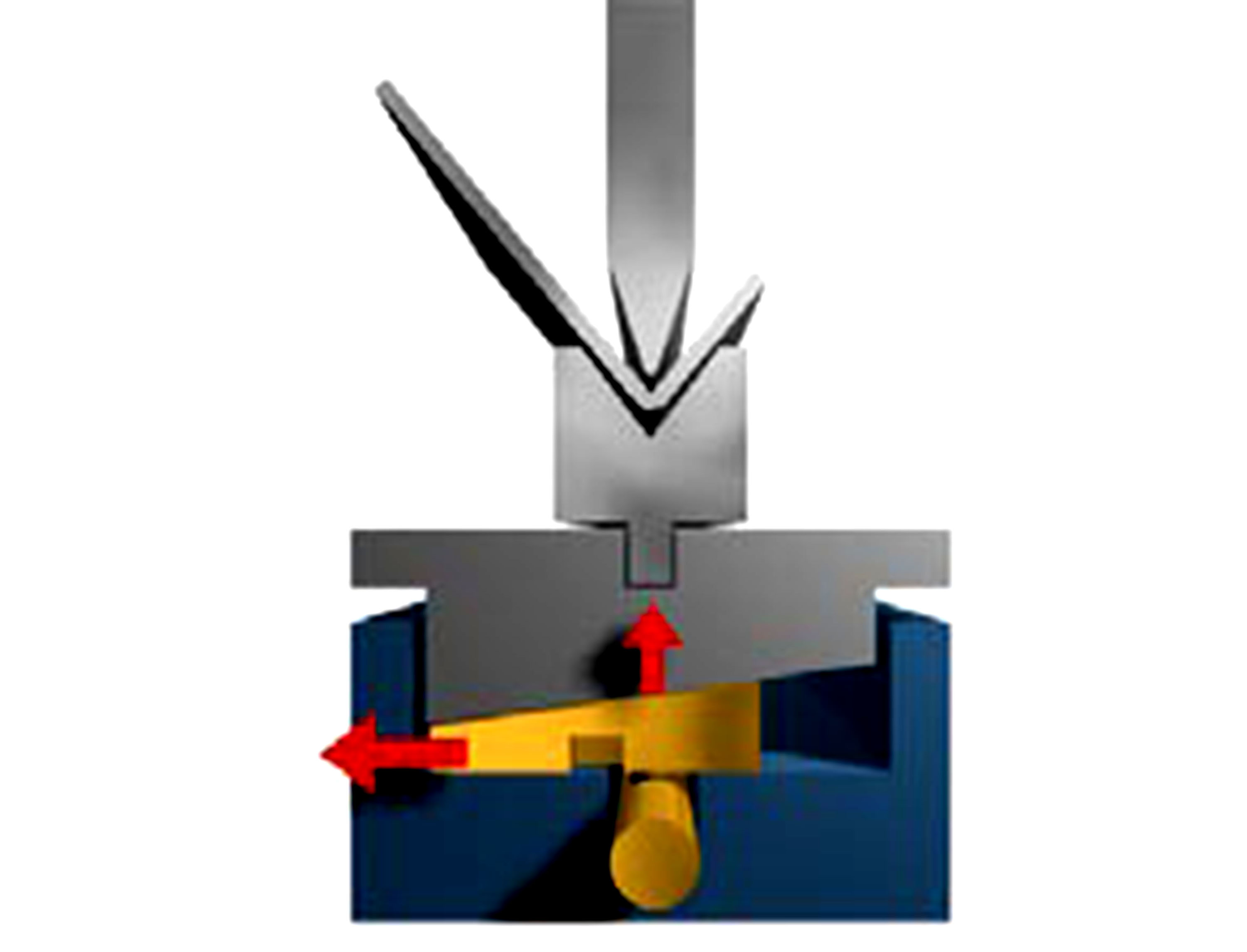

CNC controlled crowning table

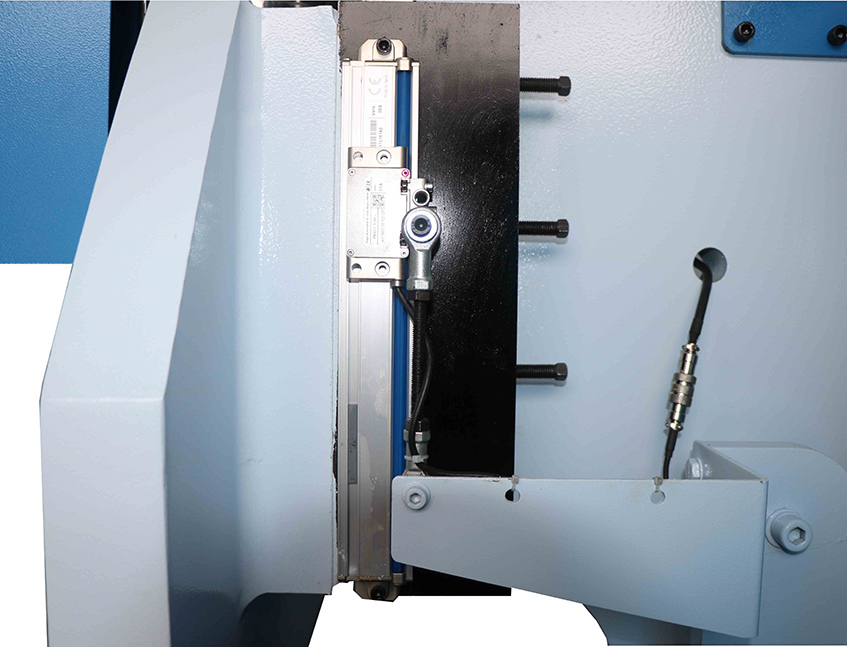

Lineal scale

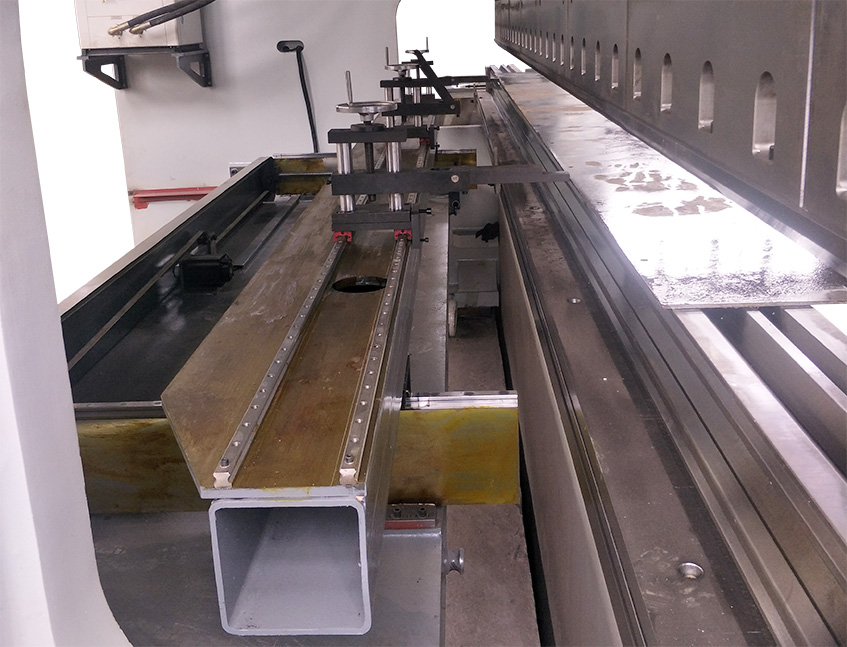

Back gauge ( X axis)
