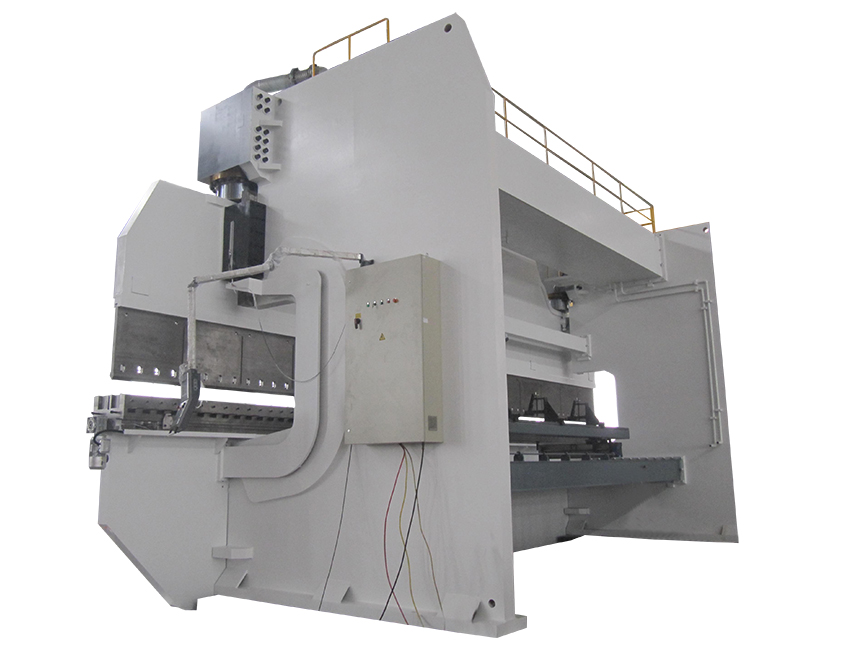

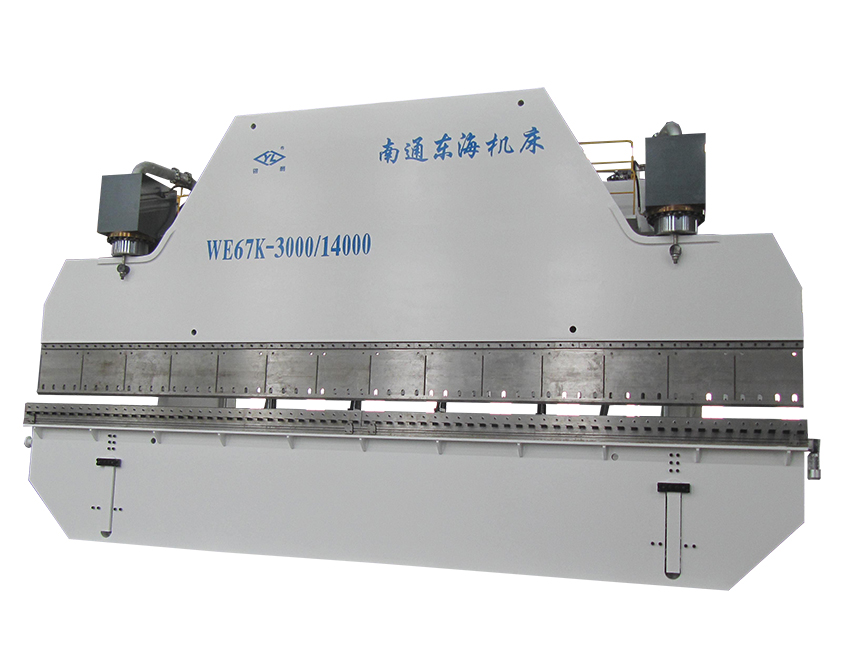

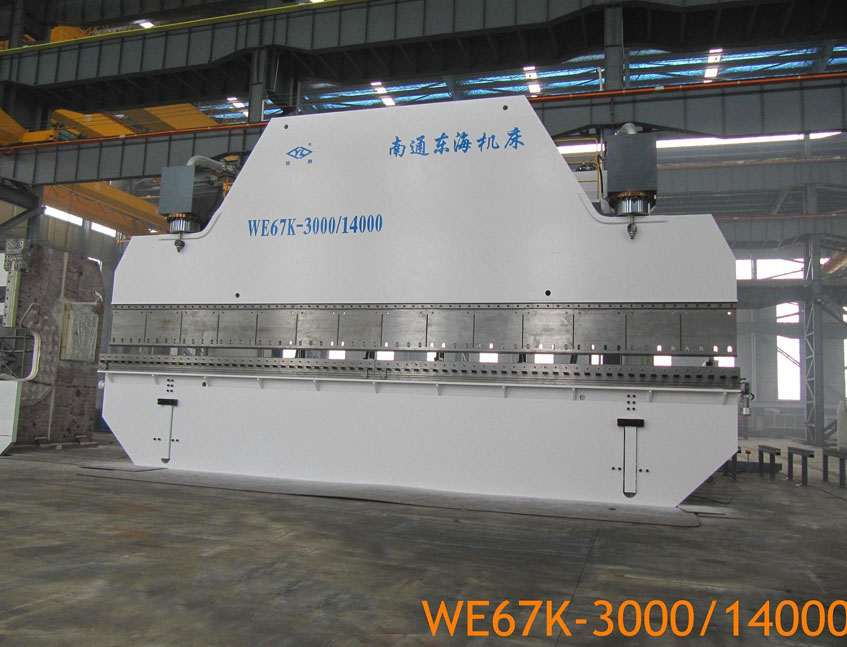

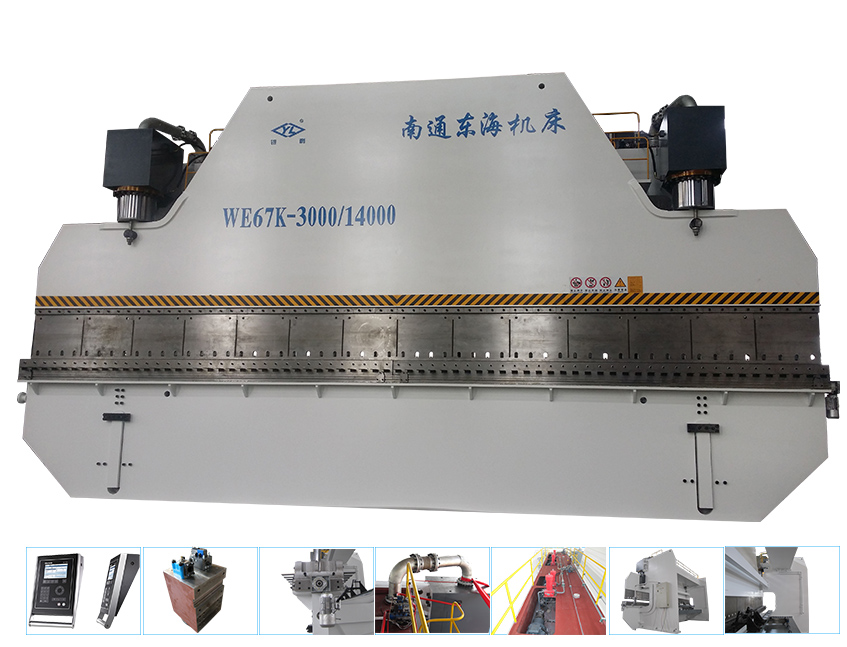

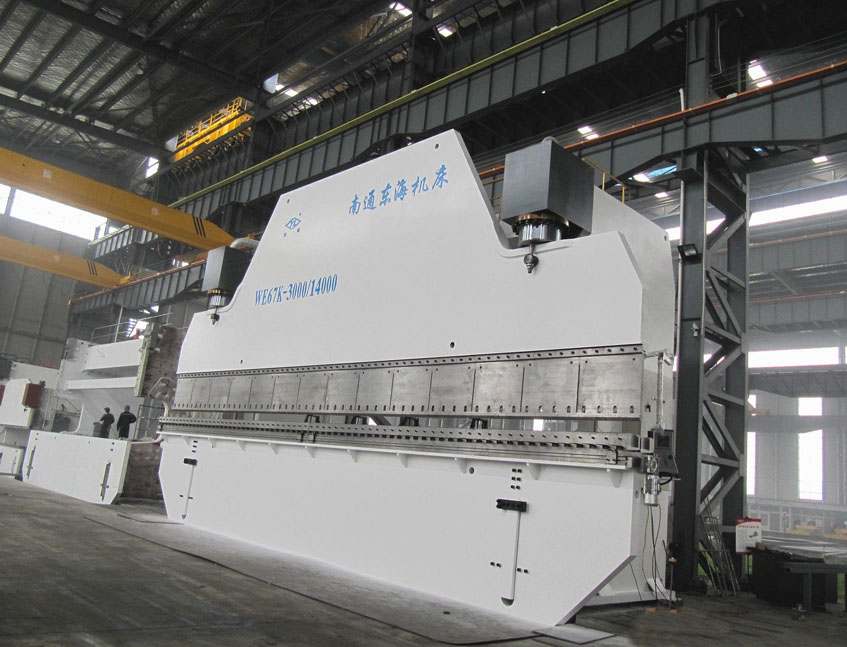

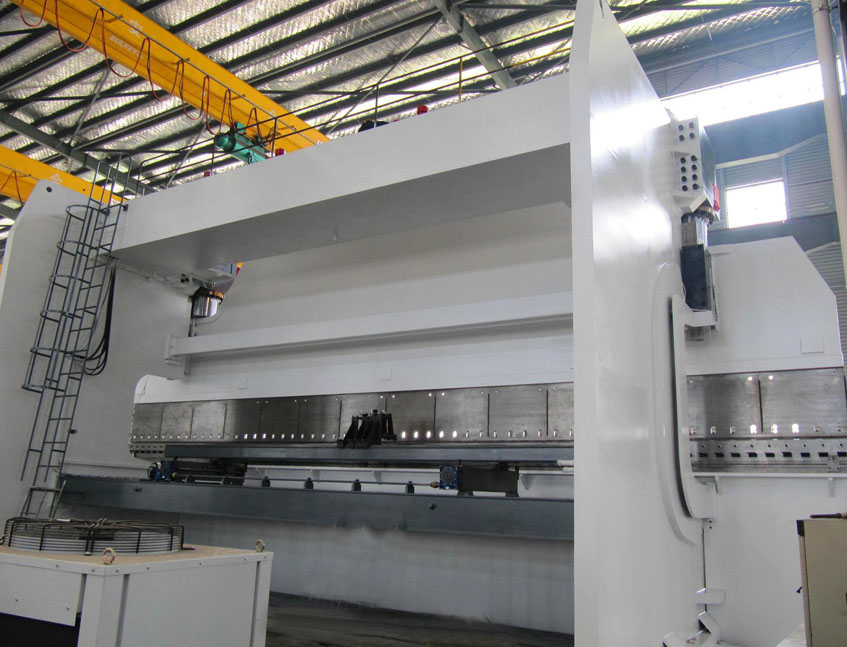

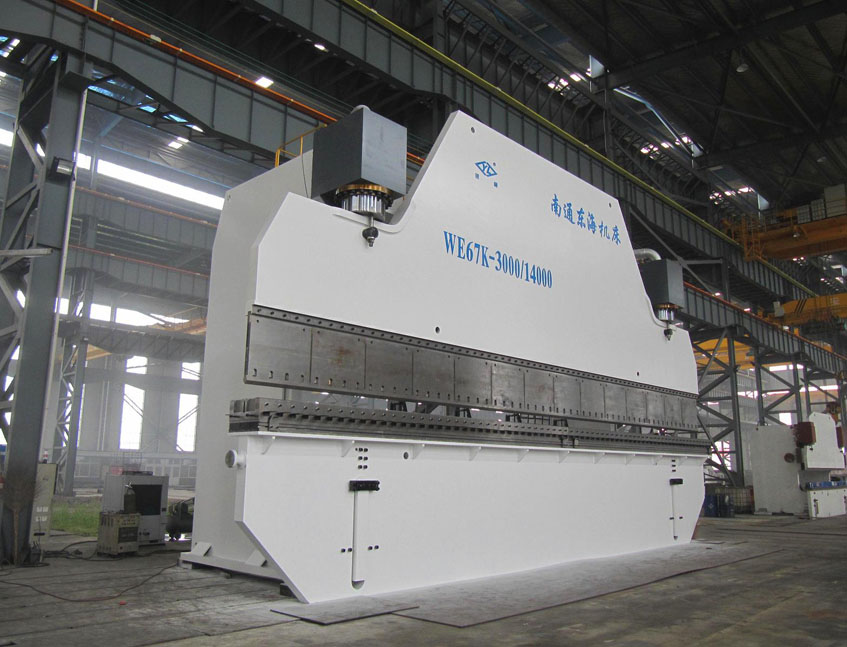

WE67K-3000/14000 CNC electric-hydraulic synchronous Press Brake Machine

WE67K-3000/14000 CNC controlled electric-hydraulic synchronous press , which are designed to give more accuracy and better productivity. The controller has a facility to program the various jobs with complex bending sequence on screen.

Parameters:

The CNC Control is used for 3+1 Axis Control or more.

Synchronized beam axes Y1 & Y2

Back Gauge axis X

Automatic anti-deflection axis V

With modern CNC control, more axis can be CNC controlled, such as X1,X2, R, Z

DA-66T CNC controller

The program gives facility to bend different bending degrees; different back gauge positions & different open positions. It has a facility to save different programs and it can be reloaded as & when required.

The machine can be equipped with some high finishing optional choice, like back gauge X1, X2,R & Z axis

Automatic crowing table

WE67K CNC control press brakes are supplied with the automatic anti-deflection system, by mechanical or hydraulic.

Back gauge

Cylinder

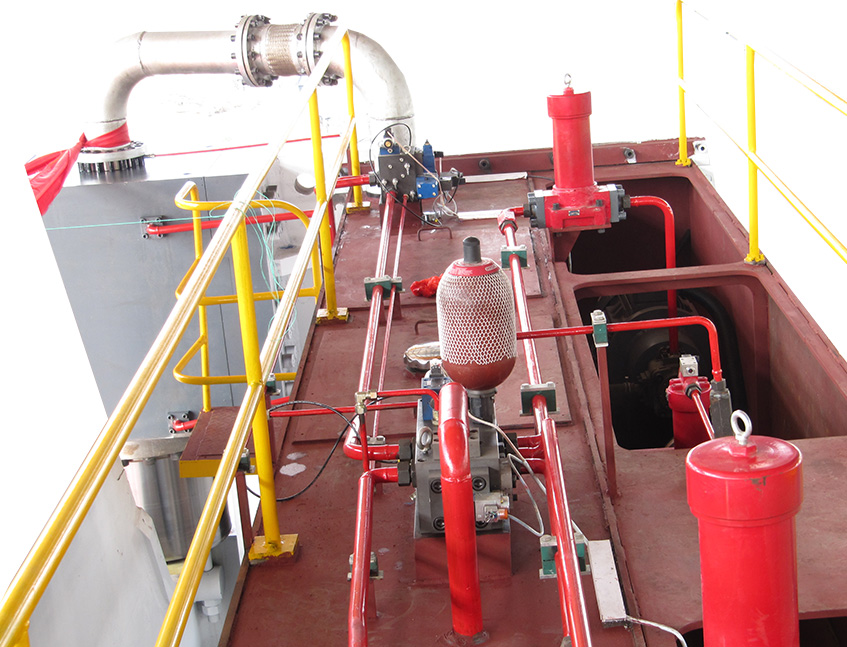

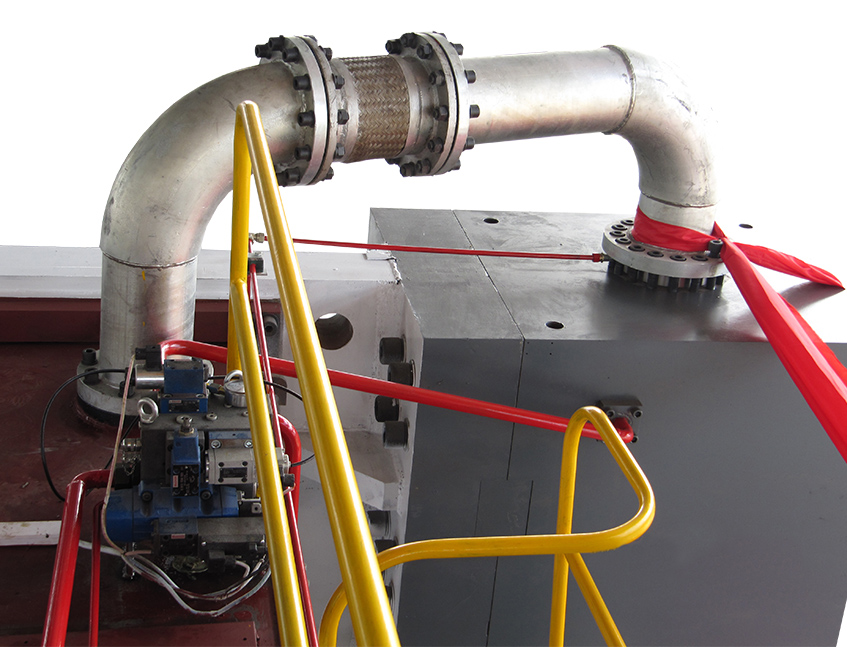

Top View

Features

--World class dedicated controller from Delem

--Y1-Y2-X +V 3+1 or more axis control

--Bend angle & Depth Mode program.

--Highly Precise press brake scale for Y1, Y2 axis.

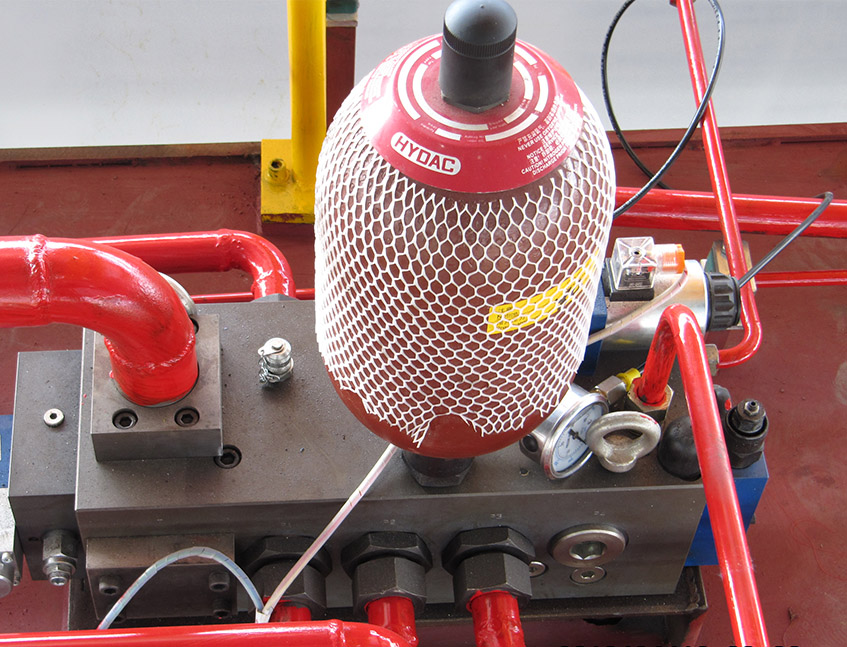

--Close loop proportional hydraulics for beam synchronization.

--Zero leak sealing of hydraulic cylinders.

--Hardened & ground Multi “V” Die & Punch.

--Quick release die clamps.

--Highly Precise proportional valve to control accurate beam movement.

--The power pack is supplied by Bosch –Germany.

--Back gauge consist of hardened & ground ball screw,

--liner motion bearings and AC servo drive for accurate position up to 0.05 mm.
