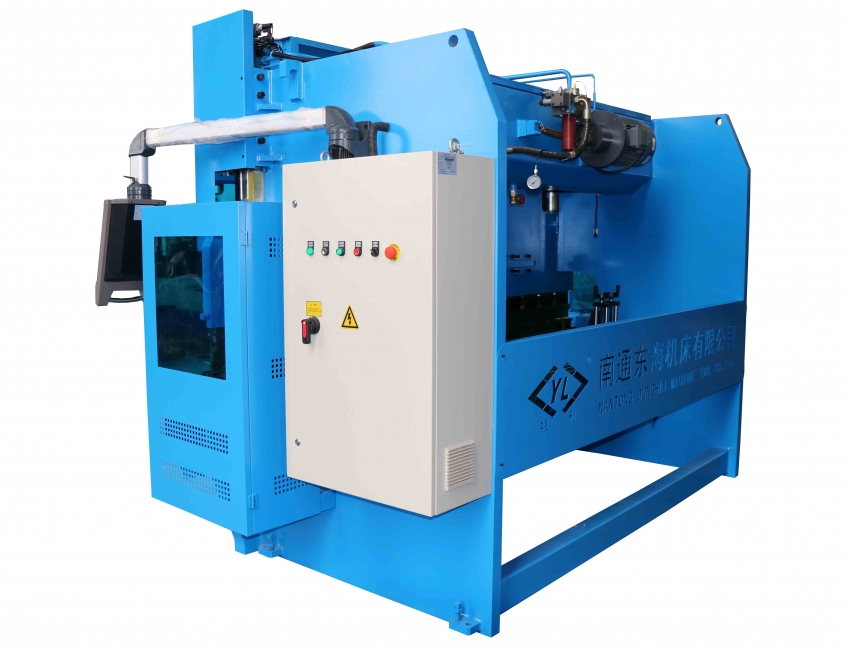

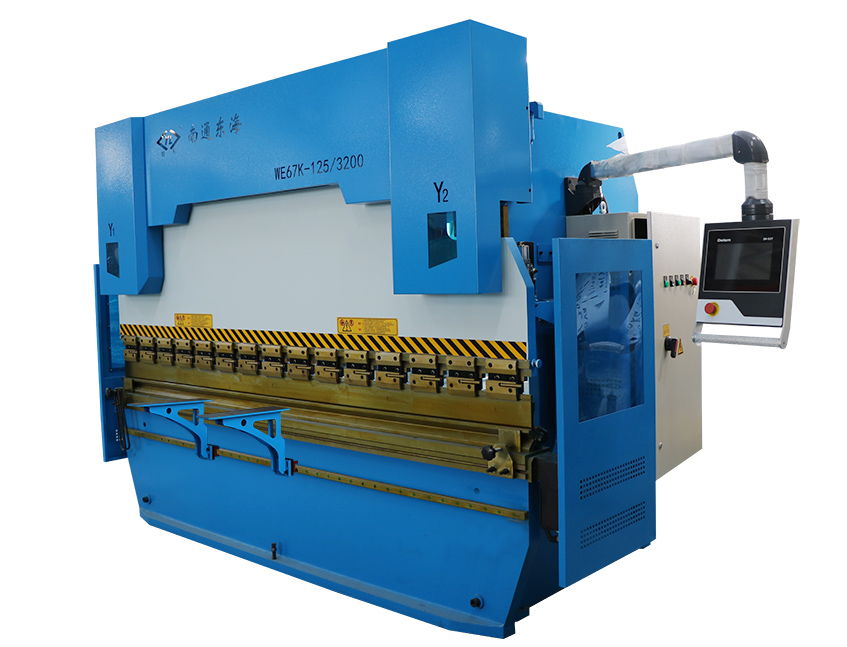

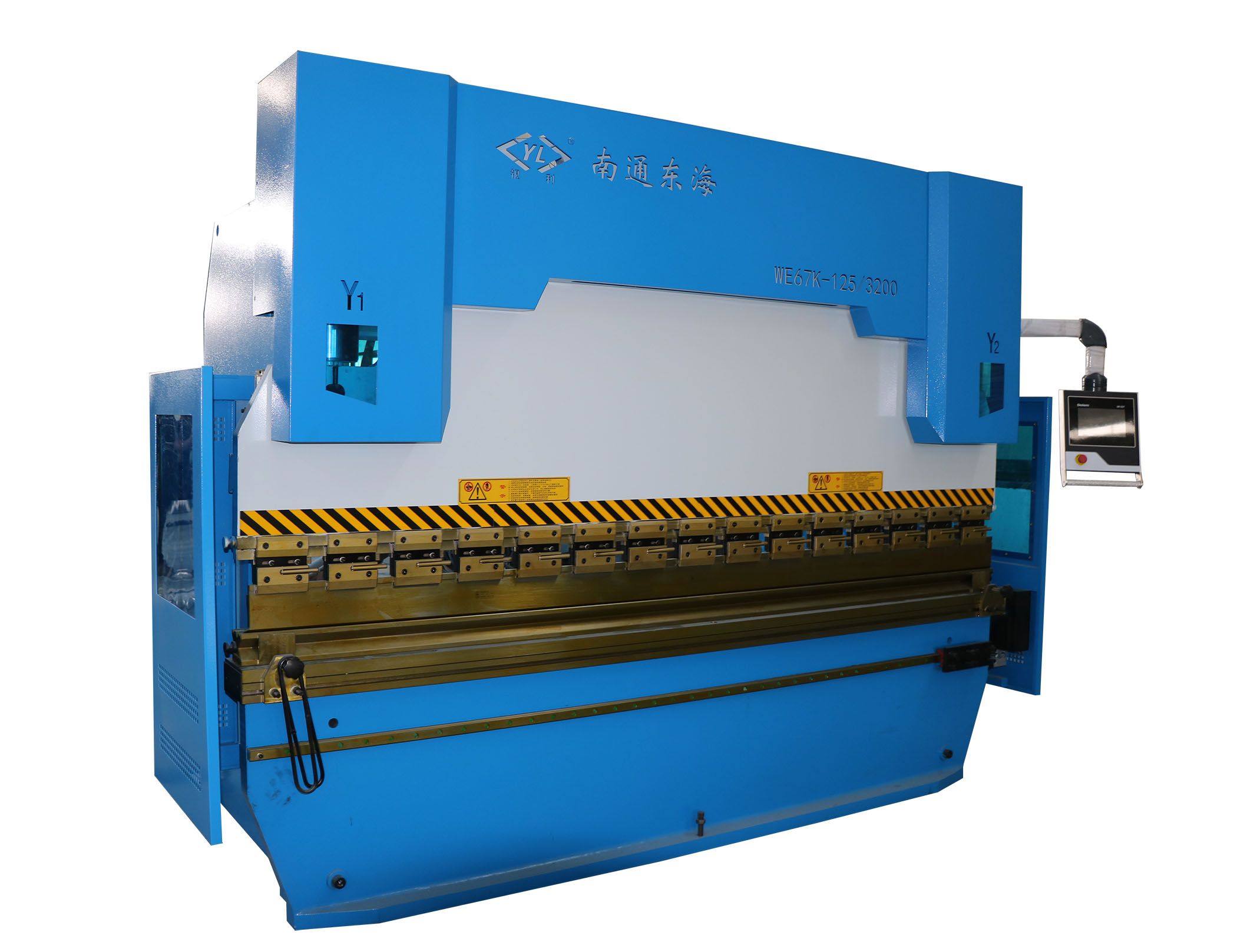

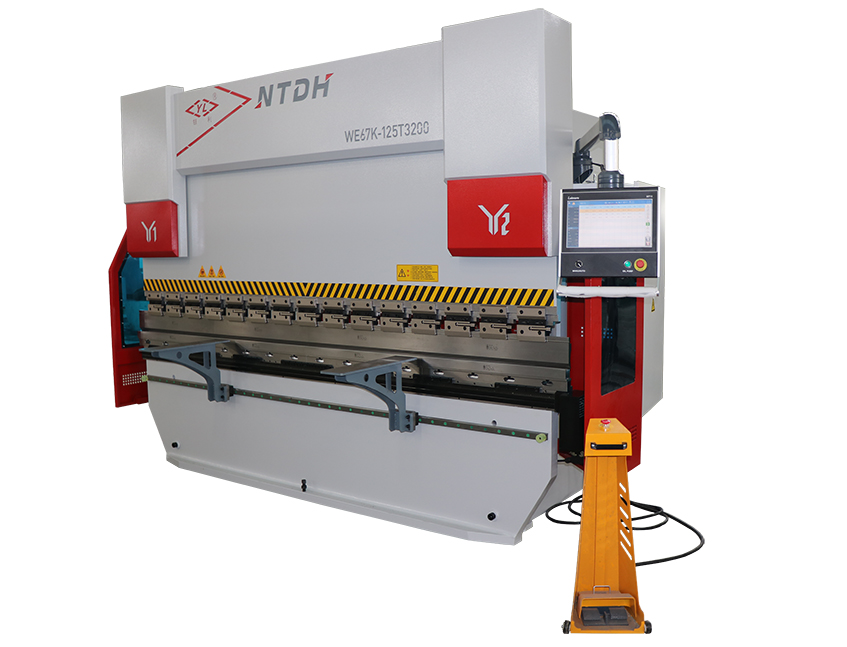

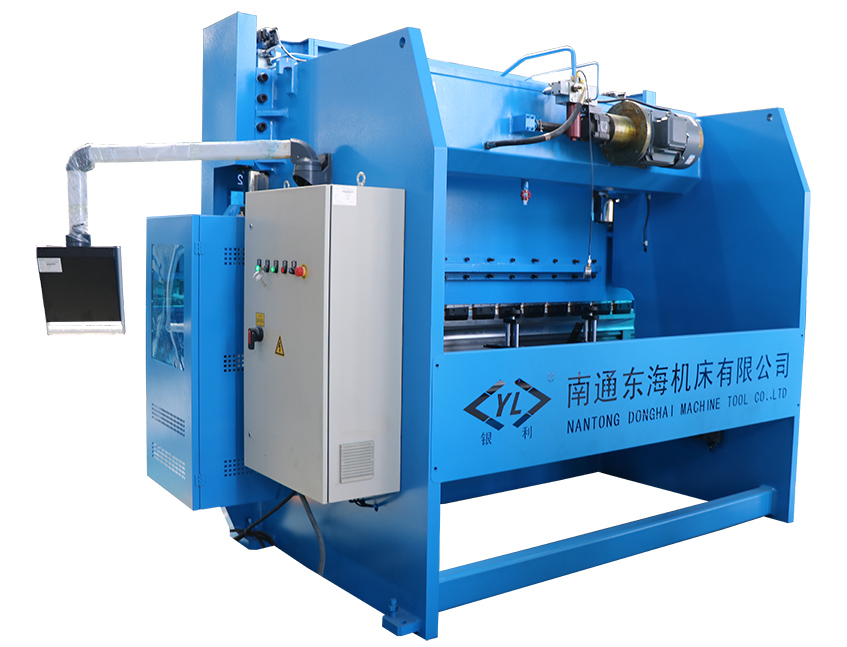

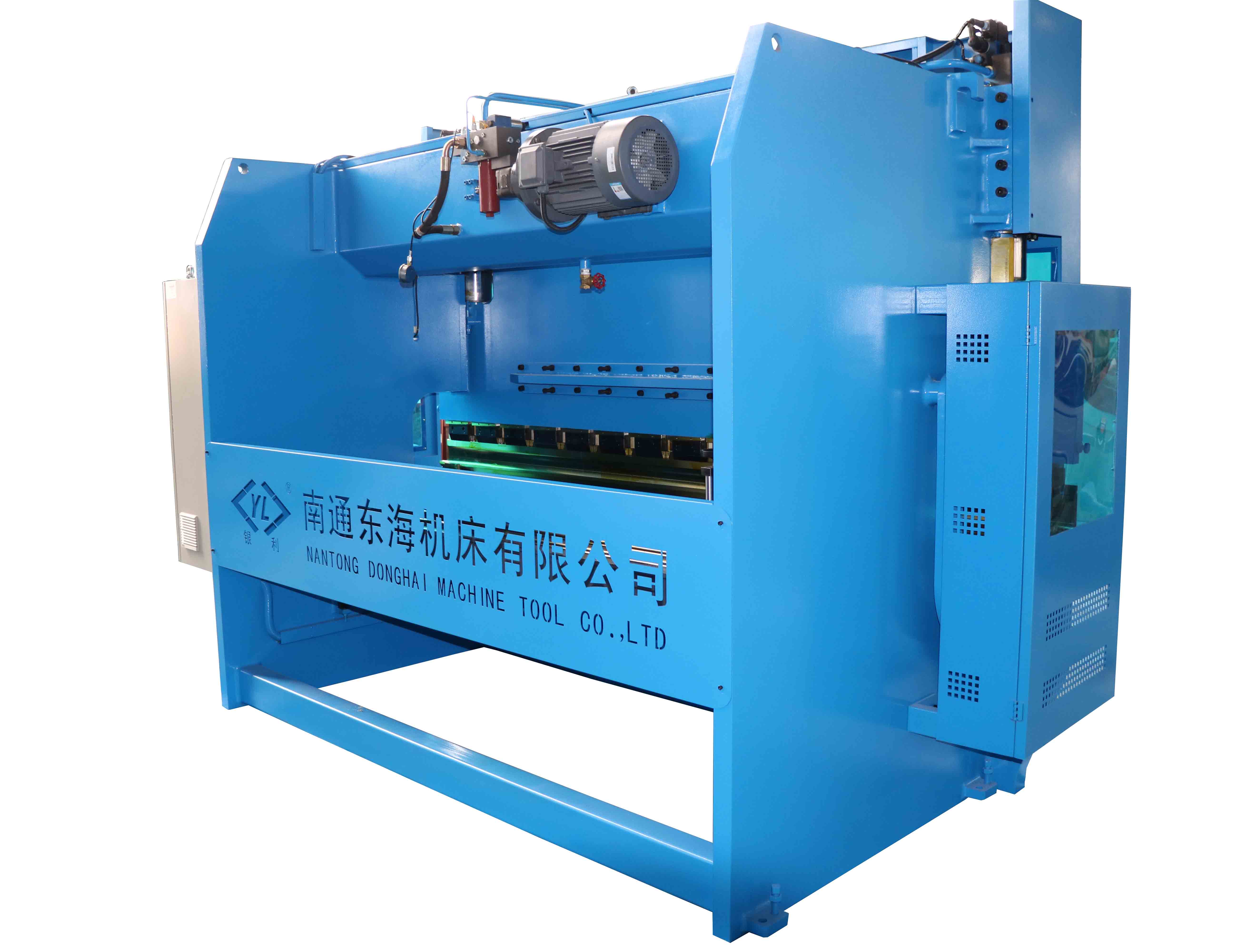

WE67K-125/3200  CNC Press brake

Parameters

Features

▲ highly productive, accurate, and economical.

▲close loop proportional hydraulics for beam synchronization

▲REXROTH highly precise proportional valve to control accurate beam movement

▲High alloy back gauge, with high rigidity in light heavy

▲ accurate & fine beam position control by micro limit switch.

▲ hydraulic cylinder with twin type sealing low & high pressure and hard chrome.

▲moving control panel with on/off controls, emergency push button &selector for inching,

▲ three speeds shit automatically

▲the current position and set position of the Y1, Y2, X, R are showed on the CNC controller LCD.

▲three types operation way: manual, semiautomatic and automatic

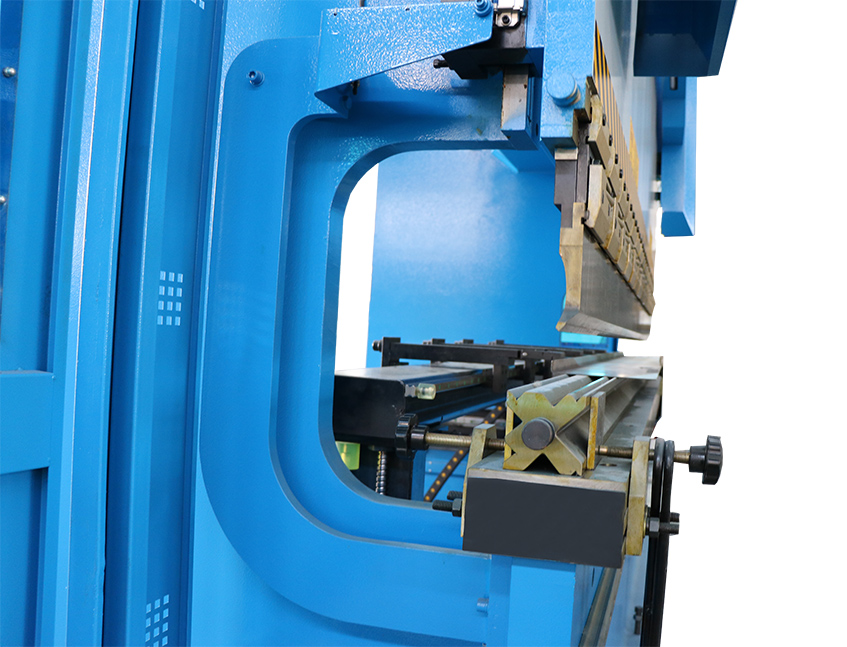

▲CNC controlled mechanical pulling-rod anti-crowing device(V)

▲FAGOR lineal scale to avoid the deflection bending

▲DA-53T CNC control system

▲liner motion bearings and AC servo drive for accurate position up to 0.05 mm.

--DA-53T CNC controller

--Automatic crowing table

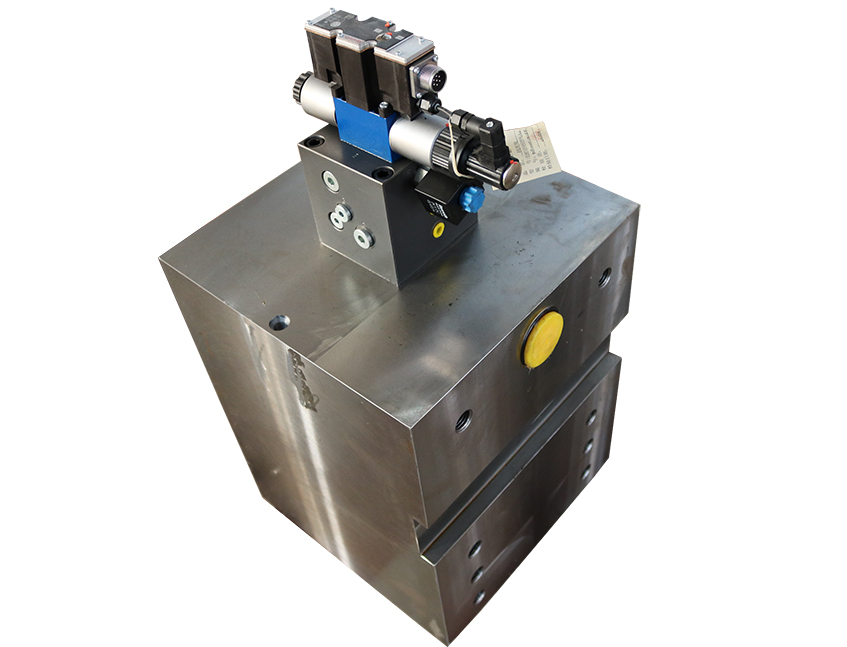

--Precious cylinder

--Hydraulic system

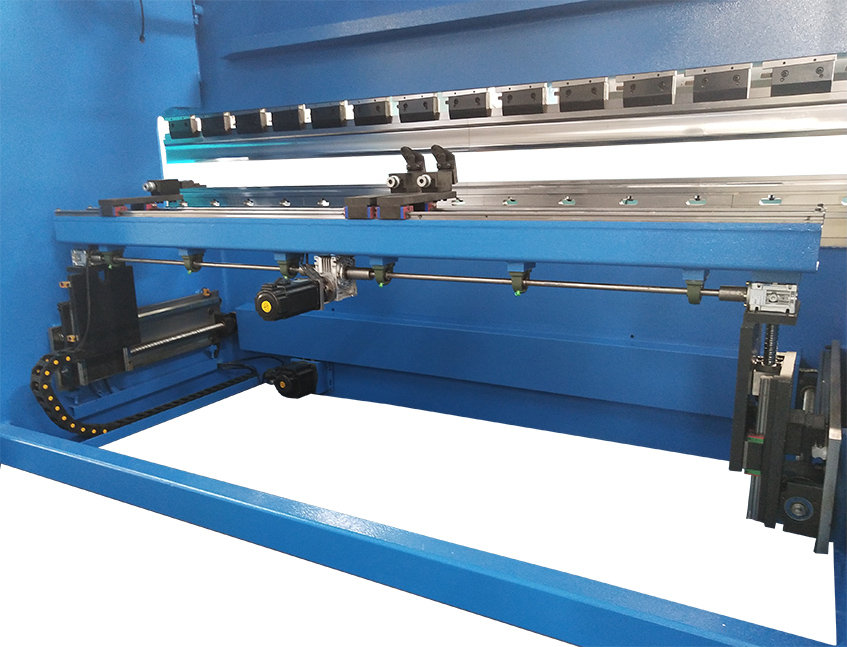

--CNC back gauge (X-R axes)

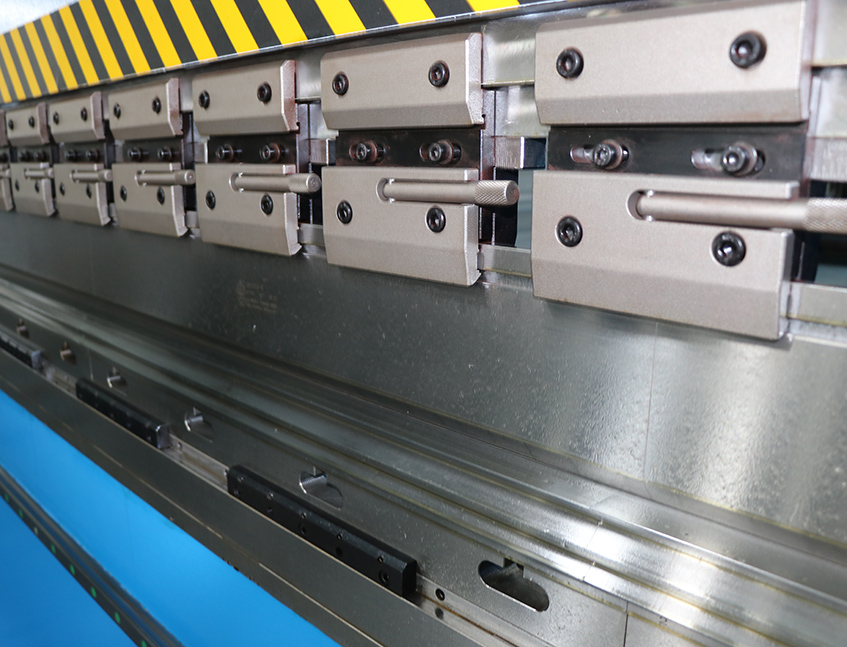

--Quick clamping system

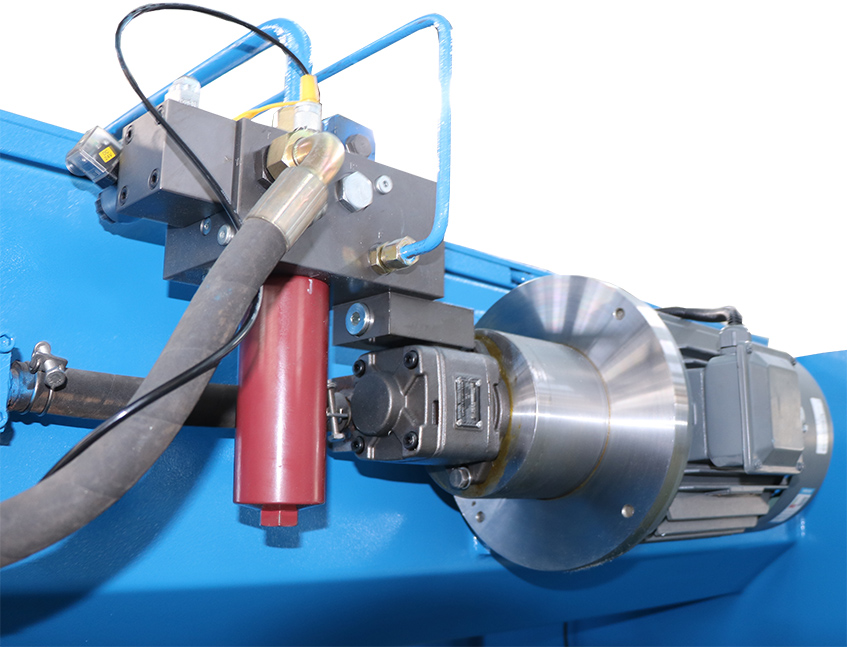

--Motor & pump

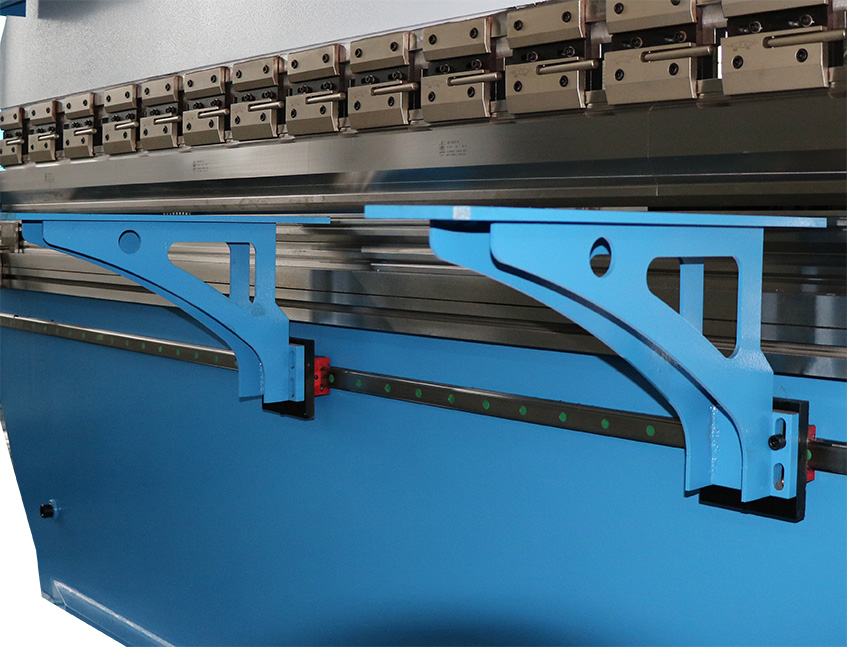

--Slidding sheet support

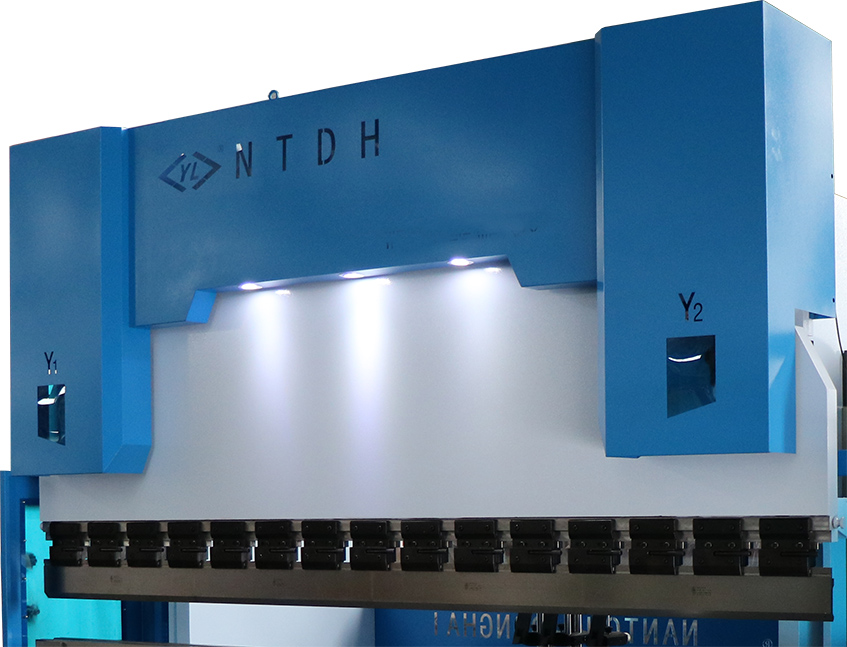

--Operating lamp

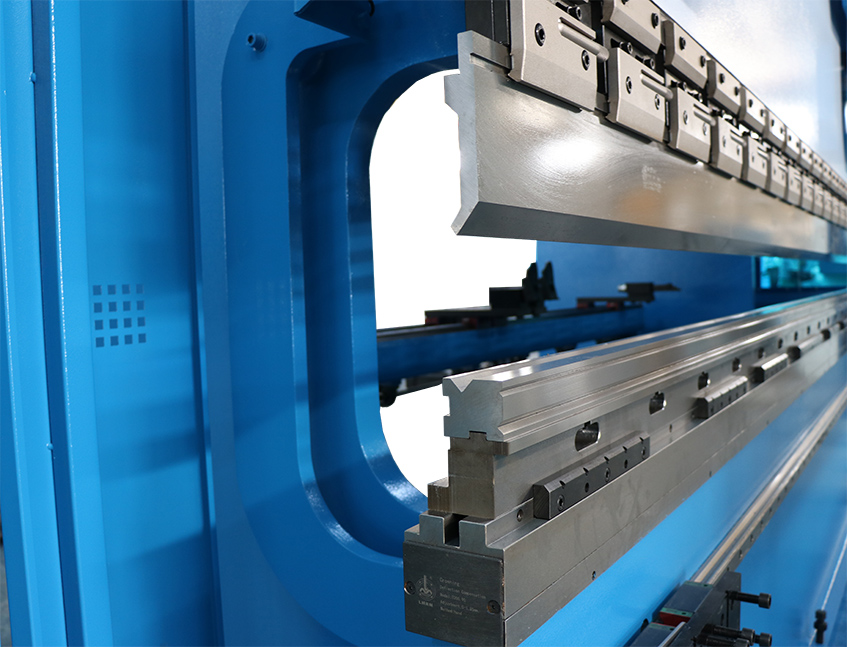

--Mold

--Optional of punch & die
