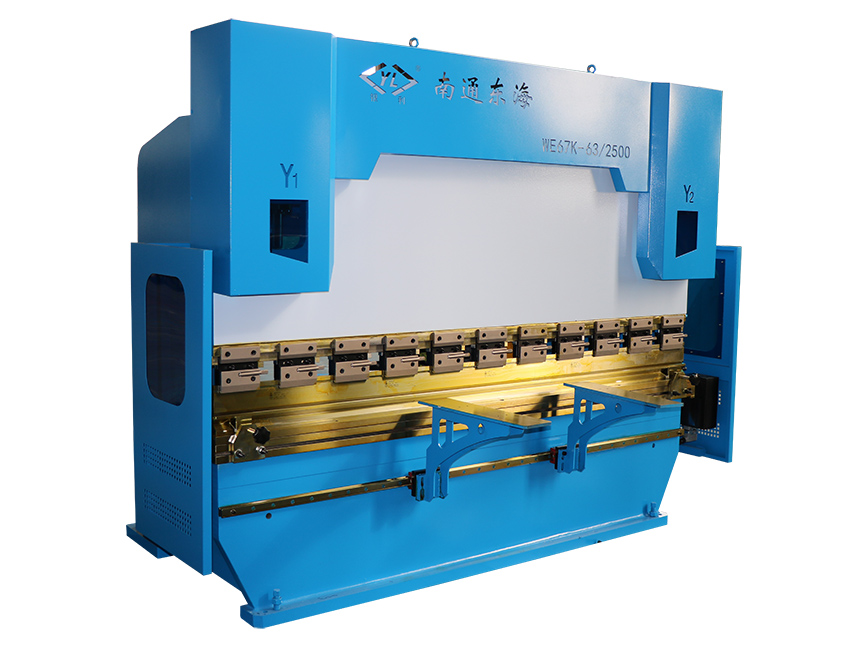

WE67K-63/2500  CNC Press brake

Parameters

Features

▲ highly productive, accurate, and economical.

▲close loop proportional hydraulics for beam synchronization

▲BOSCH-REXROTH highly precise proportional valve to control accurate beam movement

▲High alloy back gauge, with high rigidity in light heavy

▲ accurate & fine beam position control by micro limit switch.

▲ hydraulic cylinder with twin type sealing low & high pressure and hard chrome.

▲moving control panel with on/off controls, emergency push button &selector for inching,

▲ three speeds shit automatically

▲the current position and set position of the Y1, Y2, X are showed on the CNC controller LCD.

▲three types operation way: manual, semiautomatic and automatic

▲CNC controlled mechanical pulling-rod anti-crowing device(V)

▲HEIDENHAIN light encoder to avoid the deflection bending

▲DA-53T CNC touch control system

▲liner motion bearings and AC servo drive for accurate position up to 0.05 mm.

Instruction of structure

--BOSCH-REXTOTH Hydraulic Manifold Control Block

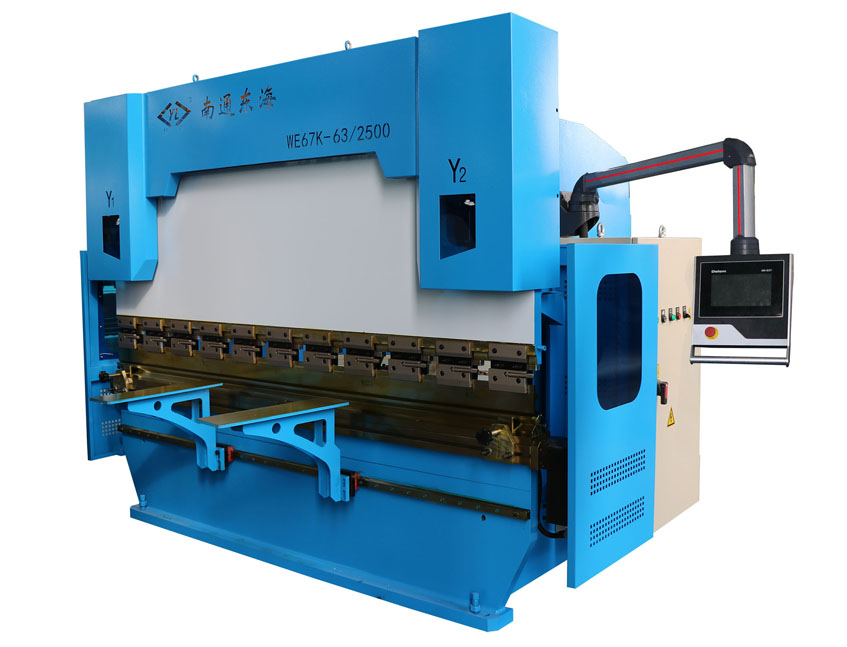

DA-53T CNC tounch scree  controller

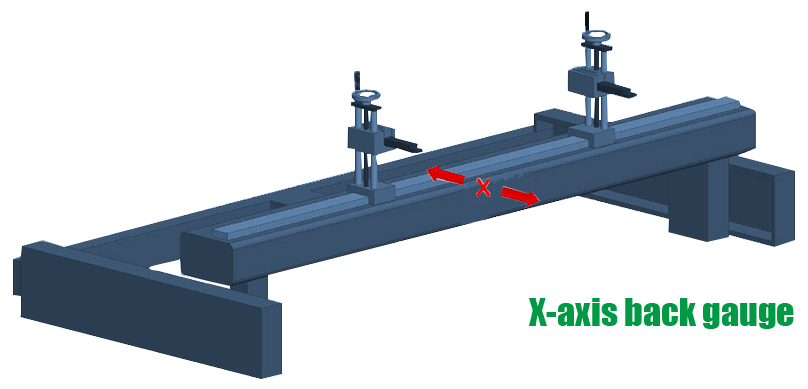

Back gauge (Xaxes)

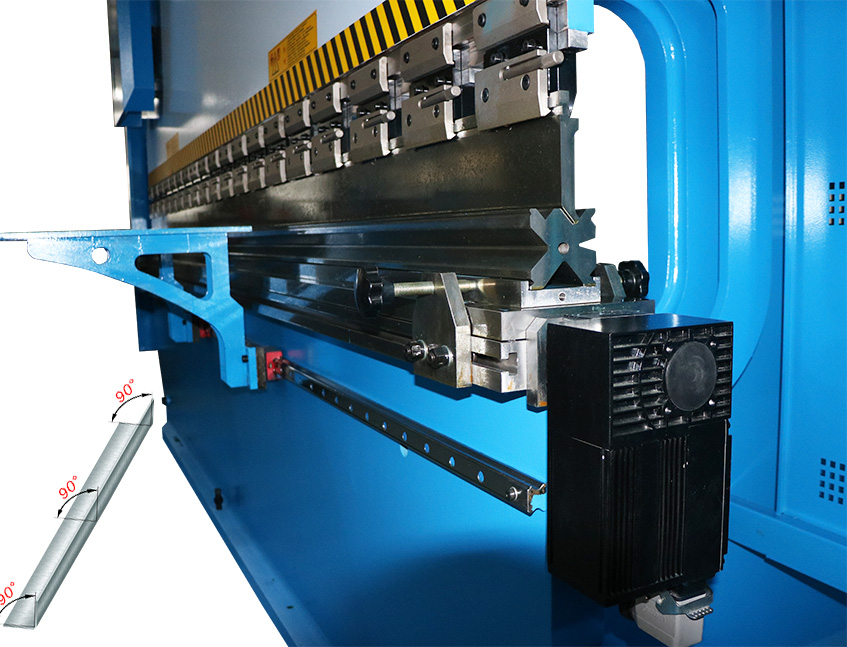

Automatic crowing table

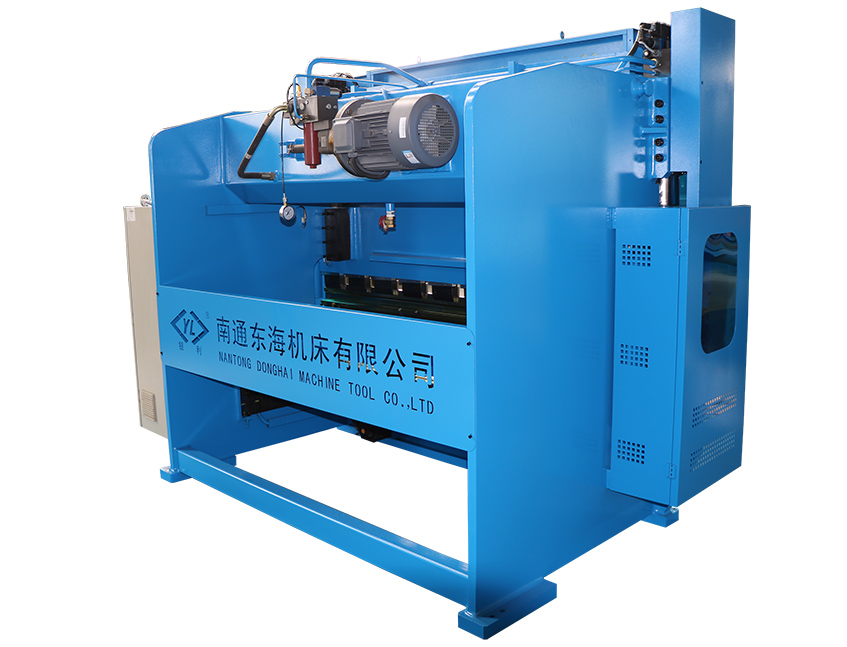

Hydraulic unit

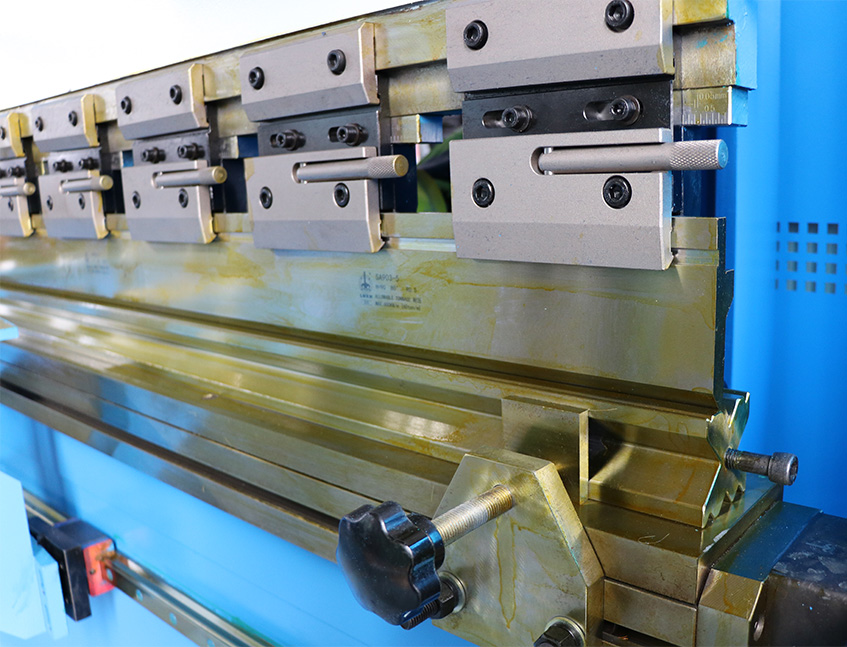

Punch & die

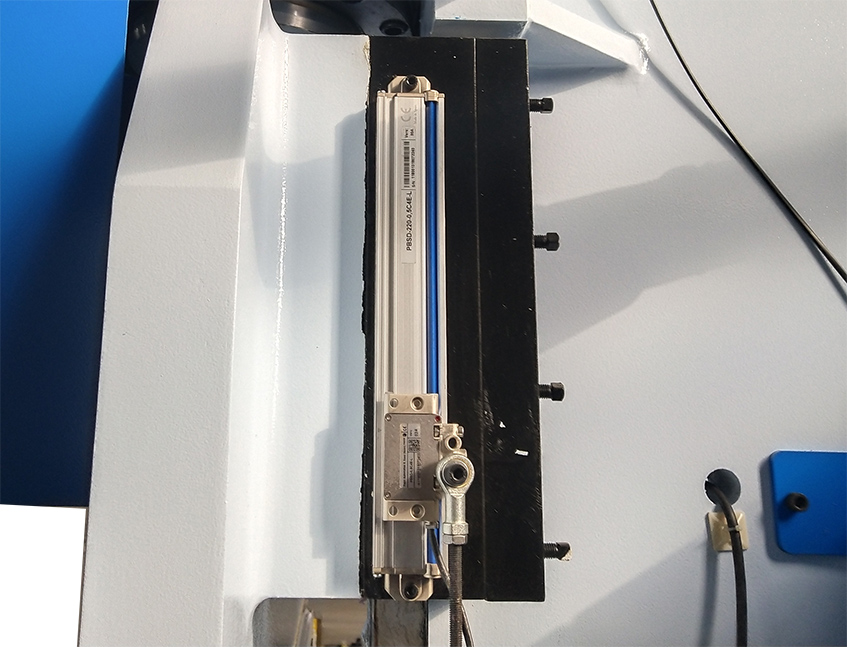

FAGOR light encoder

Slidding sheet support

Operating light

Ragid frame

Optional of punch & die

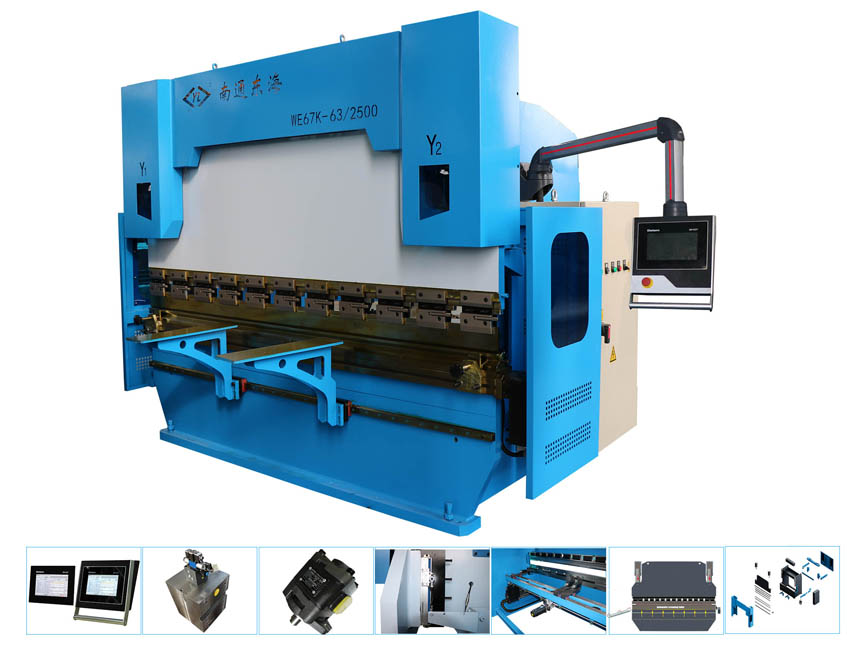

Main components

CNC press brake, hydraulic press brake, plate bending machine, hydraulic bender, bending machine, electric-hydraulic synchronous, Y1-Y2-X axis
